SET-UP AND INSTALLATION MLC650 OPERATOR MANUAL
4-116
Published 08-12-19, Control # 224-13_v2

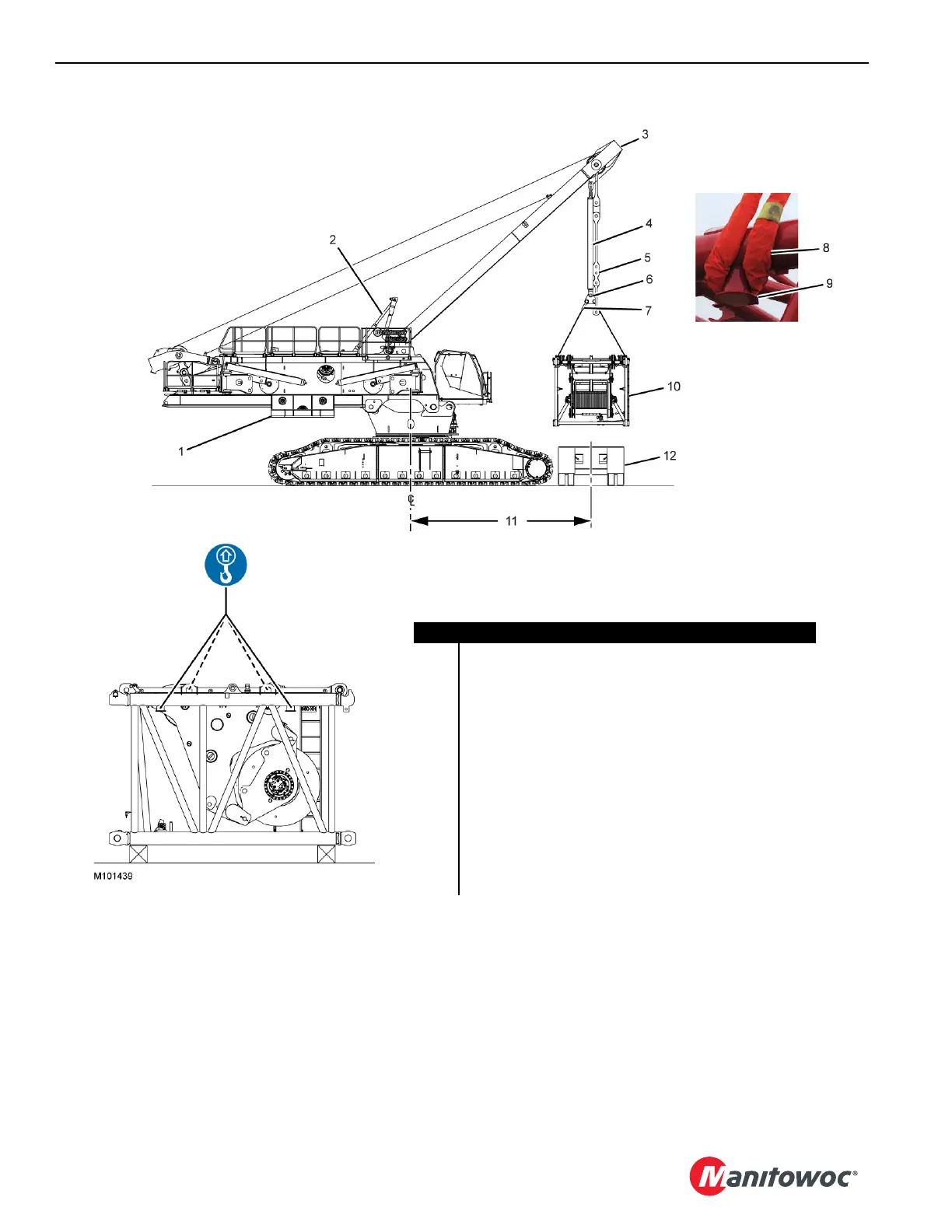

FIGURE 4-87
Item Description
1 Counterweight Tray Installed or Removed
2 Mast-Assist Arms
3 Mast in Operating Range
4 Self-Erect Cylinder
5Live Mast Straps
6 Rod End
72-SH 1 - Shackle 55 t (60.60 USt)
84-SL 4 - Sling - 3,80 m (12.50 ft) - 11 340 kg (25,000 lb)
9 Lifting Lug
10 4M Insert
11 See Liftcrane Mast Handling Chart
12 Trailer
(4)
