SET-UP AND INSTALLATION MLC650 OPERATOR MANUAL
4-118
Published 08-12-19, Control # 224-13_v2

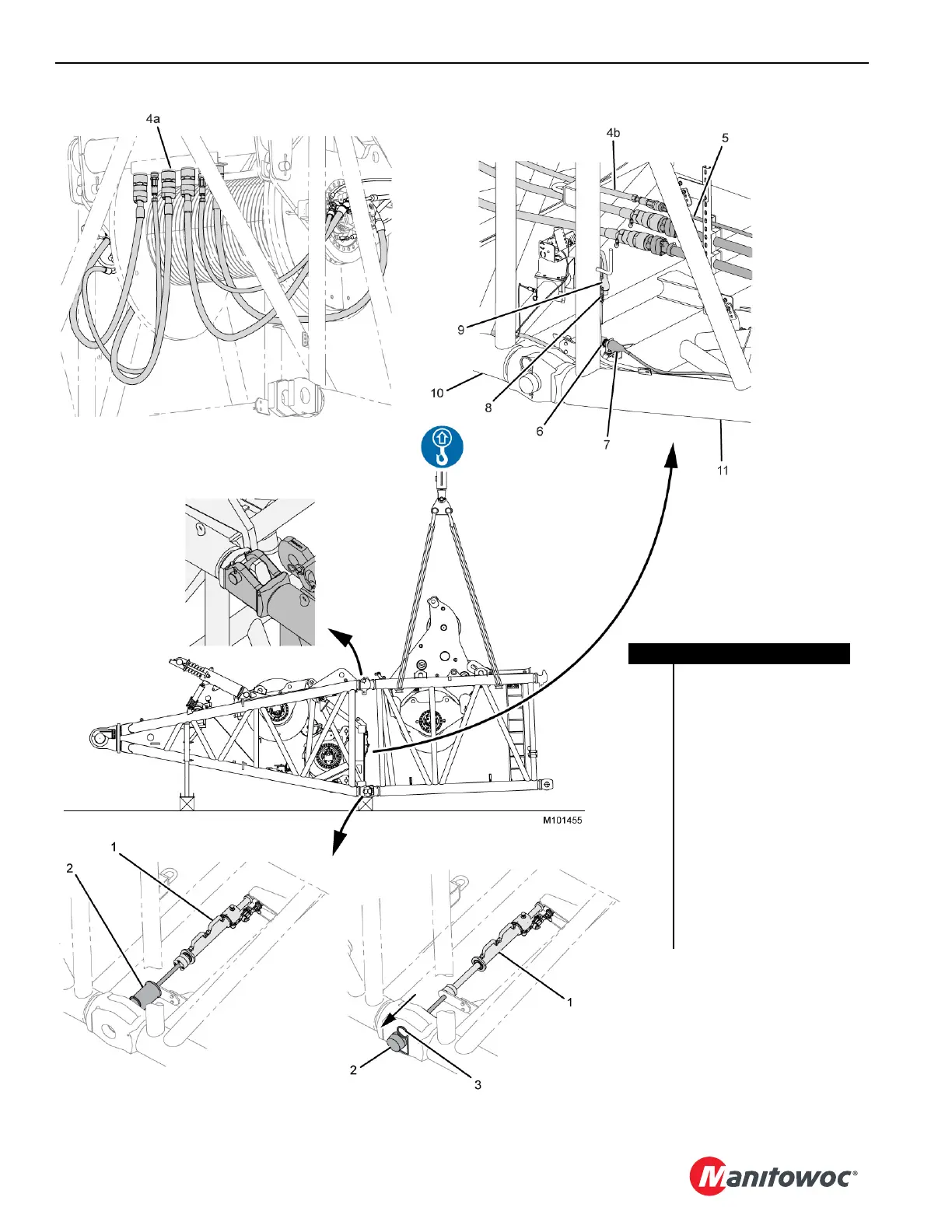

FIGURE 4-89
Item Description
1 Hand-Held Pin Puller
2Pin
3 Hair-Pin Cotter
4a Hydraulic Hoses (stored)
4b Hydraulic Hoses (working)
5 Hydraulic Piping (boom butt)
6 WBB3 Electric Cable
7 WBB2 Receptacle
8 WN15500T Electric Cable
(connects to WN145000)
9 WBB1 Electric Cable
(connects to WBR1)
10 4M Insert
11 Boom Butt
(4)
Stored Position
Working Position
