SET-UP AND INSTALLATION MLC650 OPERATOR MANUAL
4-120
Published 08-12-19, Control # 224-13_v2

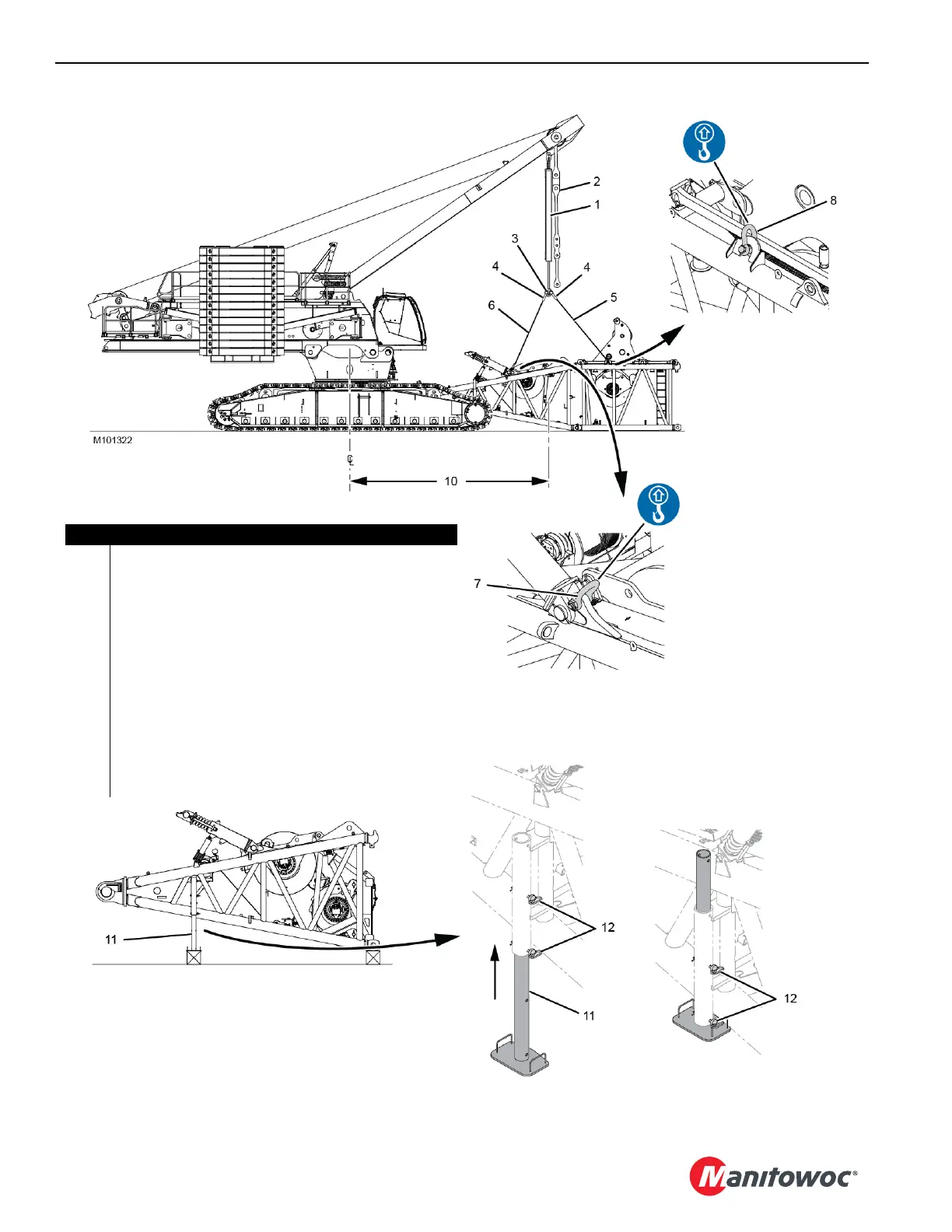

FIGURE 4-91
Item Description
1 Self-Erect Cylinder
2Live Mast Straps
3 Rod End
42-SH 1 - Shackles - 55 t (60.60 USt)
52-SL 1 - Slings - 3,30 m (10.83 ft) - 45 360 kg (100,000 lb)
62-SL 2 - Slings - 3,10 m (10.30 ft) - 18 144 kg (40,000 lb)
72-SH 3 - Shackles - 40 t (44 USt)
82-SH 2 - Shackles - 17 t (18.70 USt)
9Not Used
10 See Liftcrane Mast Handling Chart
11 Support Pedestal
12 Fixed Pins
Stored Position
Working Position
