SET-UP AND INSTALLATION MLC650 OPERATOR MANUAL
4-122
Published 08-12-19, Control # 224-13_v2

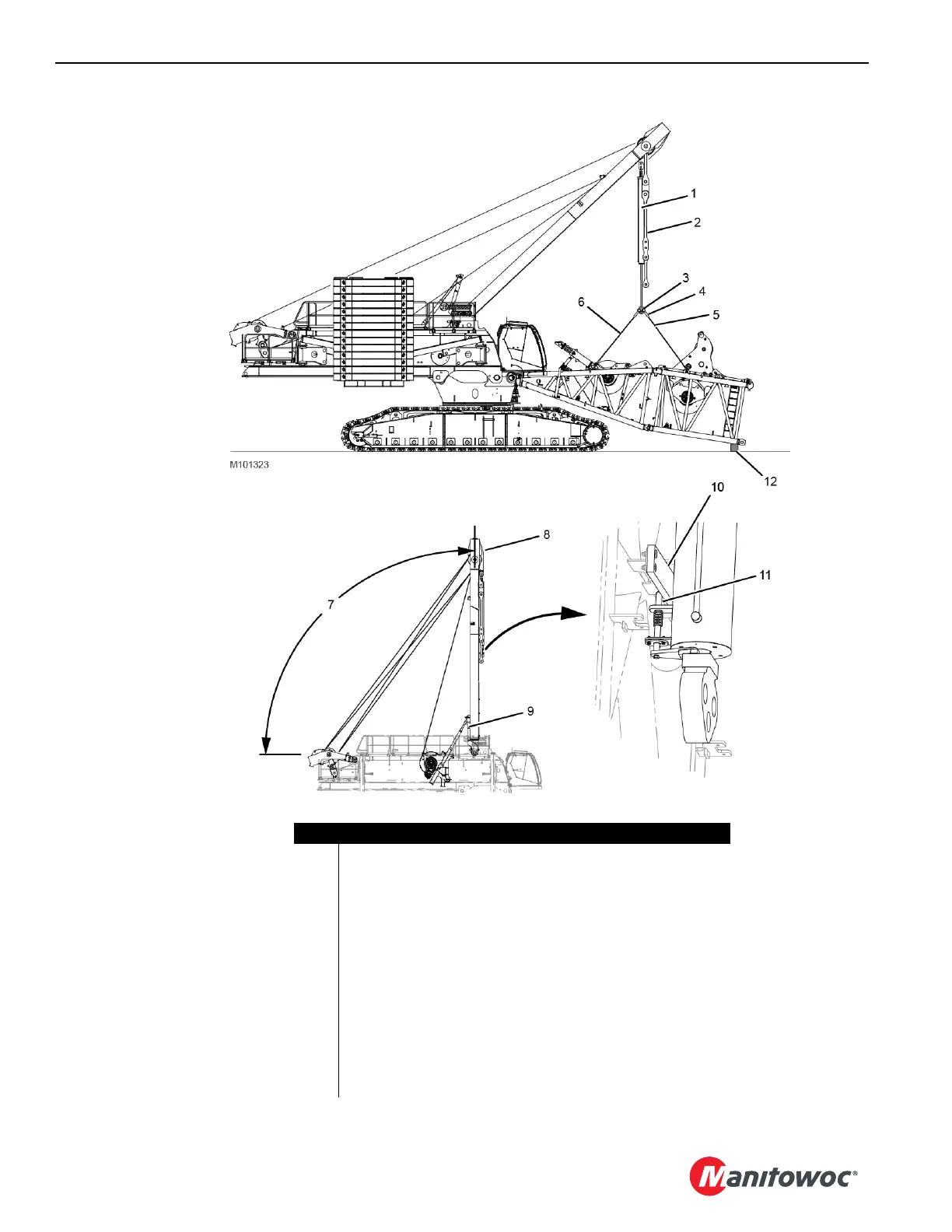

FIGURE 4-93
Item Description
1 Self-Erect Cylinder
2Live Mast Straps
3Rod End
42-SH 1 - Shackles - 55 t (60.60 USt)
52-SL 2 - Slings - 3,30 m (10.83 ft) - 45 360 kg (100,000 lb)
62-SL 2 - Slings - 3,10 m (10.30 ft) - 18 144 kg (40,000 lb)
7
85
° Mast Angle
8Live Mast
9 Mast Assist Arms
10 Retention Bracket
11 Pin
12 Blocking
