SET-UP AND INSTALLATION MLC650 OPERATOR MANUAL
4-128
Published 08-12-19, Control # 224-13_v2

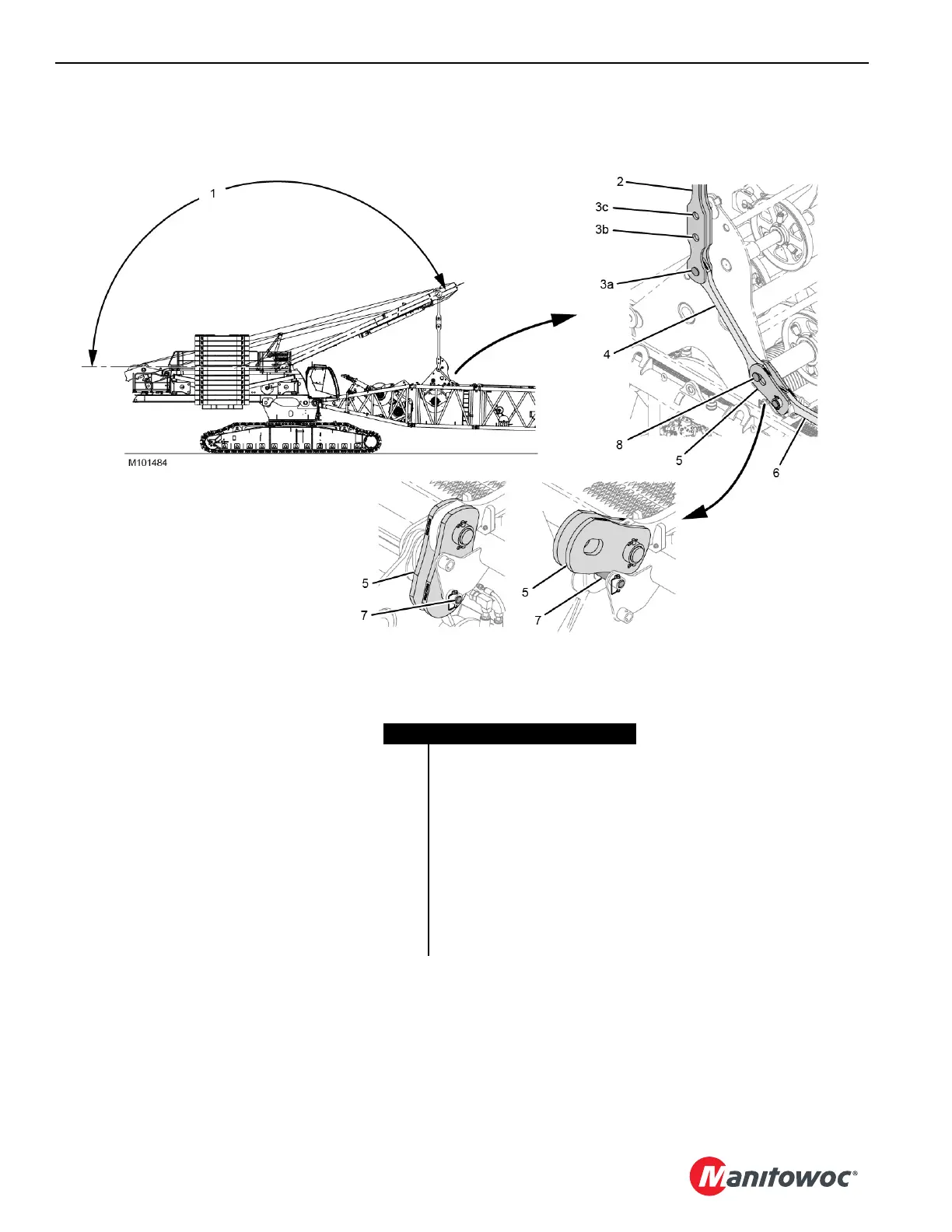

FIGURE 4-98
Item Description
1
158
° Mast Angle (maximum)
2 Live Mast Link
3a Hole “A”
3b Hole “B”
3c Hole “C”
4Strap
5Link
64M Strap
7 Pin and Safety Pin
8 Pin, Collar, Cotter Pin
View A
View B
View DView C
