SET-UP AND INSTALLATION MLC650 OPERATOR MANUAL

4-142

Published 08-12-19, Control # 224-13_v2

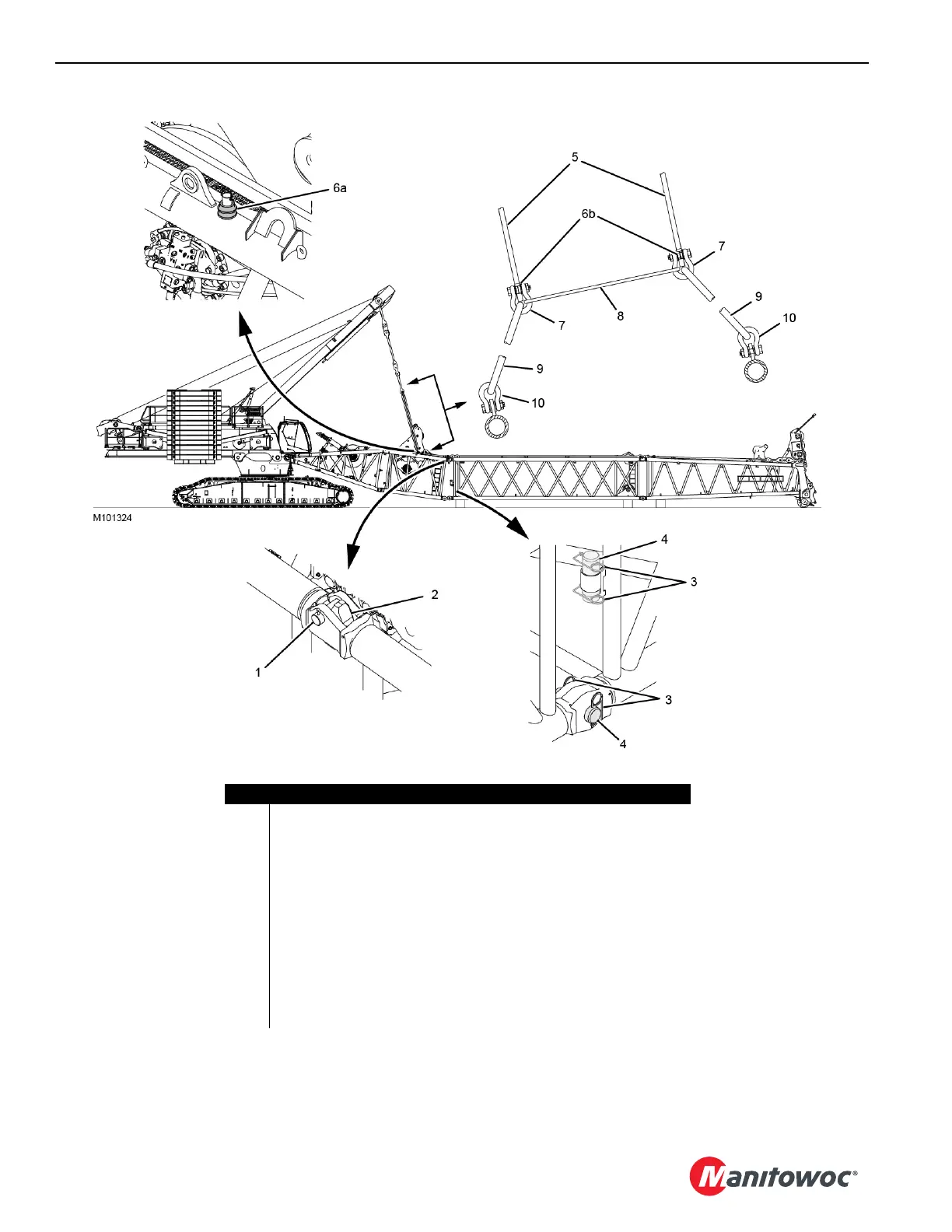

FIGURE 4-109

Item Description

1 Fixed Horizontal Pin (qty 2)

2 Hooked Connector

Safety Pin (qty 2)

4 Lower Connecting Pin (qty 2)

5 Live Mast Strap (qty 2)

6a Bushing (stored position) (qty 4)

6b Bushing (working position) (qty 4)

7 SH 3 Shackle – 40 t (44 USt) (qty 2)

8 SL 3 Spreader Sling – 1,60 m (5.25 ft), 9 072 kg (20,000 lb)

9 SL 1 Sling – 3,30 m (10.83 ft), 45 360 kg (100,000 lb) (qty 2)

10 SH 3 Shackle – 40 t (44 USt) (qty 2)
