SET-UP AND INSTALLATION MLC650 OPERATOR MANUAL

4-146

Published 08-12-19, Control # 224-13_v2

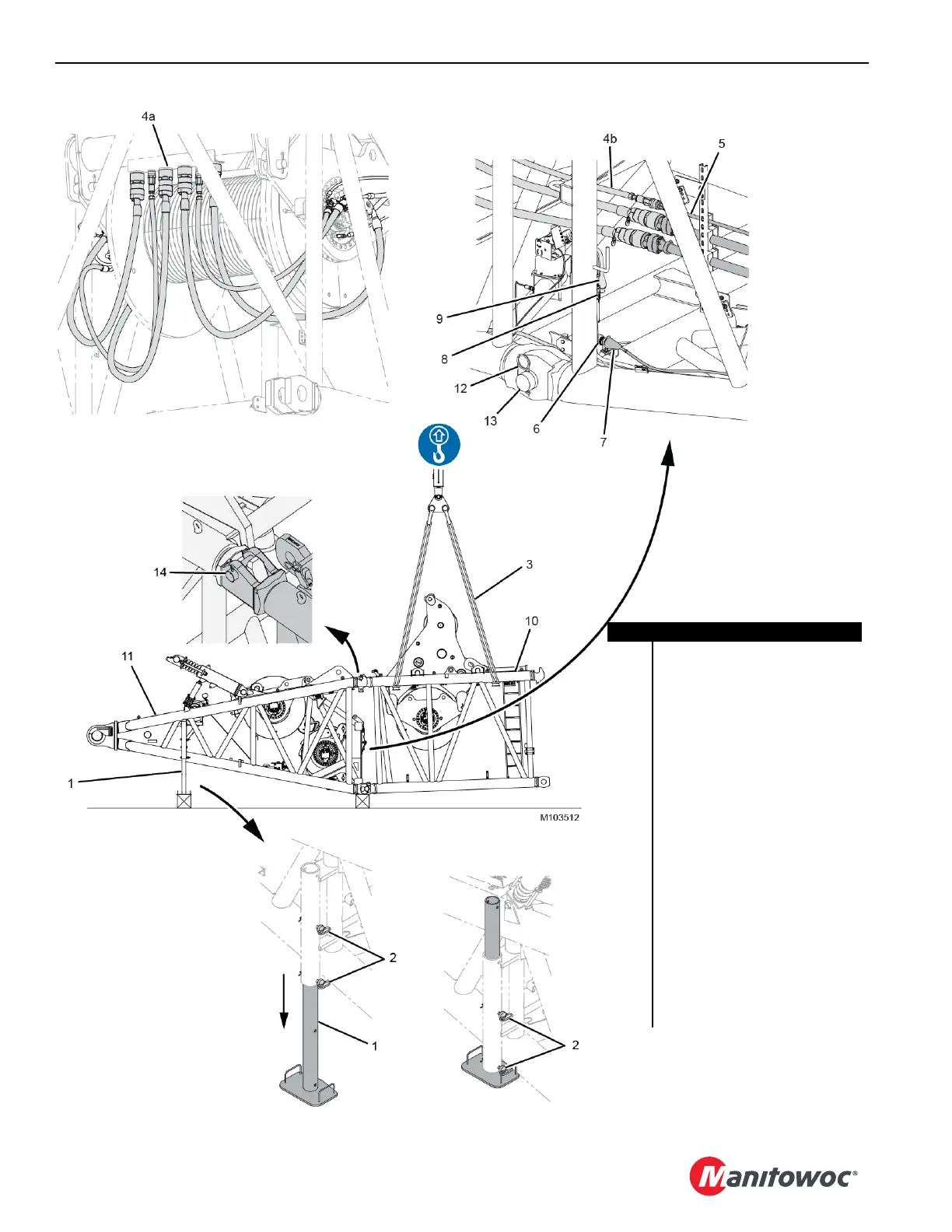

FIGURE 4-113

Item Description

1 Support Pedestal (qty 2)

2 Fixed Pin (qty 4)

3 SL 2 Sling – 3,10 m (10.30 ft),

18 144 kg (40,000 lb) (qty 4)

4a Hydraulic Hose (stored position)

(qty 6)

4b Hydraulic Hose (working position)

(qty 6)

5 Hydraulic Line

6 WBB3 Electric Cable

7 WBB2 Receptacle

8 WN15500T Electric Cable

(connects to WN145000)

9 WBB1 Electric Cable (connects to

WBR1)

10 4M Insert

11 Boom Butt

12 Safety Pin (qty 2)

13 Lower Connecting Pin (qty 2)

14 Upper Fixed Pin (qty 2)

WORKING POSITION

STORED POSITION

WORKING POSITION

STORED POSITION
