MLC650 OPERATOR MANUAL SET-UP AND INSTALLATION
4
b. Remove two counterweight boxes from the other
side of the tray.
c. Continue removing the counterweight boxes in an
alternating sequence, two boxes at a time.
d. Finally, remove one counterweight box from the
required side.
NOTE: A difference of no more than one counterweight
box must be maintained side-to-side during
disassembly.
The disassembly procedure is the same for all
counterweight arrangements.
5. Attach
SL 4 slings (3) around the lifting lugs on the
counterweight boxes. Two counterweight boxes may be
lifted at one time.
6. Lift the counterweight boxes off the counterweight tray
and place them on a trailer for shipping.
7. Disconnect the
SL 4 slings.
8. Repeat steps 5 – 7 until all of the counterweight boxes
are removed.
9. Securely attach the counterweight box to the trailer with
tie-downs.

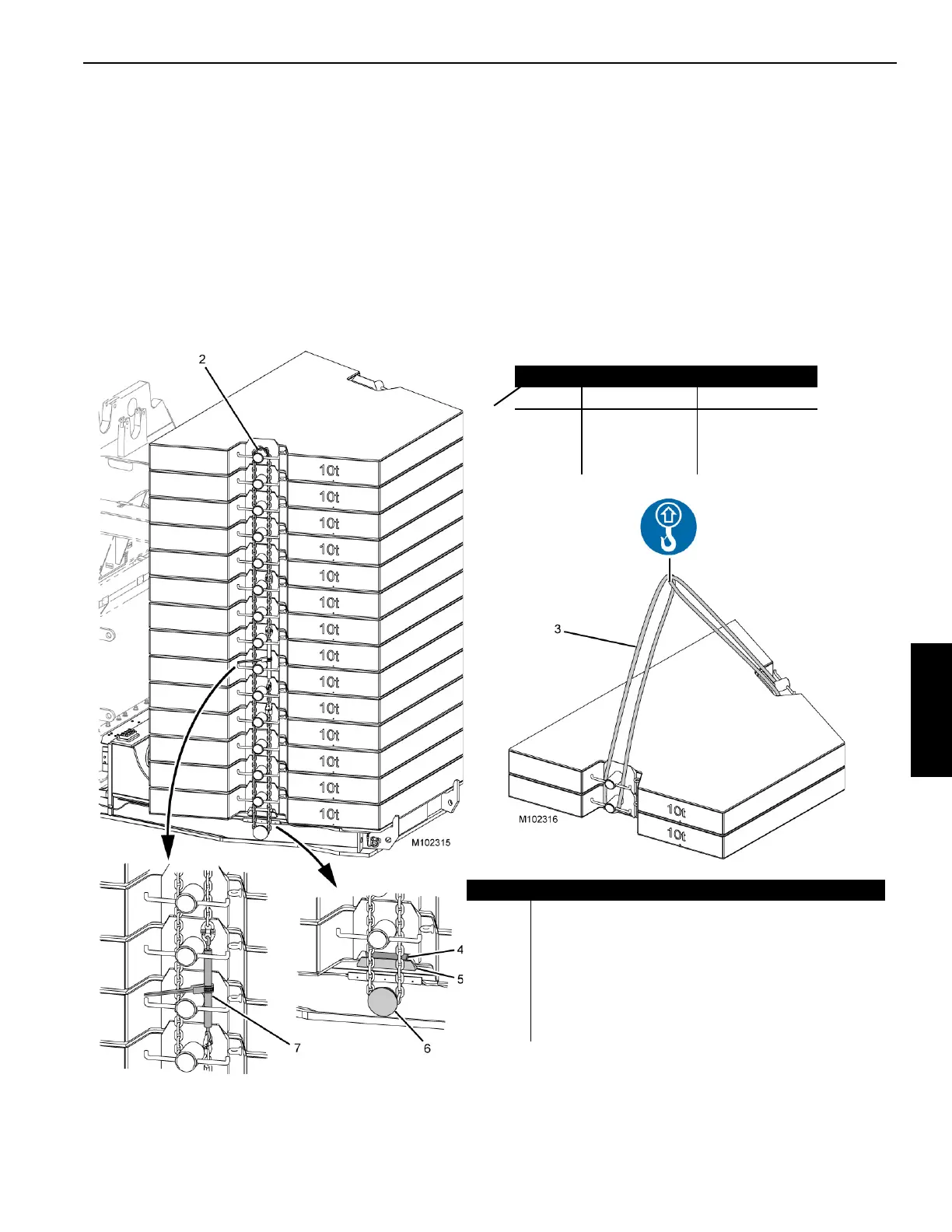

FIGURE 4-118
Series Item 2 Quantity
Each Side Total
19 18
214 28
319 38
Item Description
1 Counterweight Arrangements
2 Counterweight Chain Assembly
3 SL 4 Sling – 3,80 m (12.50 ft), 11 340 kg (25,000 lb) (qty 2)
4 Counterweight Box Alignment Lug
5 Counterweight Tray Alignment Lug
6 Counterweight Tray Lug
7 Turnbuckle
Counterweight Arrangement
Series 2 Shown
