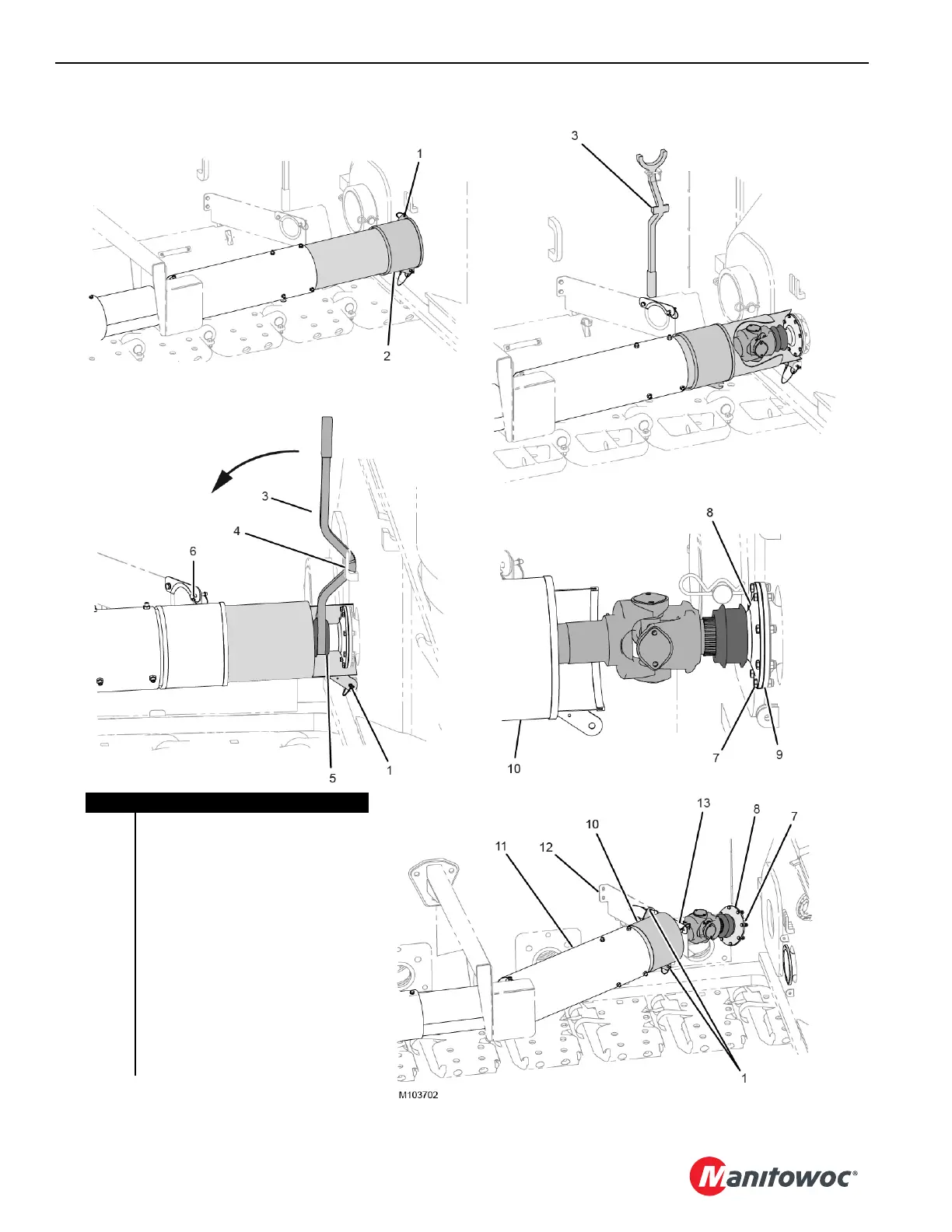

FIGURE 4-124
Item Description
1 Locking Pin (qty 2)
2 Outer Drive Shaft Guard
3 Drive Shaft Lever
4 Forked Bracket
5Collar
6 Locking Pin
7 Lock Nut and Bolt (qty 8)
8 Drive Shaft Flange
9 Companion Flange
10 Inner Drive Shaft Guard
11 Drive Shaft Guard
12 Storage Bracket
13 Storage Latch
View A
View B
View C
View E
View D
