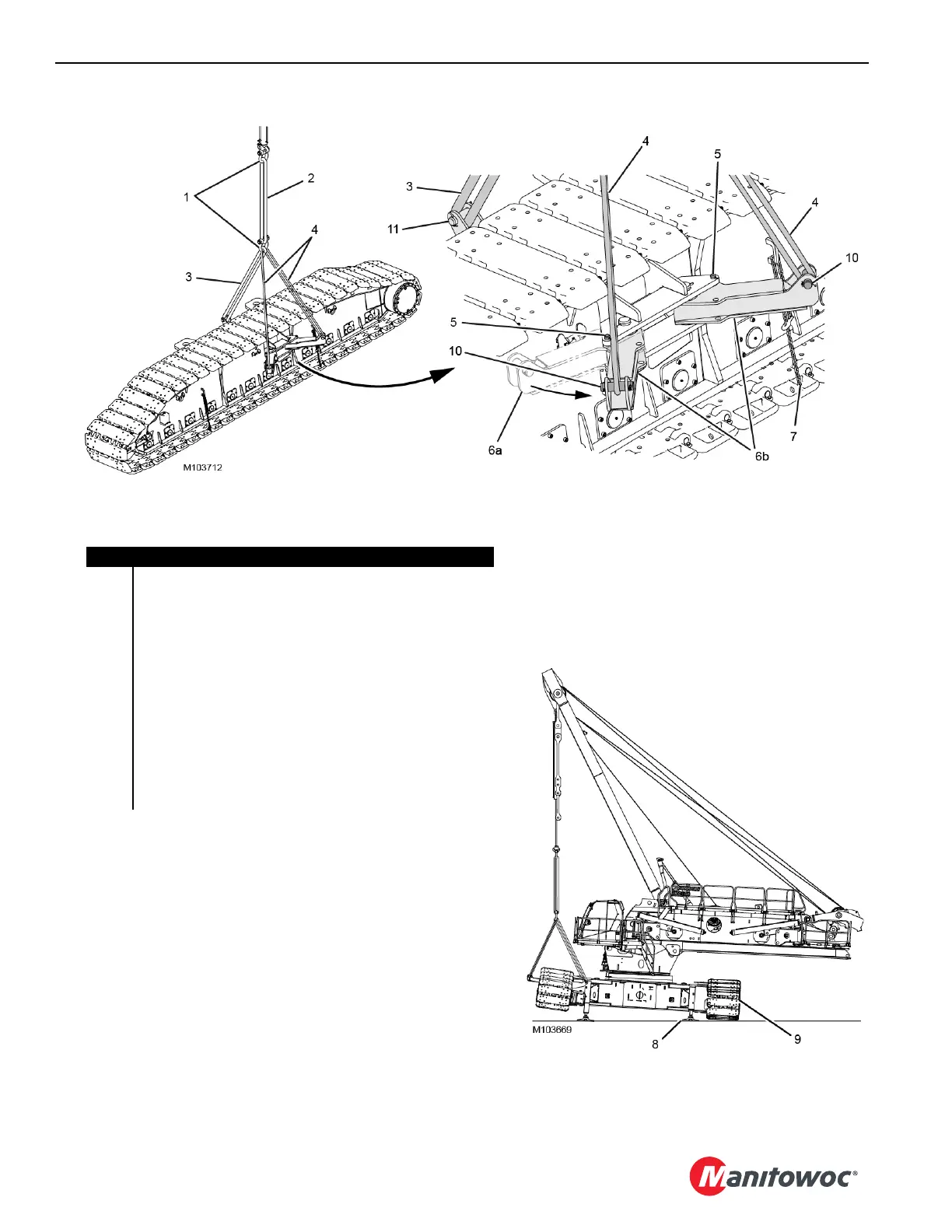

FIGURE 4-126
Item Description
1 SH 1 Shackle – 55 t (60.60 USt) (qty 2)
2 SL 5 Sling – 2,60 m (8.50 ft), 56 700 kg (125,000 lb)
3 SL 1 Sling – 3,30 m (10.83 ft), 45 360 kg (100,000 lb)
4 SL 2 Sling – 3,10 m (10.30 ft), 18 144 kg (40,000 lb) (qty 2)
5 Safety Pin and Pin (qty 2)
6a Crawler Lifting Bracket (stored position) (qty 2)
6b Crawler Lifting Bracket (working position) (qty 2)
7 Chain Sling (qty 4)
8 Carbody Jacking Cylinder (qty 2)
9Crawler
10 Cotter Pin and Pin (qty 2)
11 Cotter Pin and Pin
View B
View A
