SET-UP AND INSTALLATION MLC650 OPERATOR MANUAL
4-168
Published 08-12-19, Control # 224-13_v2

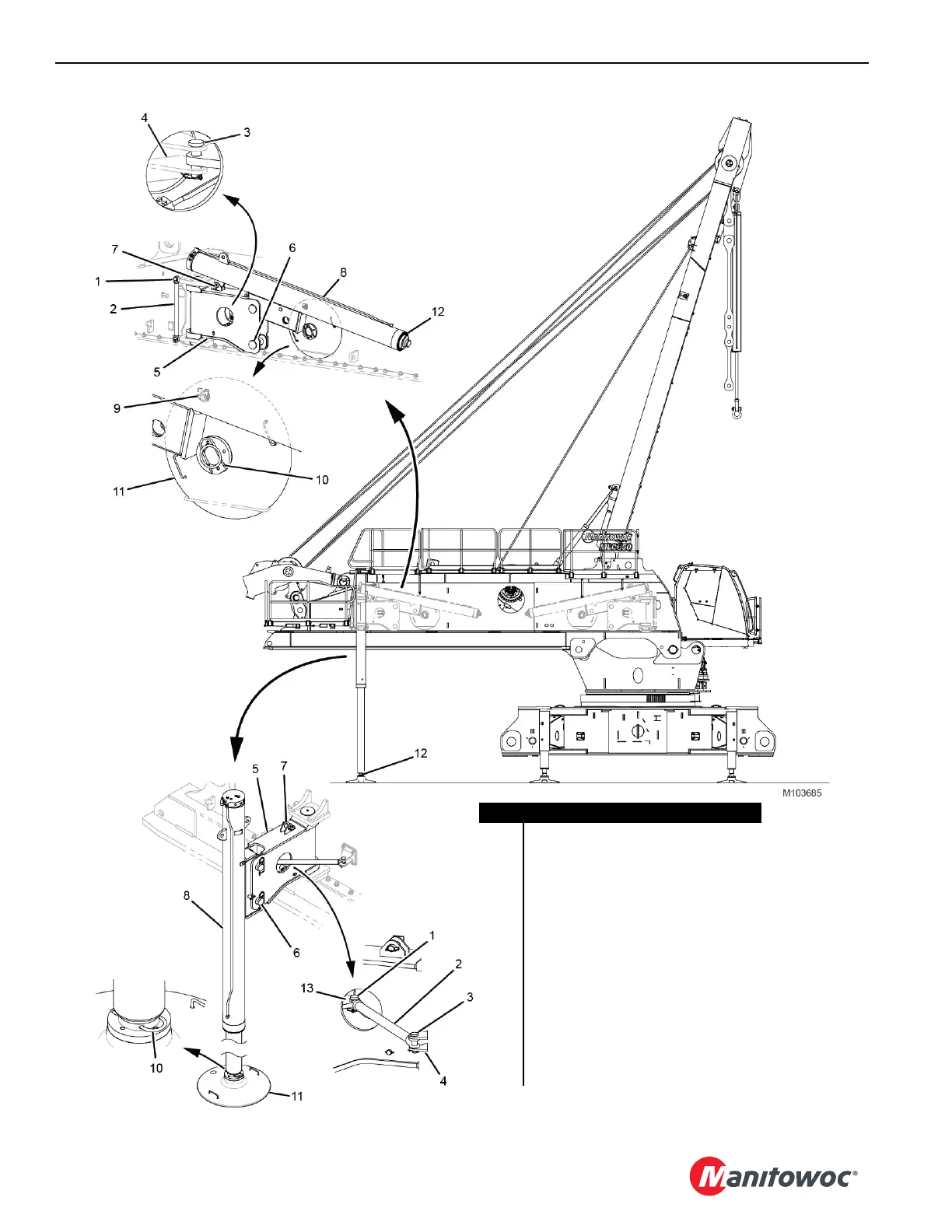

FIGURE 4-130
Item Description
1Clevis Pin (qty 4)
2 Outrigger Strut (qty 4)
3Clevis Pin (qty 4)
4 Rotating Bed Lug (qty 4)
5 Outrigger Beam Assembly (qty 4)
6 Jacking Cylinder Pin (qty 4)
7 Jacking Cylinder Pin (qty 4)
8 Rotating Bed Jacking Cylinder (qty 4)
9 Outrigger Pad Locking Pin (qty 4)
10 U-shaped Locking Pin (qty 4)
11 Outrigger Pad (qty 4)
12 Rod End (qty 4)
13 Outrigger Assembly Lug (qty 4)
STORED POSITION
