SET-UP AND INSTALLATION MLC650 OPERATOR MANUAL
4-210
Published 08-12-19, Control # 224-13_v2

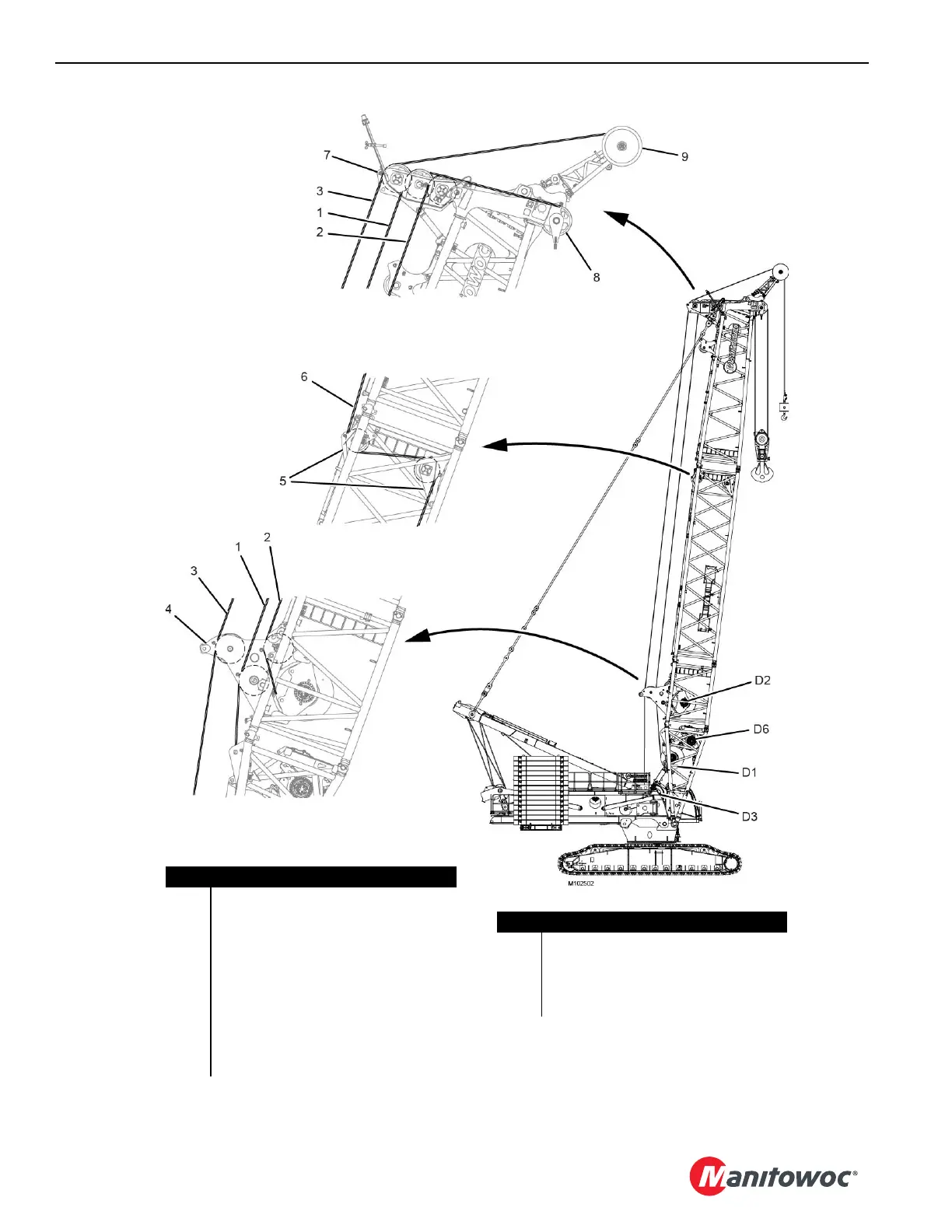

FIGURE 4-164
Item Description
1 Wire Rope from Drum 1
2 Wire Rope from Drum 2
3 Wire Rope from Drum 3
4 Wire Rope Guide on 4 m Insert
5 Wire Rope Guides in 12 m Insert
6 Wire Rope from Drum 6
7 Wire Rope Guide on Boom Top
8 Lower Boom Point
9 Upper Boom Point
Item Description
D1 Drum 1 (Main Hoist)
D2 Drum 2 (Main Hoist Optional)
D3 Drum 3 (Whip Hoist)
D6 Drum 6 (Luffing Hoist)
