SAFETY INFORMATION MLC650 OPERATOR MANUAL

2-22

Published 08-12-19, Control # 224-13

If Boom is off Ground

and Supported by Straps...

and there is No Blocking

Under Boom Sections...

Boom will COLLAPSE when

Lower Pins are Removed!

View A

WRONG – DANGEROUS!

and Handling Slings

are Slack...

and there is No Blocking

Under Boom Sections...

View C

RIGHT – SAFE

Handling Slings Taut and

Supporting Boom...

...before Removing

Bottom Pins!

Boom Sections Lowered and Securely Blocked...

View B

WRONG – DANGEROUS!

If Boom Point is

on Ground...

Straps Fully Lowered onto Supports...

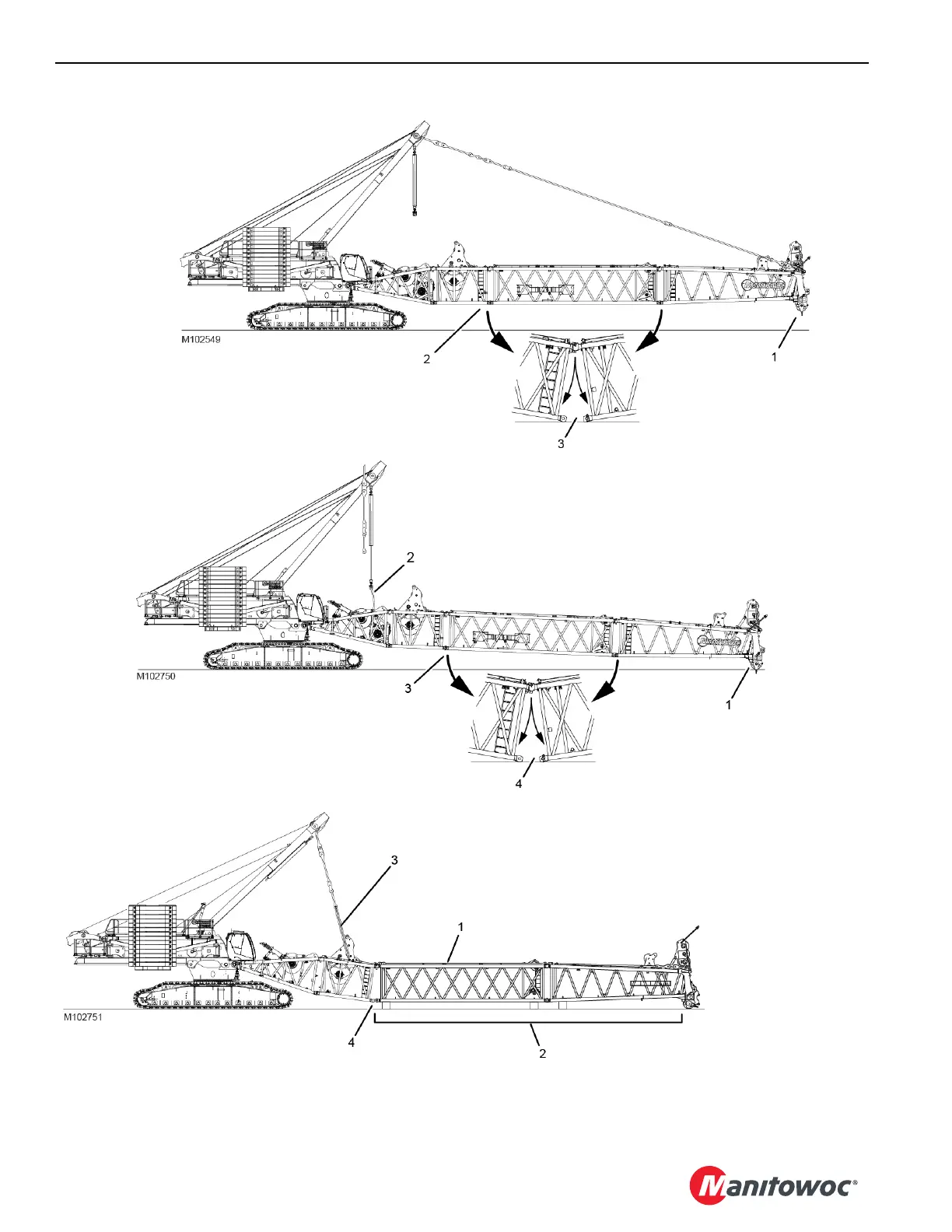

Figure 2-4. Boom Disassembly

Boom will COLLAPSE when

Lower Pins are Removed!
