7 Additional settings
7.3 Display units
By adapting the display units, physical variables such as the position, speed and
acceleration can be displayed in the MetronixServoCommander
®
program as required by
your specific application. The "Display units" window can be opened by way of
Options/Display units. The mode Standard values has already been explained insection
4.4.2 Configuration of the display unit on page 45. The following sections provide
information about the modes User-defined and Direct input.
Display units: representation in MetronixServoCommander
®
The display units only affect the representation in MetronixServoCommander
®
. They
have no effect on the scaling of data that are transferred via a fieldbus (e.g. CANopen
Factor Group).
7.3.1 User-defined display units
All user-defined units (User-defined) are displayed with [..].
The scaling of the user-defined units per revolution can be defined in the field Feed
constant on the tab Display units. In addition, the input fields Time base and Time base
acceleration are available.

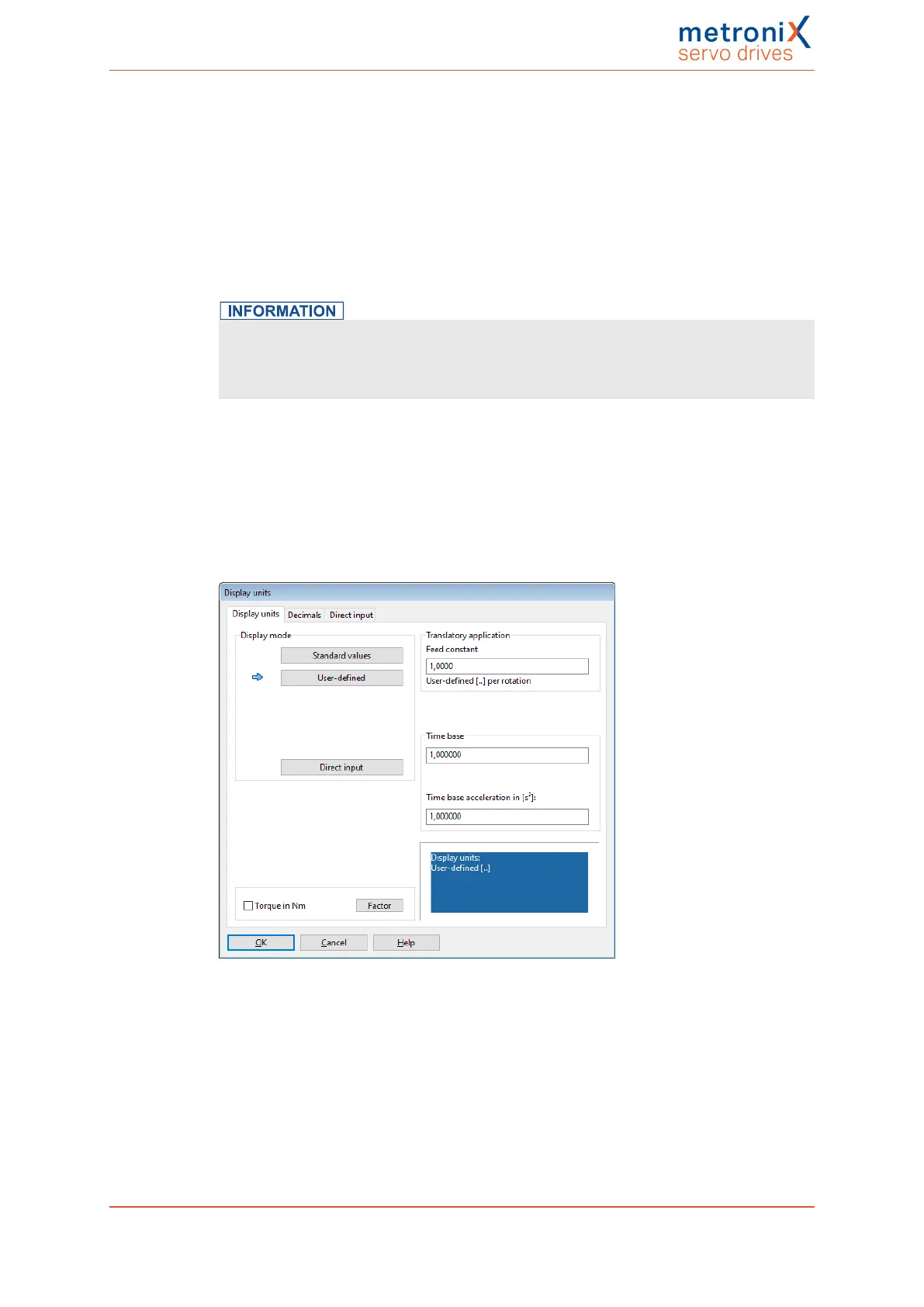

Figure 75: "Display units (user-defined)" window
Use the fields Time base and Time base acceleration to define your own speed and
acceleration units.
Example: You have a drive with 20 mm per revolution, without a transmission. You would
like to enter the speed in mm/min or the acceleration in (mm/min)/s. Enter 20 into the
"Feed constant" field and 60 into the "Time base speed" field (60 seconds = 1 minute).
Product manual BL 4000-C Page 126 of 298
