6 Applications
6.1.6 Methods 7 and 11: reference switch and index pulse
evaluation
Like methods 23 and 27, methods 7 and 11 use the reference switch. In addition, however,
the home position refers to the first index pulse in the negative or positive direction as
seen from the reference switch.

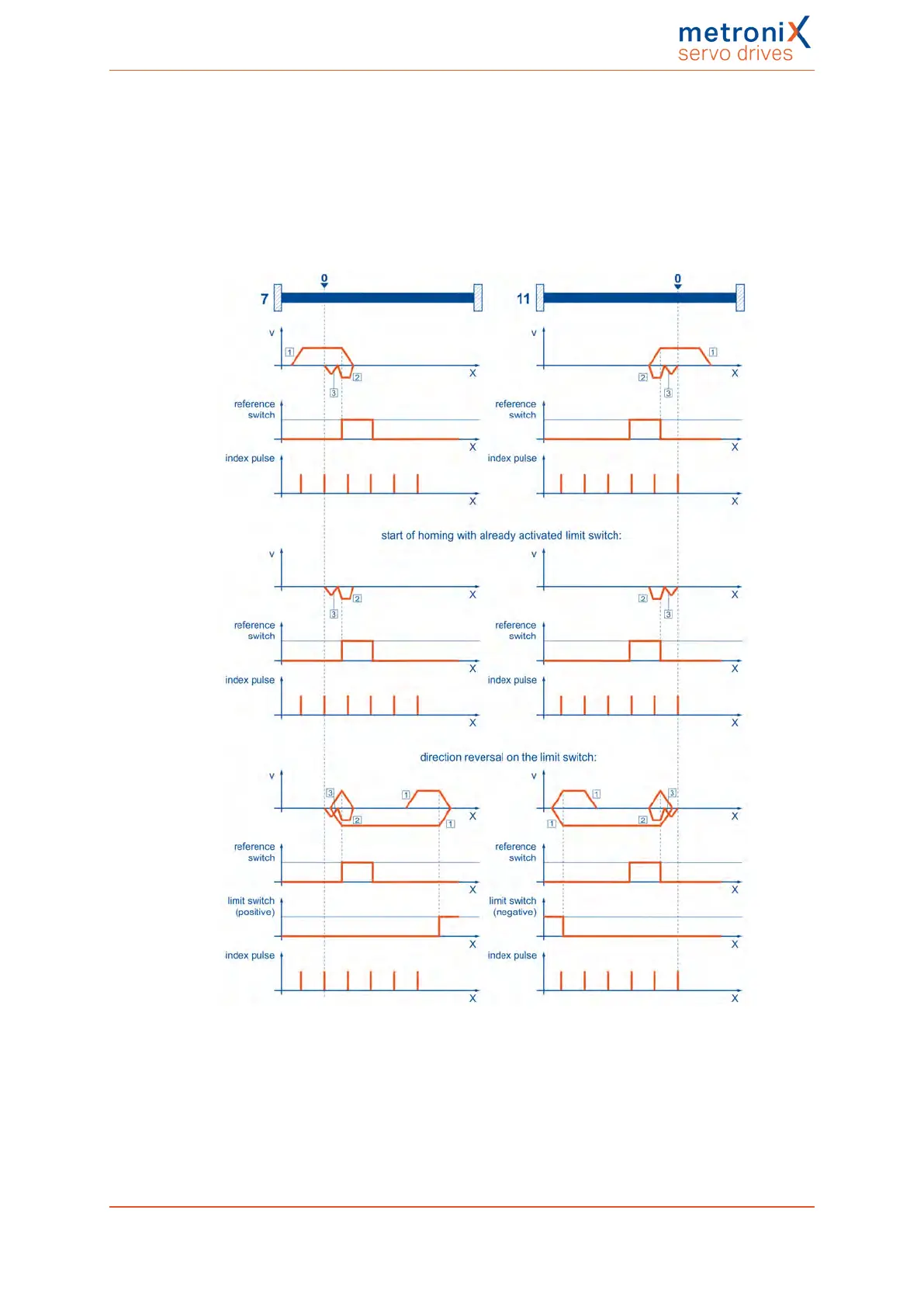

Figure 37: Homing run to the reference switch with index pulse evaluation
Product manual BL 4000-C Page 77 of 298
