5 Enabling the servo drive and selecting the set values
5.3.1 Specifying the setpoints (speed and torque values)
In the Setpoint selectors window in Selector A for Fixed value 1, click "..." to specify the
setpoints.
You can also access the menu via Operating mode/Setpoint value (speed).

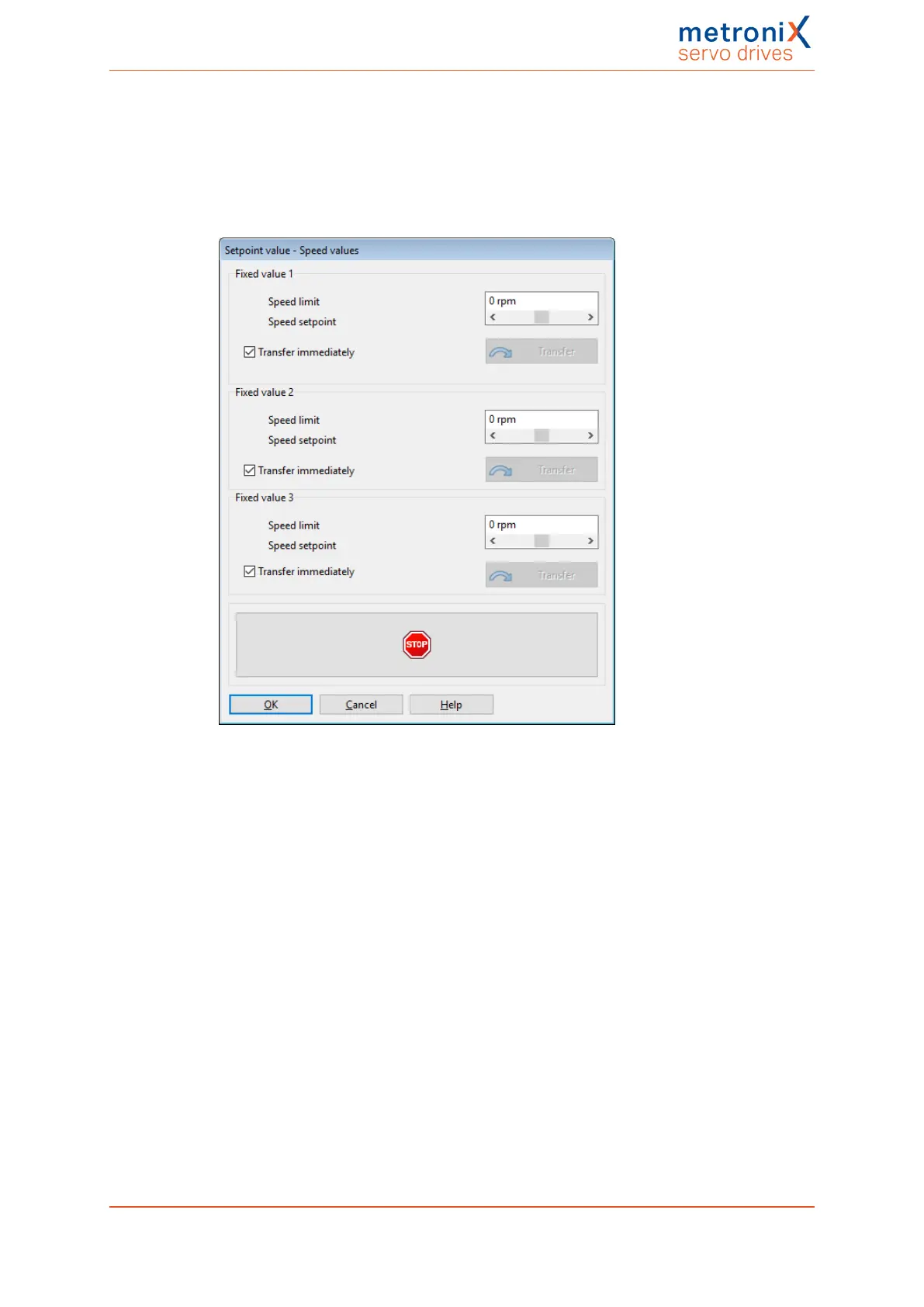

Figure 28: "Setpoint value (speed)" window
Here, you can enter numerical values for the setpoints and limitation values. If you want to
cancel incorrect inputs immediately, click the red STOP symbol. The setpoint will be set
to 0 and transferred immediately.
Product manual BL 4000-C Page 70 of 298
