13 Electrical installation
13.4 Connector: motor [X6]
Configuration on the device [X6]
Weidmüller SL5.08HC/09/90G 3.2SN BK BX
Mating connector [X6]
Weidmüller BLF DB08HFC0EC180 SN BK BX
Pin assignment: motor with a motor temperature sensor

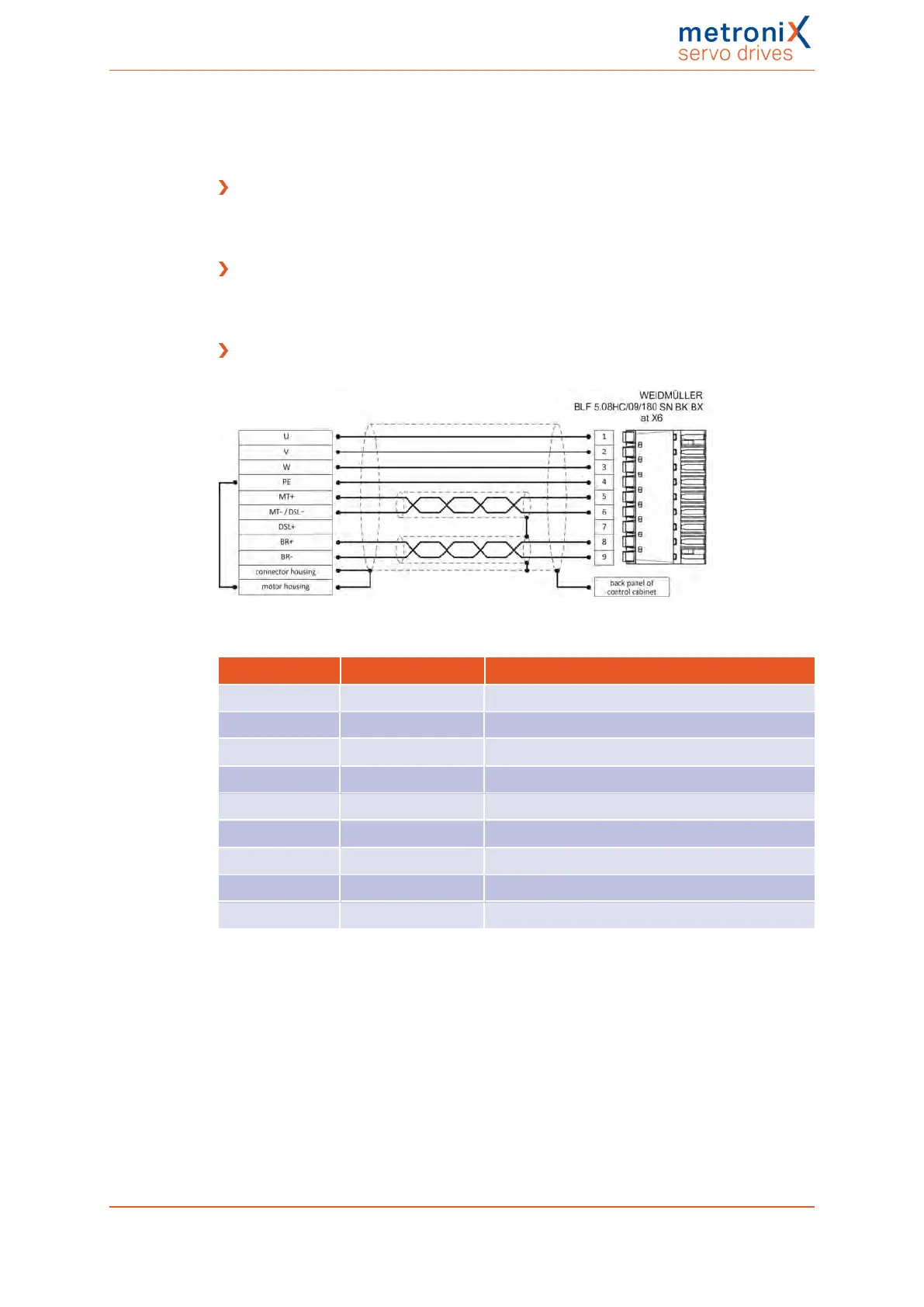

Figure 134: Pin assignment: motor connector (motor temperature sensor) [X6]
Pin Name Specification
1 U Motor phase U
2 V Motor phase V
3 W Motor phase W
4 PE Protective earth conductor of the motor
5 MT+ Motor temperature sensor +
6 MT-/ DSL- Motor temperature sensor -
7 DSL+
8 BR+ Holding brake +
9 BR- Holding brake -
Product manual BL 4000-C Page 241 of 298
