7 Additional settings
7.9 Position triggers
The menu can be found under Parameters/I/Os/Position trigger.
The position triggers can be used to transfer information concerning the logic states of the
position triggers and rotor position triggers to the digital outputs. 4 position triggers can be
configured (vertical lines).

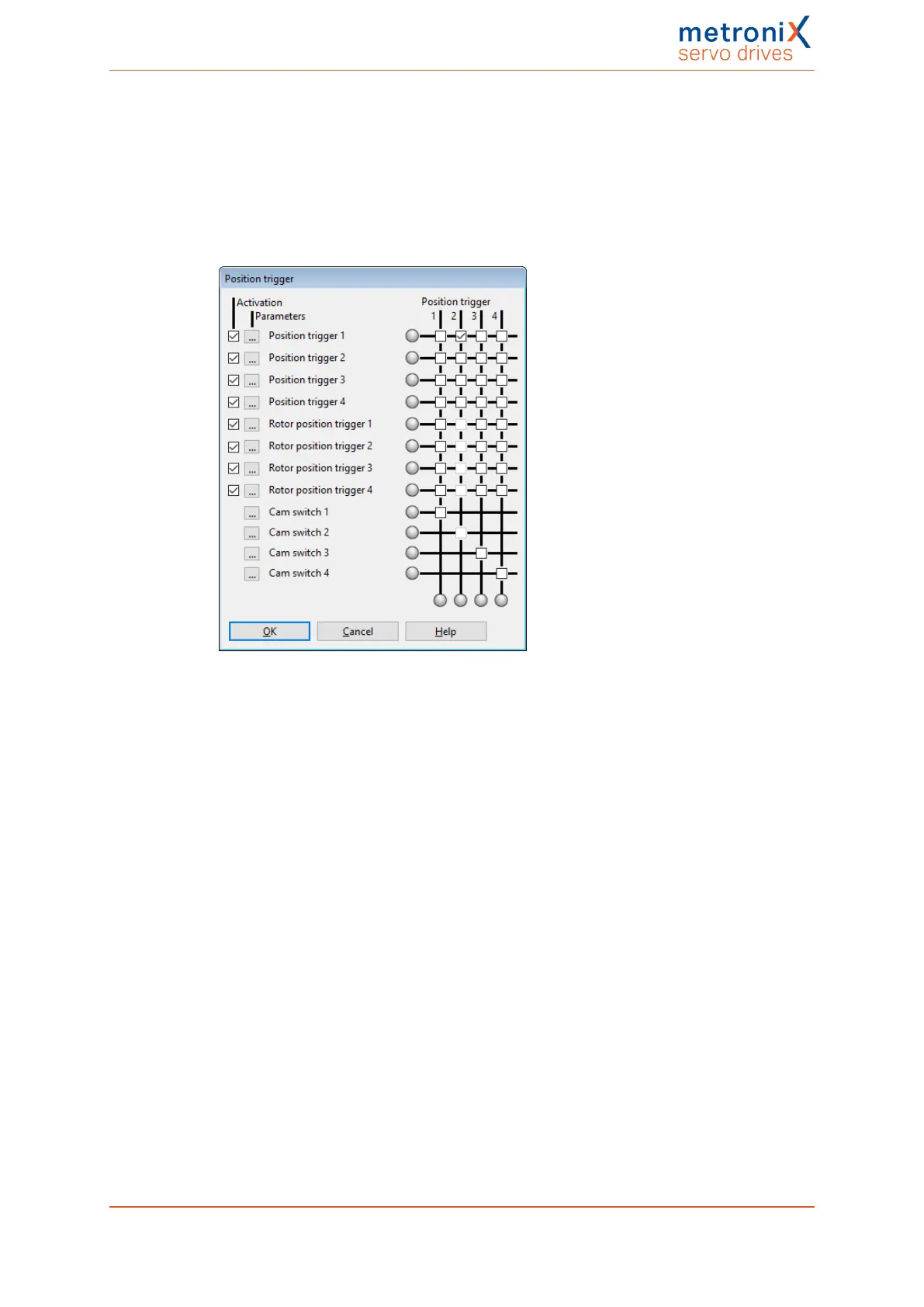

Figure 106: "Position trigger" window
The following sources are available (horizontal lines):
n 4 position triggers (see section 7.9.1 Position triggers on page 180)
n 4 rotor position triggers (see section 7.9.2 Rotor position triggers on page 181)
The function of a digital output in the "Digital outputs" menu must be set to "Position
trigger 1…4" to ensure that the information can be transferred to a digital output (see
section 7.8.1 Configuration of the digital outputs on page 173).
In order to assign a source to a position trigger output, tick the associated checkboxes in
the corresponding column. It is possible to assign several position triggers or rotor position
triggers to a specific position trigger output. The logic information will then be combined by
way of an OR function.
Product manual BL 4000-C Page 178 of 298
