7 Additional settings
7.6.3.2 Determining the commutation position in the case of linear
motors
In the case of linear motors with angle encoders without commutation signals, the method
for the automatic determination of the commutation position must be applied. This can be
specified in the window Parameters/Application parameters/General configuration on the
Extension tab:

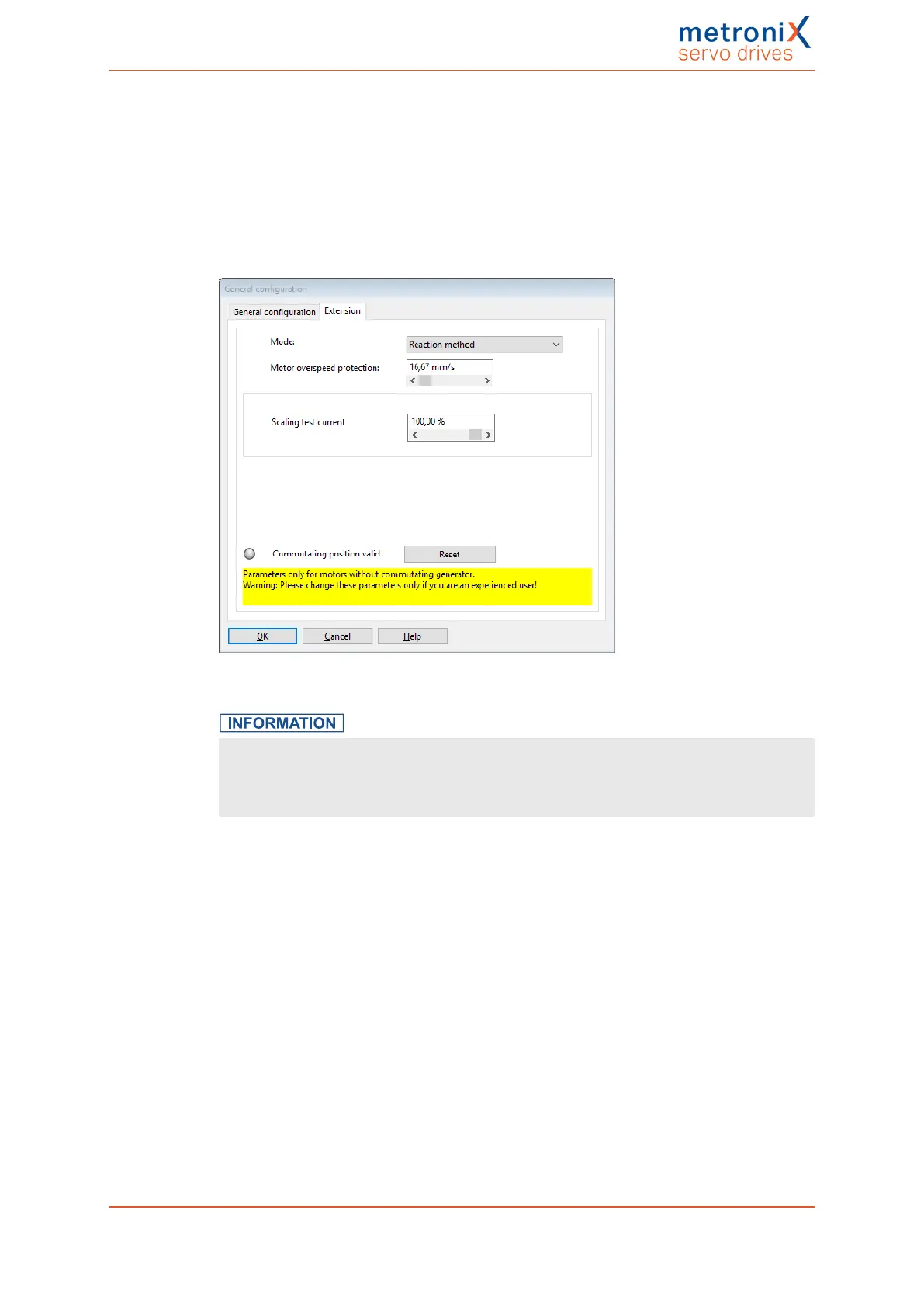

Figure 93: "General configuration" window
Configuration of the parameter
The configuration of the parameter Motor overspeed protection for the commutation
position determination process is not the same as the configuration of the overspeed
protection function that can be accessed via the menu Parameters/Safety parameters.
Product manual BL 4000-C Page 158 of 298
