13 Electrical installation
Pin assignment: motor with Hiperface DSL

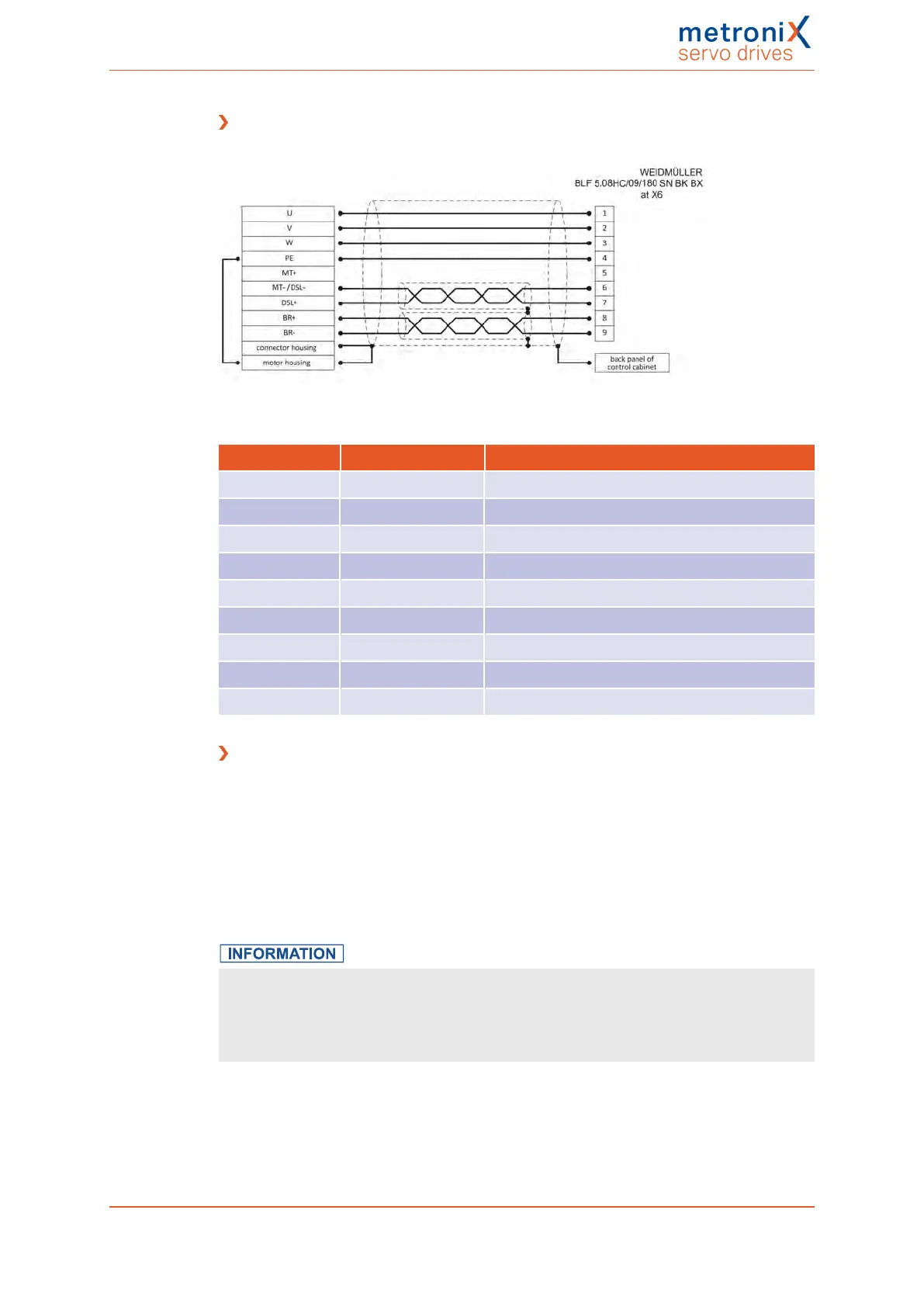

Figure 135: Pin assignment: motor connector (Hiperface DSL) [X6]
Pin Name Specification
1 U Motor phase U
2 V Motor phase V
3 W Motor phase W
4 PE Protective earth conductor of the motor
5 MT+
6 MT-/ DSL- Hiperface DSL -
7 DSL+ Hiperface DSL +
8 BR+ Holding brake +
9 BR- Holding brake -
Cable type and configuration [X6]
The cable names that are stated refer to cables made by Lapp. However, it is also
possible to use comparable cables from other manufacturers, for example Lütze or
Helukabel.
LAPP KABEL ÖLFLEX SERVO 719 CY; 4 G 1.5 + 2 x (2 x 0.75);
For highly flexible use in drag chains:
LAPP KABEL ÖLFLEX SERVO FD 796 CP; 4 G 1.5 + 2 x (2 x 0.75)
Comply with the required minimum cross-section
The minimum cross-section of the lines U, V, W and PE must be 1.5 mm
2
.
Comply also with the maximum permissible cable capacity as per section 12.3 Motor
connector [X6] on page 217.
Product manual BL 4000-C Page 242 of 298
