13 Electrical installation
Configuration on the device [X9]
Weidmüller SL5.08HC/09/90G 3.2SN BK BX
Mating connector [X9]
Weidmüller BLF DB08HC/0E/180 SN BK BX
Pin assignment [X9]

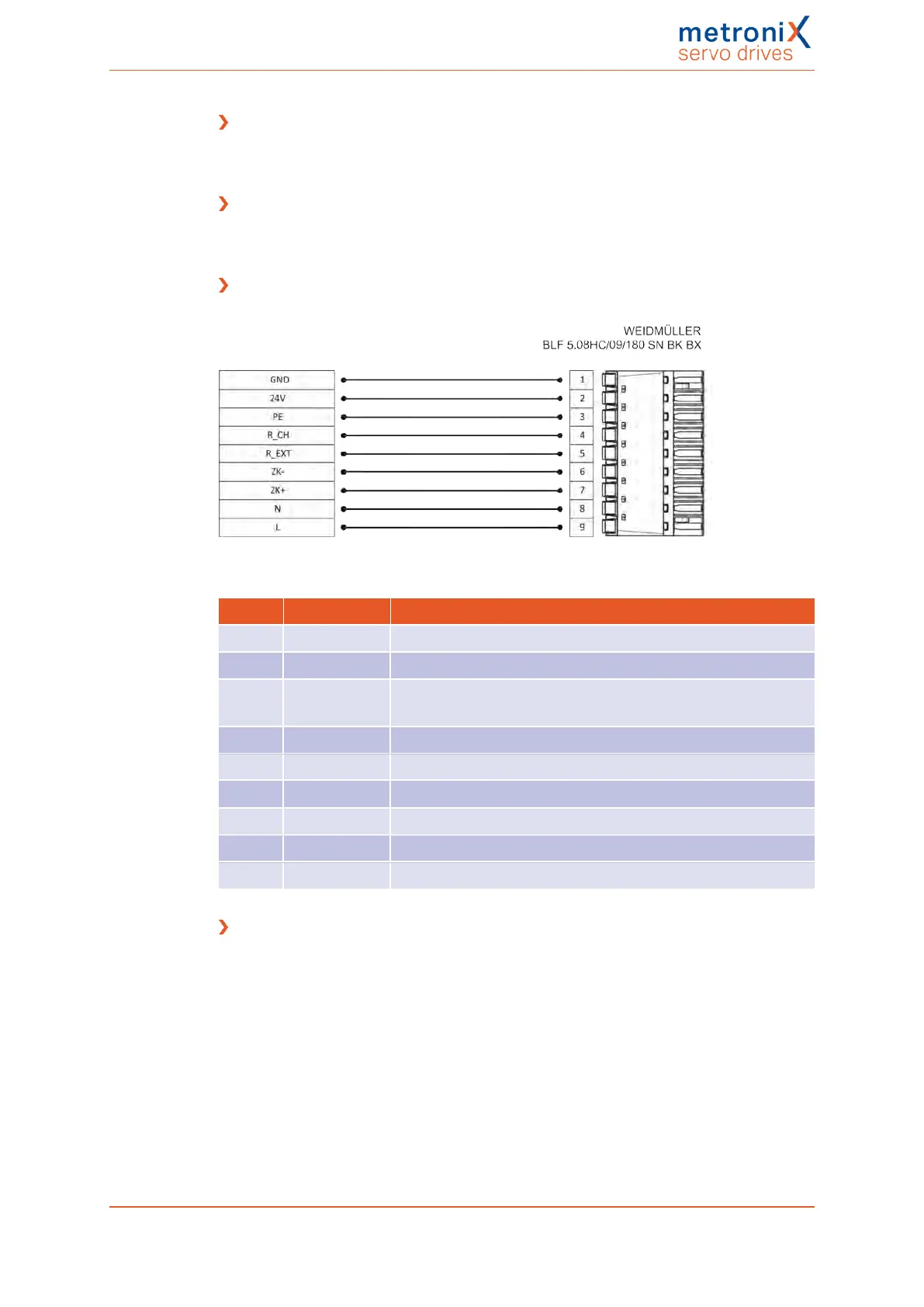

Figure 133: Pin assignment: power supply connector [X9]
Pin Name Specification
1 GND Supply voltage reference potential
2 24V Supply voltage for the control module and holding brake
3 PE Connection of the protective earth (ground) conductor of the
mains power supply
4 R_CH Braking resistor connection
5 R_EXT Braking resistor connection
6 ZK- Pos. DC bus voltage
7 ZK+ Neg. DC bus voltage
8 N Neutral conductor
9 L Phase conductor/mains phase
Cable type and configuration [X9]
The cable names that are stated refer to cables made by Lapp. They have proved to be
reliable and are successfully used in many applications. However, it is also possible to
use comparable cables from other manufacturers, for example Lütze or Helukabel.
LAPP KABEL ÖLFLEX CLASSIC 110; 3 x 1.5 mm²
Product manual BL 4000-C Page 240 of 298
