13 Electrical installation
Pin assignment: incremental encoder with a serial interface

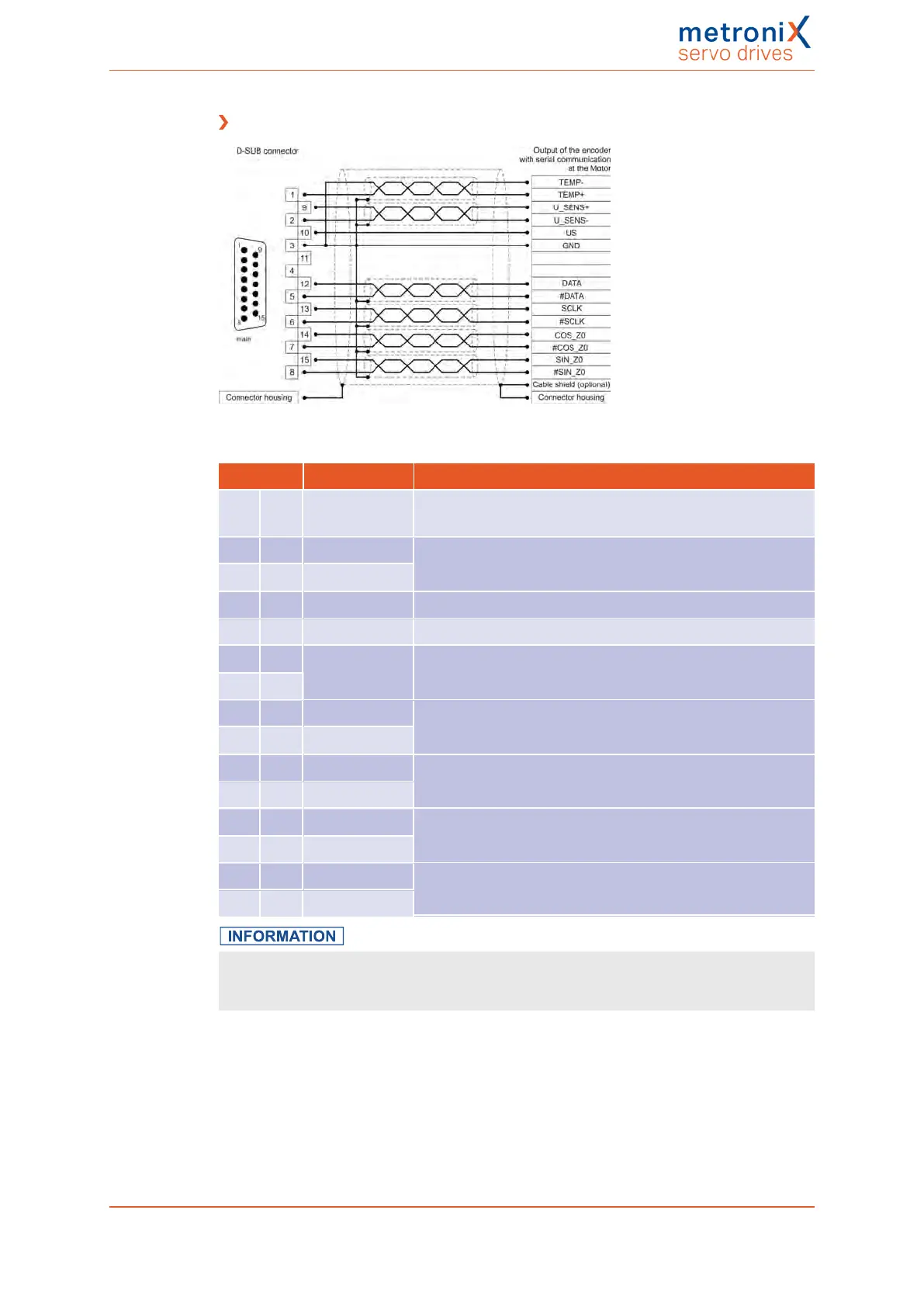

Figure 139: Pin assignment: incremental encoder with a serial interface [X2B]
Pin Name Specification
1 MT+ Motor temperature sensor, normally closed contact, PTC,
NTC, KTY
9 U_SENS+ Sensor cables for the encoder supply. In case of long
cables, connect to US/GND at the motor end.
2 U_SENS-
10 US Operating voltage
3 GND Associated reference potential
11
4
12 DATA / SL+ Bidirectional RS485 data line (differential)
(EnDat/HIPERFACE
®
, BISS)
5 #DATA / SL-
13 SCLK / MA+ Clock pulse output RS485 (differential) (EnDat, BiSS)
6 #SCLK / MA-
14 COS_Z0 / B+ COSINE track signal (differential) of the high-resolution
incremental encoder
7 #COS_Z0 / B-
15 SIN_Z0 / A+ SINE track signal (differential) of the high-resolution
incremental encoder
8 #SIN_Z0 / A-
Avoiding EMC interferences
The outer cable shield must be connected to the housing of the angle encoder connector
with the greatest possible surface area (with low impedance).
