Item Control Function
18 Depth - Control The Depth value is displayed in percentage of maximum modulation.
19 Amount - Display Displays the % of depth 0%-100%.
20 Threshold - Control Controls the threshold of the selected modulation path.
21 Depth - Control Displays the threshold value of the selected modulation path. 1-9 range.
22 Amount - Display
The yellow OSC/THRESHOLD LED in the upper left corner of this section shows modulation speed
when using periodic modulations (SINE, RANDOM) and indicates when the input level passes the
threshold for ENV or TRIG eects.
23 INV. - Button
When engaged, the INV DLY MOD button inverts the anger sweep start and the envelope pitch
shift direction. This only applies to Delay Mod Waveforms ENV and TRIG. (Does not aect Pan or
Dyn mod)
24 Sine - Button Selects sine wave modulation.
25 Rand - Button Random modulation values.
26 Env - Button Input signal envelope controlled. The modulation target determines the function of Env.
27 Trig - Button Input level triggered. The modulation target determines the function Trig.
28 Pan Modulation - Button Pan Mod on. The parameters are adjusted in the modulation section.
29 Pan Delay - Button Pan Delay on. The parameters for each eect are adjusted in the modulation section.
30 Pan Direct - Button
The DELAY/DIRECT button determines if the PAN eect is applied to the delay signal only, the direct
signal only, both or neither. This also applies to the static pan set in the plug-in, so if neither DELAY
nor DIRECT is lit, there is no panning at all.
31 Dyn Modulation - Button Dyn Mod on. The parameters are adjusted in the modulation section.
32 Dyn Reverse - Button
The REVERSE button causes the selected Dynamic eect to function in an opposite way. With the
Waveform set to SINE or RAND, a tremolo eect is achieved which produces a modulated increase/
decrease in volume. When the REVERSE button is activated, this creates a modulation that enhances
delay volume when direct volume is suppressed and vice versa.
33 Time - Display and Rate
The main function of this section is to control the delay time. The yellow LED above the display will
ash in rhythm with the current tempo, and the exact time in ms will be displayed.
34 Delay Mod - Button Enables modulation of the delay signal.
35 Glob. Tap - Button
Follows global tap tempo from the main surface tap button. Tempo divides can be set with the
Delay time control
36 Delay Time - Control Adjust the delay time from 0 ms to 9999 ms.
37 Mod. Set Display Displays all the settings for the various modulation parameters.
38 Output Gain - Control Controls the output level of the eect. -100 dB to 0 dB.
39 Mix- Control Controls the mix (or ratio) of wet (processed) and dry (unprocessed) signals. 0.0% to 100%
40 Pan - Control Adjust the Pan position. L100 to 0 to R100.
41 Mute In - Button Muting the input will allow the echo tail to fade naturally after the eect is bypassed.
42 Mute Out - Button Mutes the eects output.
43 Inv. - Button When the Inv delay button is activated, the output of the delay signal is phase inverted.
44 Deep Mod - Button
This disables the automatic modulation depth mapping known as “Golden Ratio”. This makes it
possible to do much deeper modulation with wild pitch shifts, but it is somewhat uncontrollable.
45 Output Meter - Meter Metering shows input level.

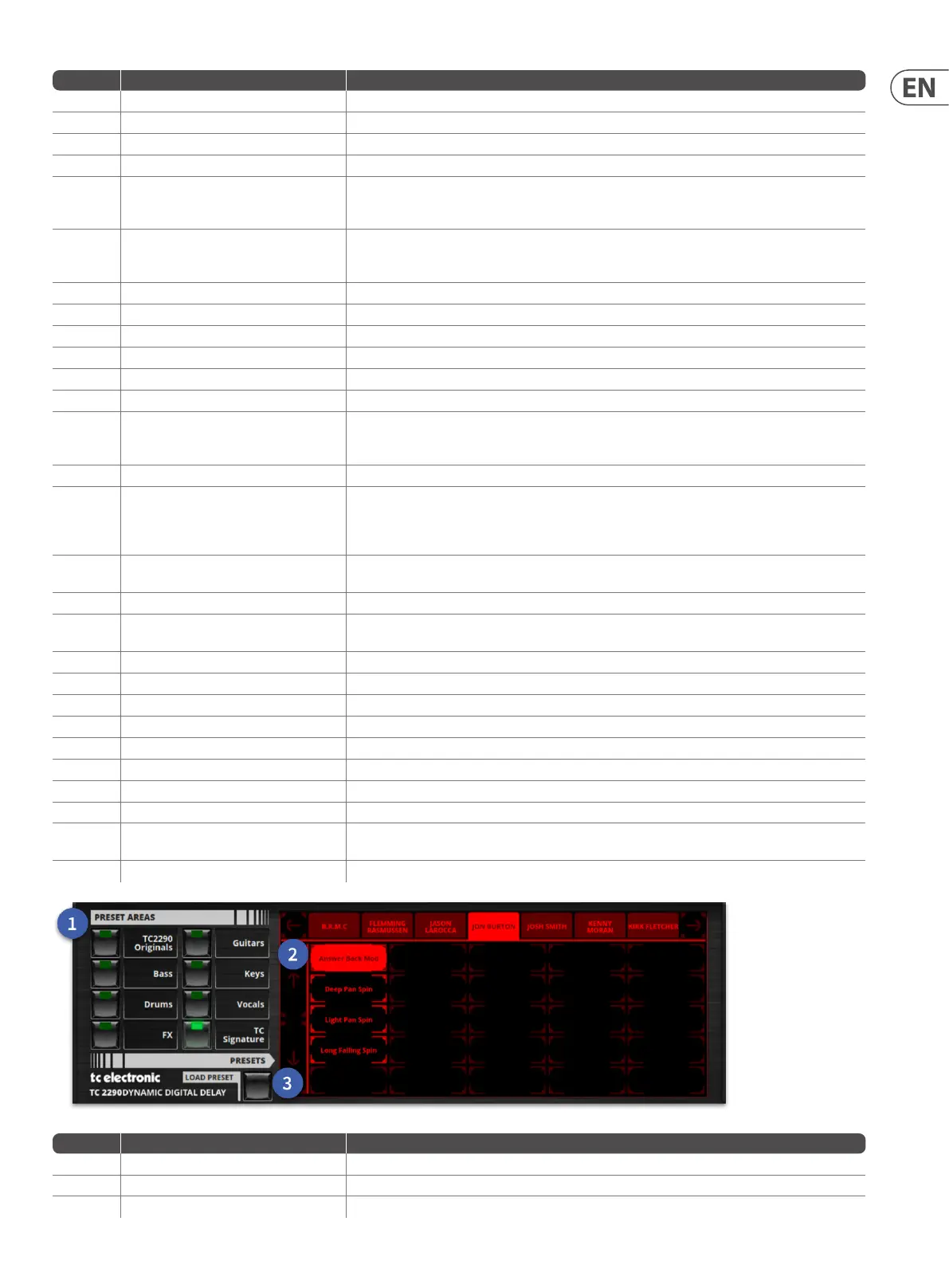

Item Control Function
1
Preset Bank Selection Area
Select a bank containing presets.
2
Preset Selection Area
Displays the current bank of presets, dierent tabs for various dierent settings.
3
Load Preset - Button
Once a preset is selected press load. Preset name is displayed on the main eect display.
