10 Communications via USB
131

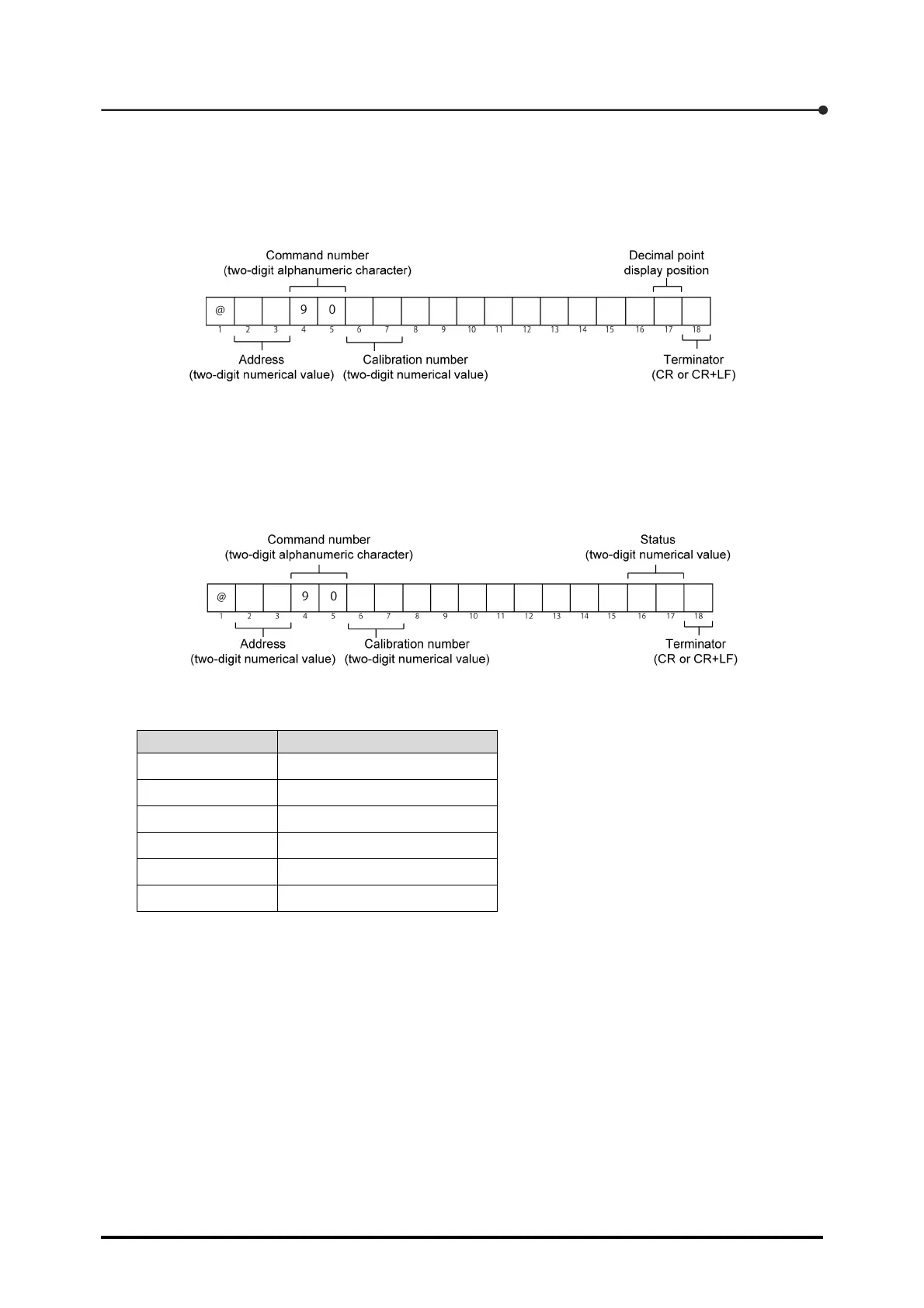

▼ Setting with calibration number 21
When you use calibration number 21 (Setting decimal point display position), the command number,
calibration number, and any of numerical values (ranging from 0 to 4) showing the decimal point
display position are sent in the following format:
▼ Confirmation with calibration number 40
When you use calibration number 40 (Confirmation of calibration status), specifying both command
number and calibration number returns the data in the following format:
This time, the Status field has the numerical value describing the calibration status, among those
listed below.
Numerical value Calibration status
00 Complete
01 Under execution
20 Error code TE-L
21 Error code TE-H
22 Error code SP-L
23 Error code SP-I
For error codes, see Section 9.1, "Error code list".
