10 Communications via USB
130

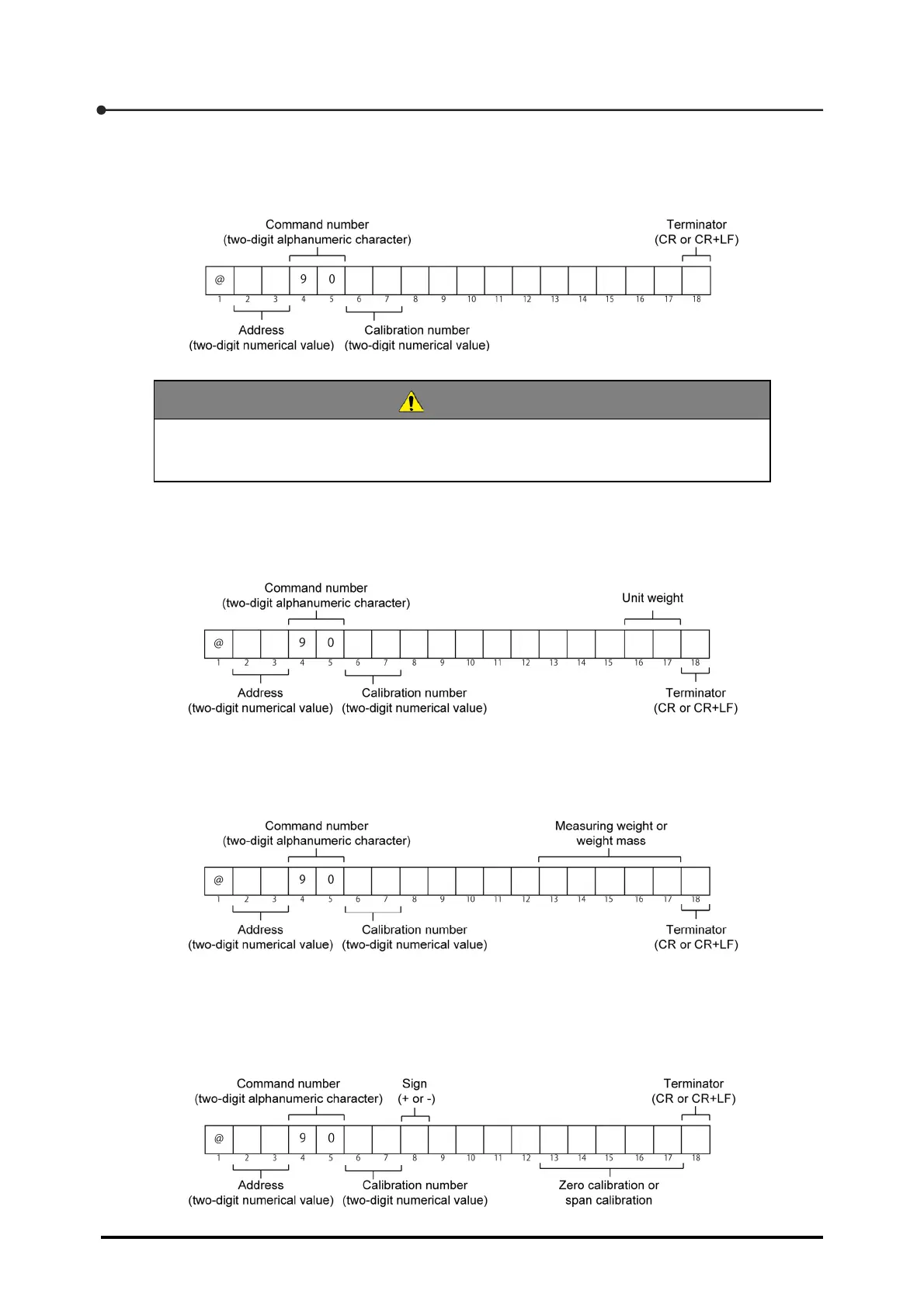

▼ Setting with calibration numbers 01, 07, 10, 99, and 00
When you use calibration number 01 (Transition to calibration mode), 07 (Zero calibration (actual load based)), 10 (Span calibration (actual
load based)), 99 (Registration), or 00 (Forced termination), the command number and calibration number are sent in the following format:
CAUTION
When the calibration number 00 (Forced termination) is sent during the calibration,
the calibration data established up to that timing will not be reflected.
▼ Setting with calibration number 02
When you use calibration number 02 (Setting unit weight), the command number, calibration number, and
any of numerical values (1, 2, 5, or 10) showing the unit weight, are sent in the following format:
▼ Setting with calibration numbers 03 and 04
When you use calibration number 03 (Setting measuring weight) or 04 (Setting weight mass), the command number, calibration number,
and any of numerical values (ranging from 1 to 99 999) showing the measuring weight or weight mass are sent in the following format:
▼ Setting with calibration numbers 08 and 11
When you use calibration number 08 (Zero calibration (numerical value input based)) or 11 (Span calibration (numerical value input
based)), the command number, calibration number, and any of numerical values (ranging from -3100 to 3100) showing the zero
calibration value or span calibration value are sent in the following format:
To Next Page
