Minebea CSD-709 User Manual

2 Installation and Wiring
21

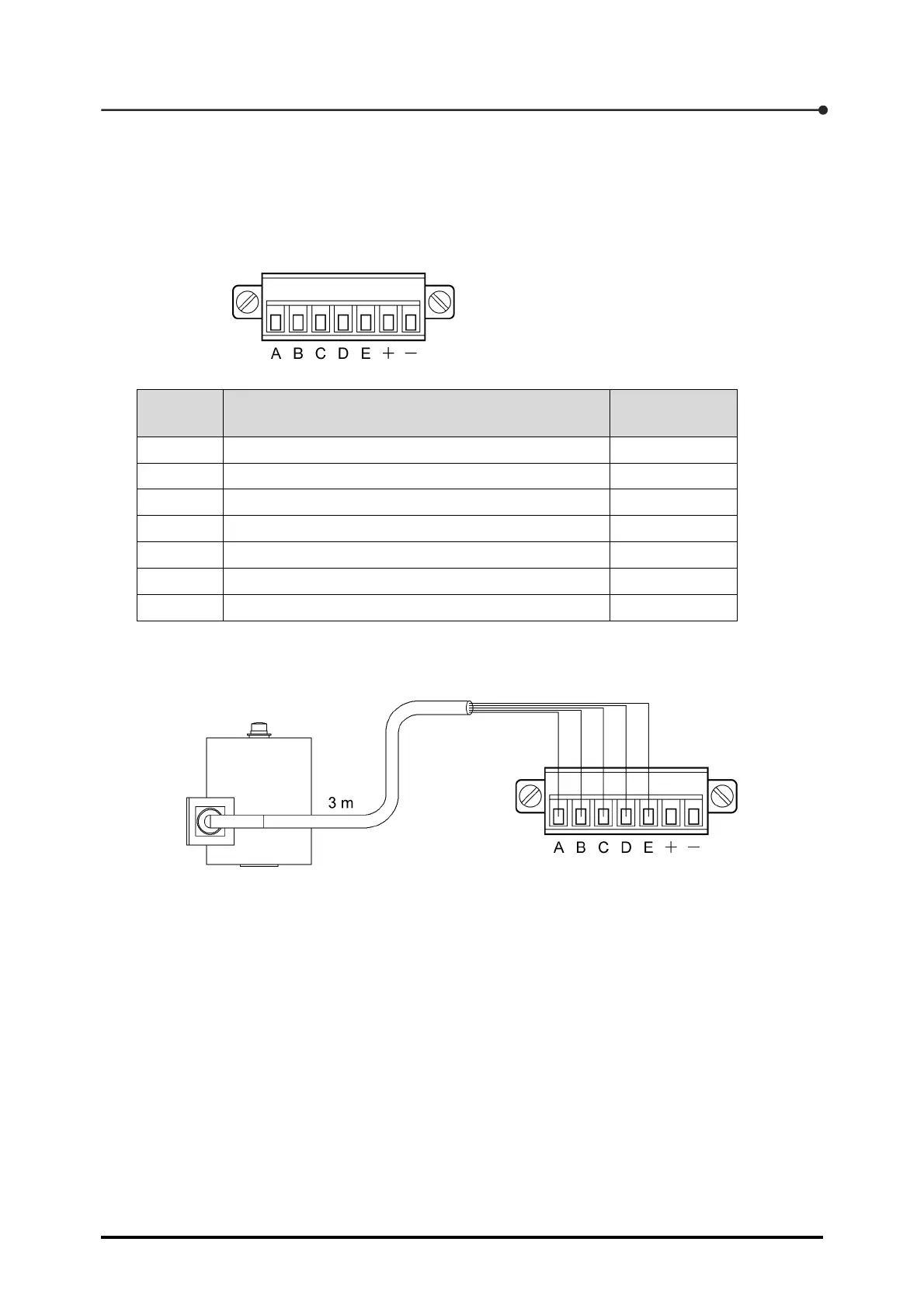

2.2.1 Plugging in the strain-gage-based transducer connector
The strain-gage-based transducer connector is used to connect signal cables of the
strain-gage-based transducer, such as load cell or pressure sensor, to the CSD-709. Also, this
connector is used to connect monitor output signal cables. Shown below are terminal locations on
the strain-gage-based transducer connector.
Terminal
symbol
Terminal
Color code of
signal cable
A Strain-gage-based transducer connector (+EXC)
Red
B Strain-gage-based transducer connector (-SIG)
Blue
C Strain-gage-based transducer connector (-EXC)
White
D Strain-gage-based transducer connector (+SIG)
Green
E Strain-gage-based transducer connector (shield)
Yellow
＋ Monitor output (+)
−
－ Monitor output (-)
−
For example, one load cell is connected to the CSD-709 as shown below.
