5 Settings Related to Detection
76

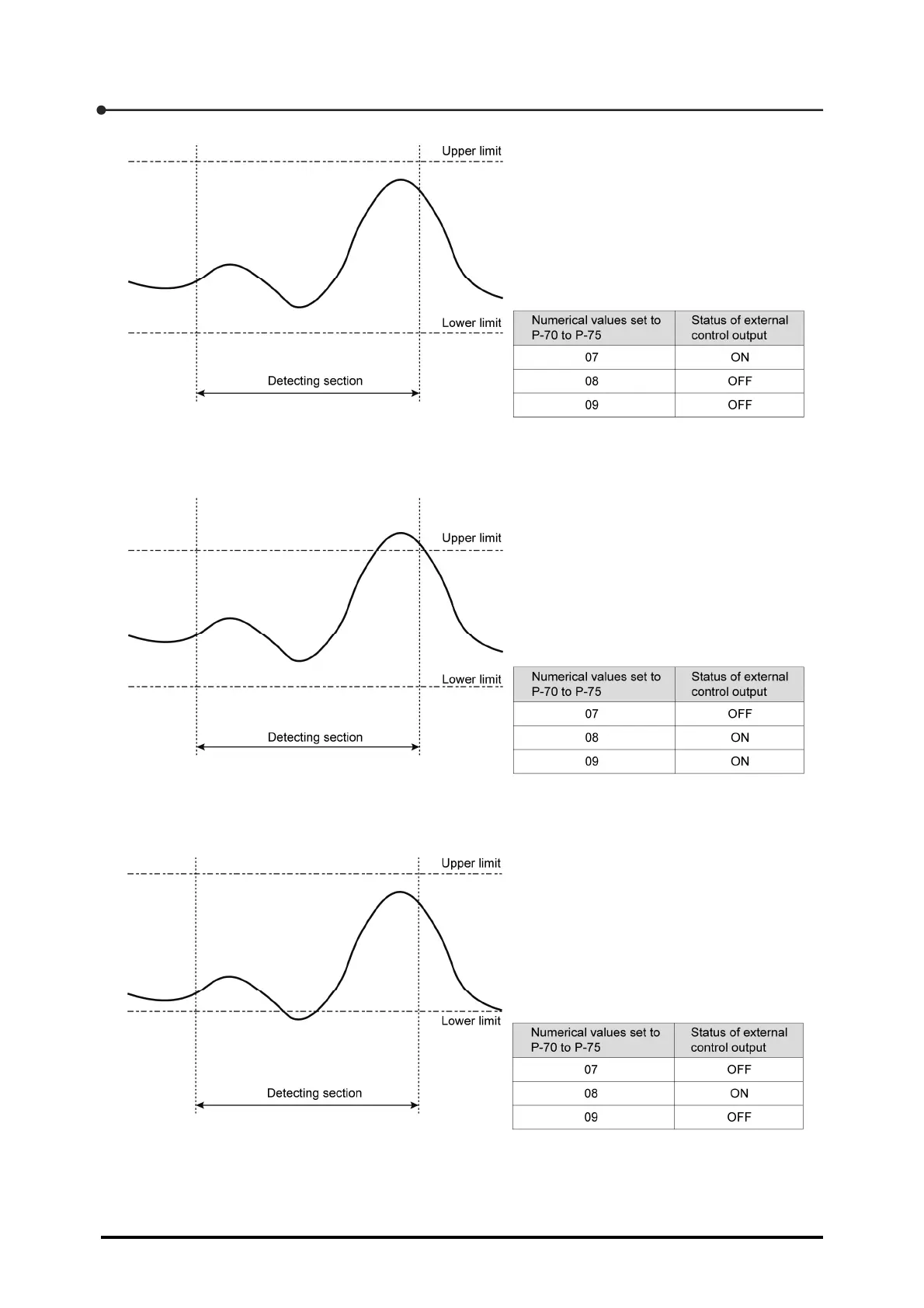

In the following example, the result exceeds the upper limit and thus external control outputs to which
[08] and [09] are set will be turned on after the detection.
In the following example, the result deviates from the lower limit and thus the external control output
to which [08] is set will be turned on after the detection.
As shown above, the detection result judgment allows you to judge that the peak is in the range
determined by the upper and lower limits of the detecting section. Described below are setting
procedures of the detection result judgment.
