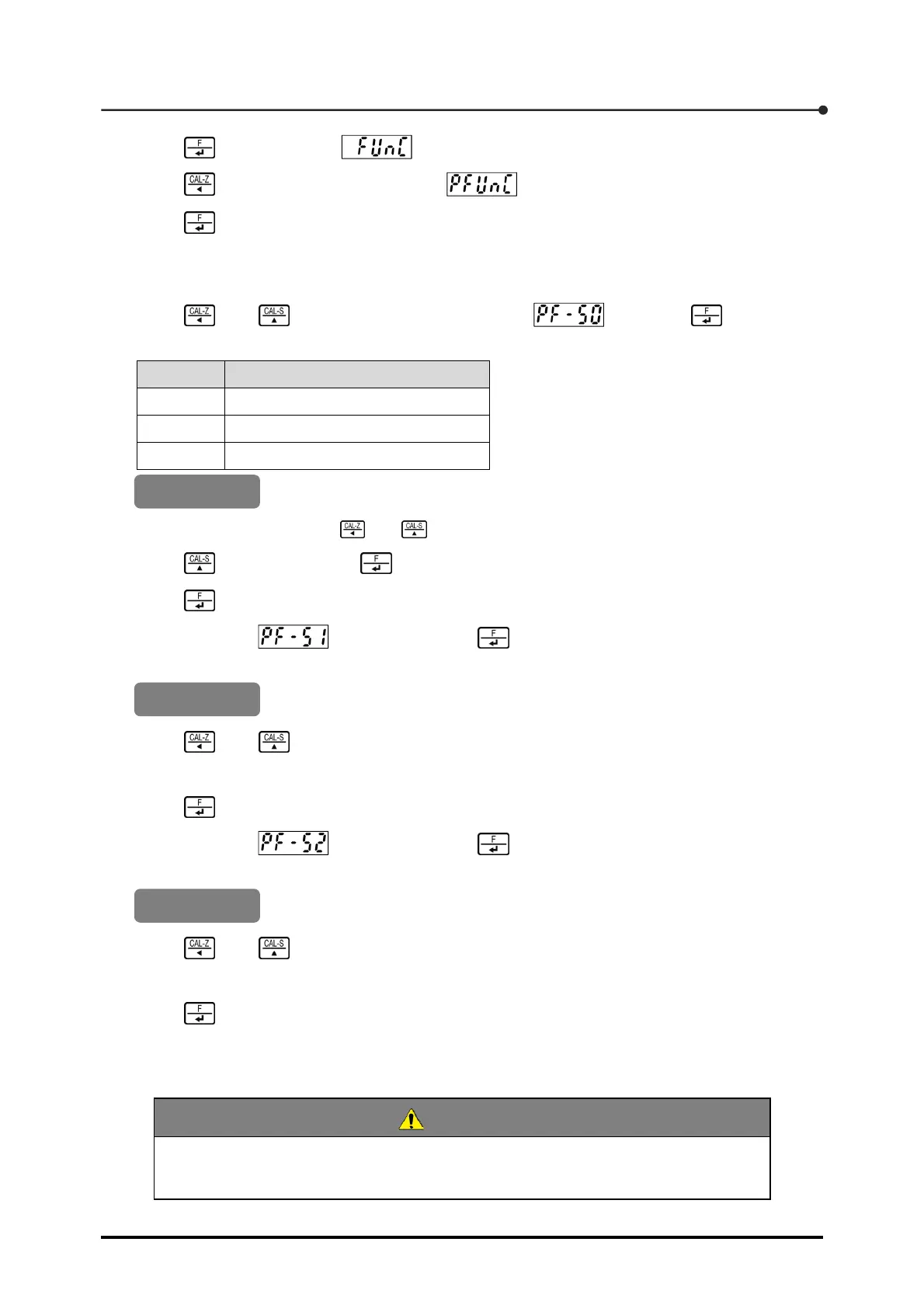

5 Settings Related to Detection
77
1. Press once to display .
2. Press twice to change the display to .
3. Press .
The P function mode is activated, and the display changes to a two-digit numerical value
prefixed with [PF-].
4. Using and , change the numerical value to and press .
The number showing the current setting appears.
Number Setting details
0 Disable
1 Detection result judgment
2 Waveform comparison
0 (Disable)
For setting procedures with and , see Section 1.6, "Basic key operation".
5. Using , set [1] and press .
6. Press .
7. After confirming is displayed, press .
The currently set upper limit appears.
99 999
8. Using and , set the upper limit.
You can set any value between -99 999 and 99 999.
9. Press .
10. After confirming is displayed, press .
The currently set lower limit appears.
-99 999
11. Using and , set the lower limit.
You can set any value between -99 999 and 99 999.
12. Press twice to return to Measurement mode.
5.3.2
Waveform comparison [P-50], [P-51], [P-52]
CAUTION
The comparison of waveforms can only be executed on the CSD-709-91 equipped
with the optional memory card.
Default
Default
Default
