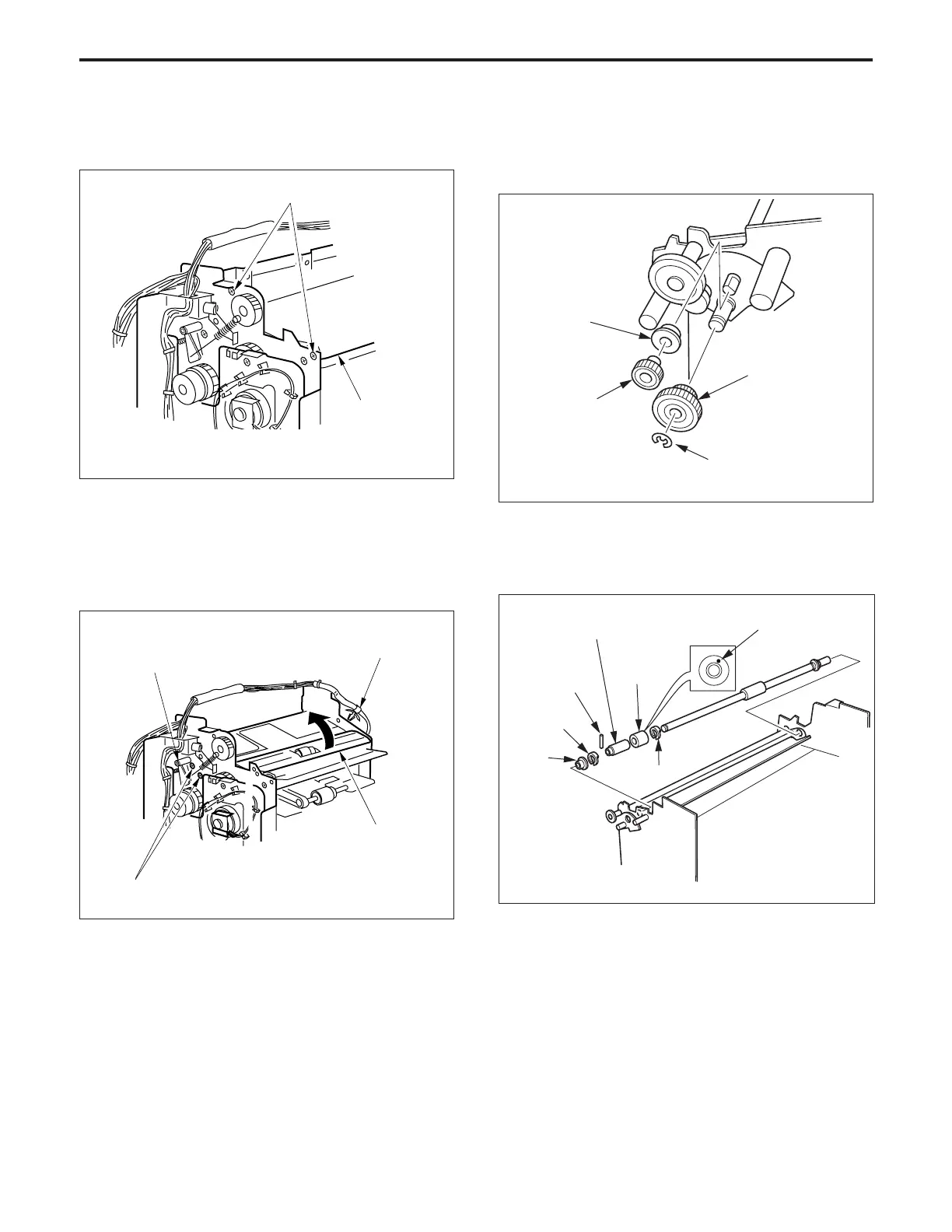

PAPER FEED UNIT
(4) Remove the four set screws, then remove the by-pass
feed top plate.
By-pass feed top
plate
Set screws (at opposite side as well)
(5) Grasp the base of the SK binder of the wires with radio
pliers, then push the SK binder outward and remove it.
(6) Remove the four set screws, then free the by-pass
feed bottom plate.
(7) Lift the by-pass feed bottom plate using the shaft side
as a pivot.
Shaft
SK binder
Set screws (at opposite side as well)
By-pass feed
bottom plate
E ring
Double feed drive
gear (black)
Bearing
< Front of paper feed unit >
Double feed drive gear
(white)
Pin
Double feed
prevention
roller
Bearing
Stop ring
Paint mark
Torque limiter
(11)Re-install the above parts in the opposite sequence to
removal.
Caution: Ensure that the mounting direction of the rubber is
correct.
(10)Remove the two stop rings, bearing and pin, then
remove the torque limiter and the double feed preven-
tion roller.
Stop ring
(8) Remove the E ring of front side, then remove the
double feed drive gear (white).
(9) Remove the bearing and double feed drive gear (black).
