PAPER FEED UNIT
Pin
Bearing (lower)
(6) Remove the paper registration bearing (rear) and
paper registration bearing (lower).
(7) Remove the two bearings (lower), then remove the
registration roller (lower).
(8) Re-install the above parts in the opposite sequence to
removal.
Caution:
1. You cannot install the paper registration spring with the
front (black) and rear (white) ends reversed.
2. The paper registration plate (lower) must enter the
paper registration bearing groove. Also, the groove
side of the bearing must be on the inside.

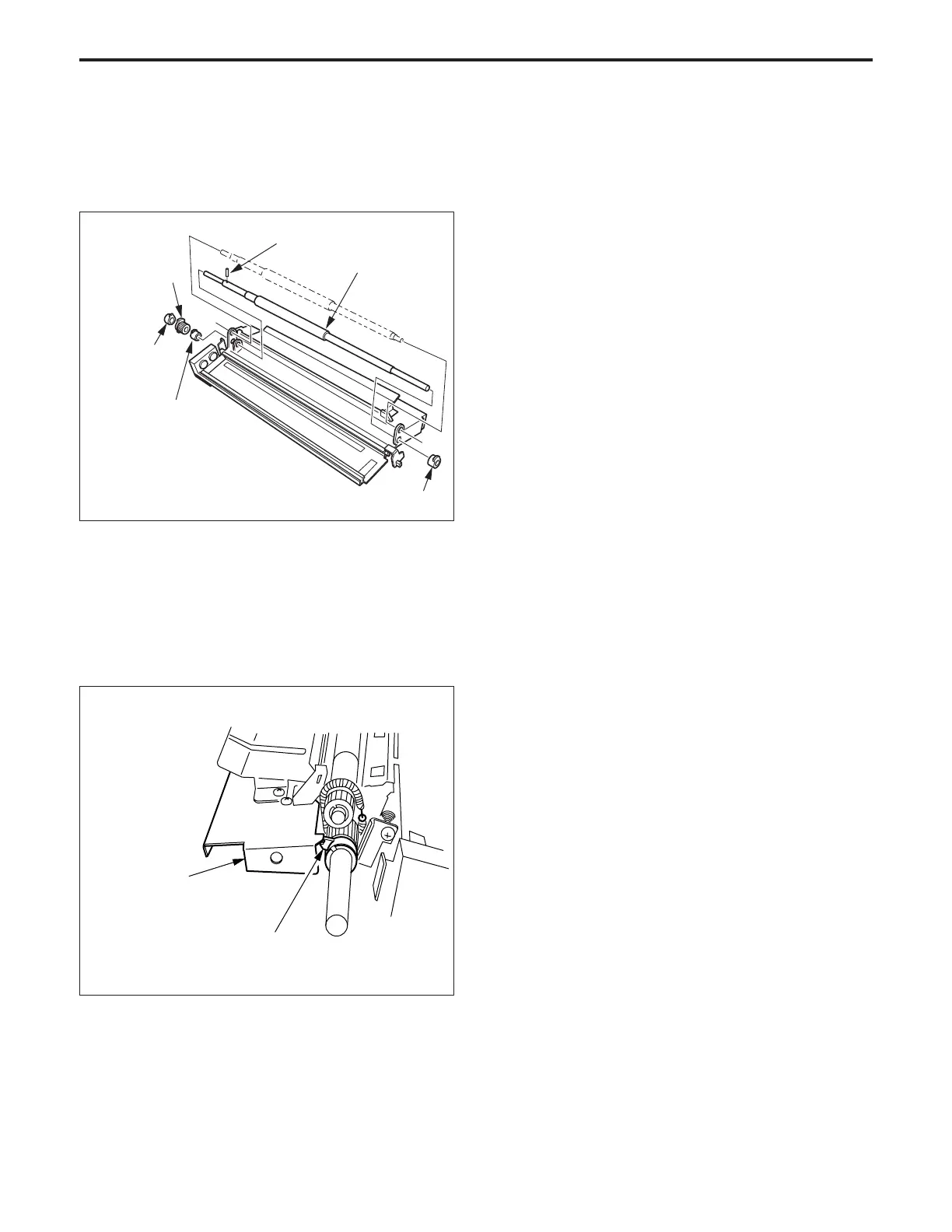

Registration
roller (lower)
Bearing
(lower)
Paper
registration
bearing (rear)
Paper
registration
bearing (lower)
3. Each flange of bearing (upper) and bearing (lower)
must face outward.
Paper feed
registration plate
(lower)
Groove in paper
registration bearing
