2 - N - 4
LCT-1500 TRAY PAPER FEED/CONVEYANCE SECTION
5. Replacing the LCT Clutch/2
a. Procedure
(1) Remove the LCT1500 paper feed/paper conveyance
section.
(2) Remove the two set screws and two E rings, then
remove the drive board.
(3) Disconnect the connector of the clutch.
(4) Remove the set screw, then pull LCT clutch/2 off the
shaft.

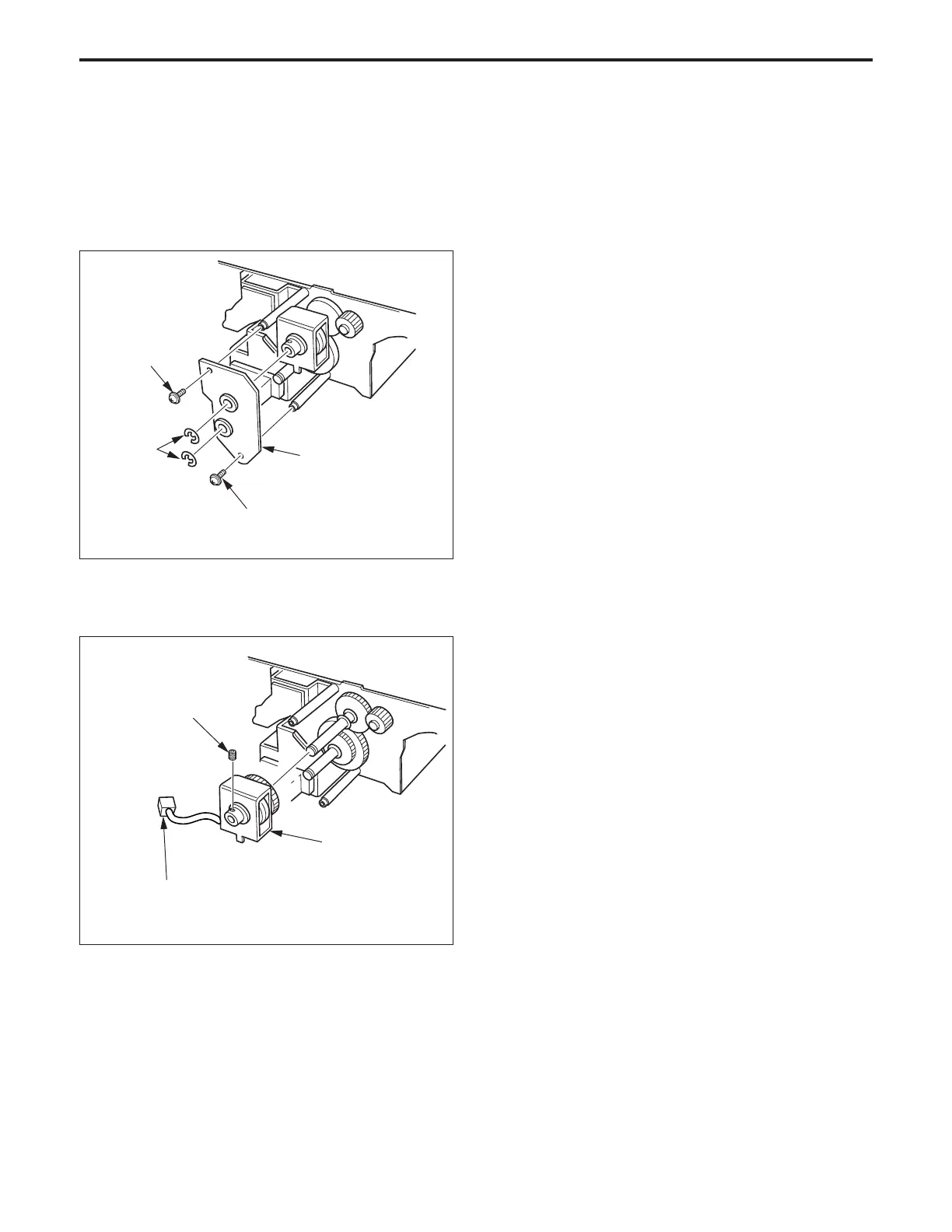

Set screw
E rings
Set screw
Drive board
(5) Re-install the above parts in the opposite sequence to
removal.
LCT clutch/2
Set screw
Connector
