2 - O - 3
LCT PAPER TRAY SECTION
3. Replacing the Wires
Caution: The method of installing the tray up-down drive
wires is the same for both the front and rear. For this
reason, the description of the method of replacing
the wires is based on the rear side only.
Install the front wires in exactly the same way as the
rear wires.
Caution:
a. After replacing or re-installing the wires, move the tray
up and down by hand, and confirm that it rises and falls
smoothly.
b. Take care that wires do not cross each other or ride up
the sides of the pulleys.
c. Adjust the tilt of the tray after installing the wires.
Wire B
Auxiliary drive spring
Auxiliary wire
Wire protection cover
Set screws
Detach the auxiliary wire
from the auxiliary drive
spring.
E ring
Drive pulley
Wire B
Auxiliary wire
4
Remove the E ring,
then withdraw the
drive pulley.
Wire A
Wire restraining cover
Wire B
Wire A
Tray
Wire A

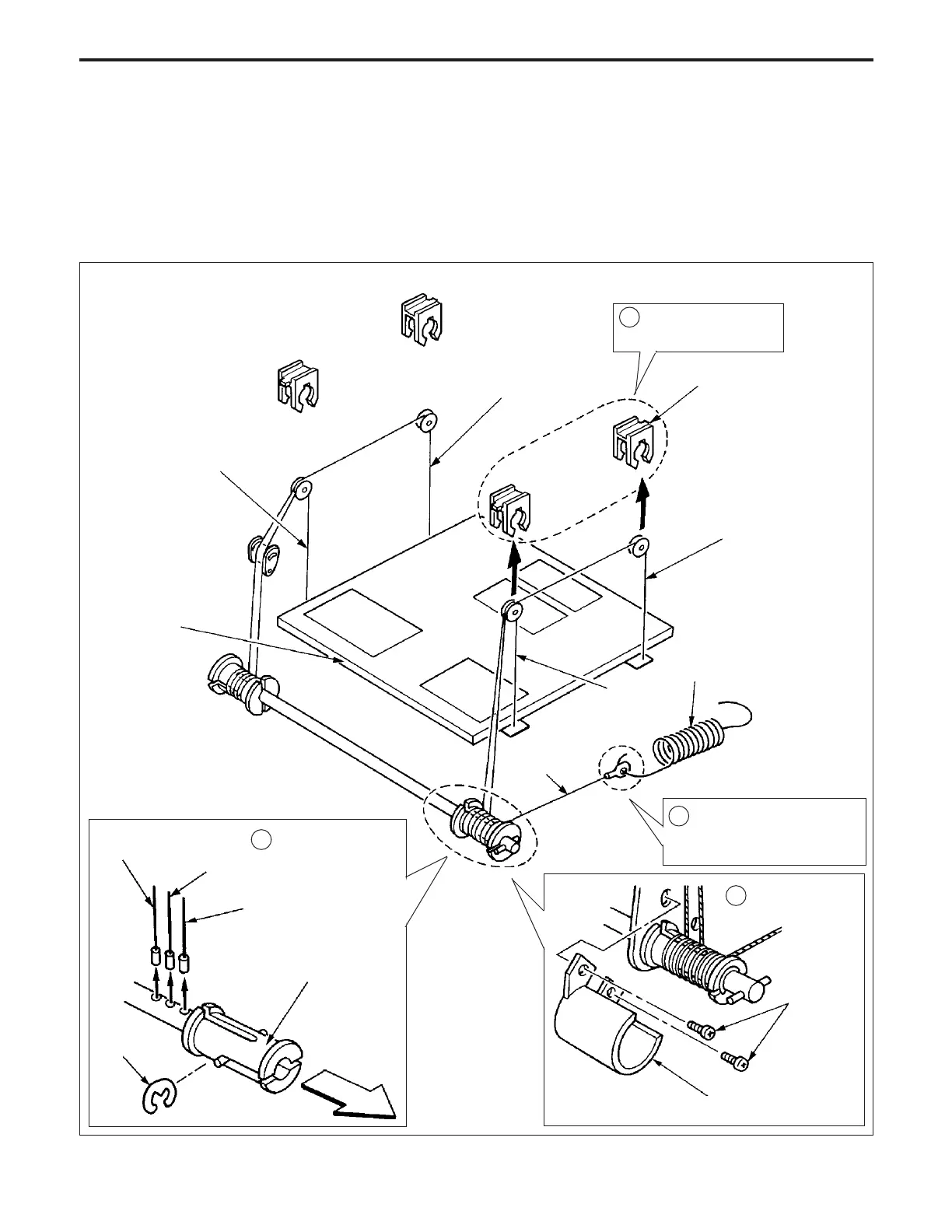

<Method of removing the wires>
3
Remove the
restraining covers.
1
Remove the wire
protection cover.
2
To Next Page
