LCT PAPER TRAY SECTION

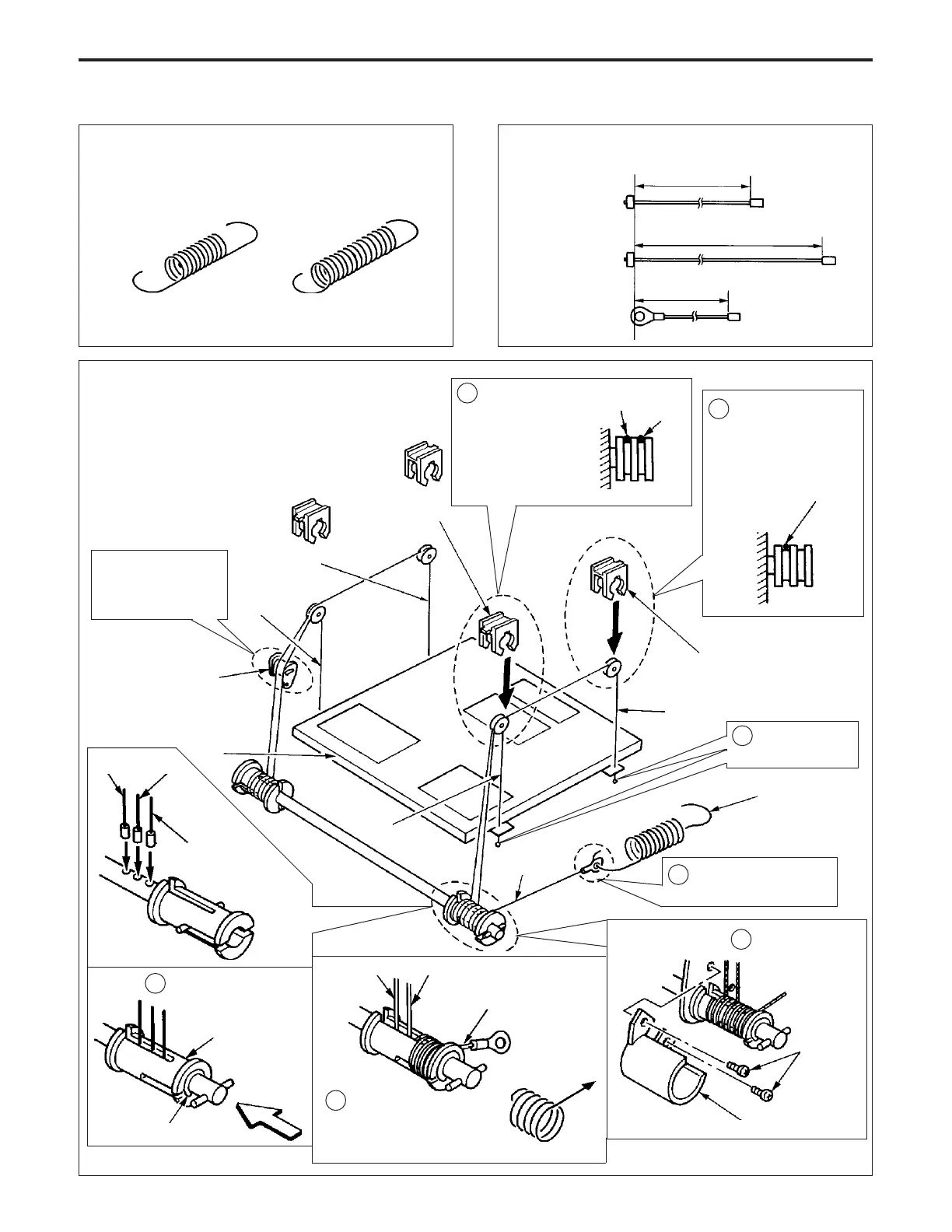

<Method of installing the wires>
Wire A
Attach the wire to the
auxiliary drive spring.
7
8
Pass wire B through
the groove in the
pulley, then install
the wire restraining
cover.
2
Wire B
Pass wires A
and B through
the grooves in
the pulleys,
then install the
wire restraining
covers.
3
Wire A
Wire B
Wire A Wire B
Auxiliary wire
Wire A
Wind the auxiliary wire
clockwise around the
drive pulley. (1000 tray:
4 turns; 1500 tray: 5 turns)
6
E ring
Set screws
Install the wire
protection cover.
Push in the drive pulley,
and fix it with the E ring.
5
Tray
Wire adjustment
piece
Wire A
Pass wires A and B
at the front side over
the wire adjustment
pieces.
Wire B
Wire restraining
cover
Wire restraining cover
Auxiliary drive
spring
Auxiliary wire
Auxiliary
wire
Drive pulley
Wire B
Pass the wires
through here.
1
Wire B
Wire protection cover
<Wire length>
343 ± 0.4 mm (1500 tray)
236 ± 0.4 mm (1000 tray)
543 ± 0.4 mm (1500 tray)
355 ± 0.4 mm (1000 tray)
214 ± 0.5 mm (1500 tray)
157 ± 0.5 mm (1000 tray)
Wire A
Wire B
Auxiliary wire
Caution: The 1500 tray has two kinds of auxiliary drive
springs which are shown below. Install the
spring which matches the size of paper to be
used in the tray.
Auxiliary drive spring C
(for B5/8
1
/
2
" × 5
1
/
2
" size)
Auxiliary drive spring A
(for A4/8
1
/
2
" × 11" size)
(Black)
