ADJUSTMENT
4 - 22

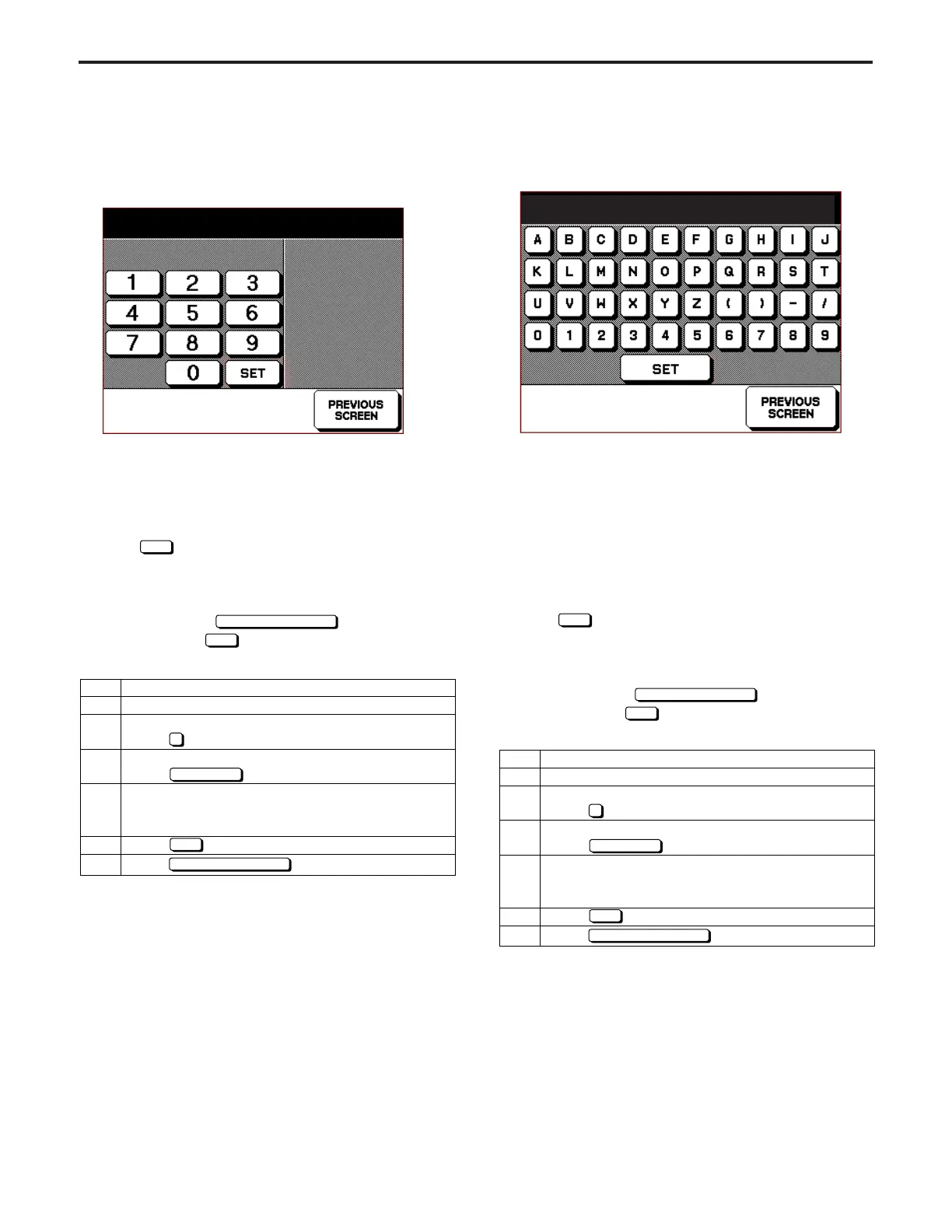

3. Count limit setting
[Copy Count Limit Setting Screen by Parts to be Re-
placed]
(1) Using the numeric key on the screen, enter new limit value.
• Newly entered data will be displayed on the second row of
the message area.
• The firstly entered number will be shifted to the left end.
(2) Press
SET
key to return to Copy Count Screen by Parts
to be Replaced.
Note:
The screen will also return to Copy Count Screen by Parts
to be Replaced if
PREVIOUS SCREEN
button is pressed
without pressing
SET
key. In this case, no limit value will
be changed.
Note:
The right side of the limit value will be marked as "
*
" if the
copy count exceeds its limit value.
Each part counter limit setting
No.1 1565/5000
4. Part Number Setting Method
[Part number setting screen]
(1) Using the numeric keys on the screen, enter new parts
number (P/N).
• The input characters are displayed in the part number dis-
play area on the 2nd line of the message display area.
• The display shifts one space from right to left each time a
character is input.
• When 9 characters have been input, the character on the
farthest left will be deleted each time an additional charac-
ter is input.
(2) Press
SET
key to return to Copy Count Screen by Parts
to be Replaced.
Note:
The screen will also return to Copy Count Screen by Parts
to be Replaced if
PREVIOUS SCREEN
button is pressed
without pressing
SET
key. In this case, no parts number
will be changed.
Step
1
2
3
4
5
6
Operation
Enter the 25 mode.
[25 MODE SCREEN]
Press Copy Count by Parts to be Replaced.
[COPY COUNT SCREEN BY PARTS TO BE REPLACED]
Press button.
[NUMBER SETTING SCREEN]
Use the numerical keys to input the new part
number.
Press
button to confirm the input part number.
Press button to end setting.
5
P/N Setting
SET
PREVIOUS SCREEN
Each part counter P/N setting
No.15 P/N xxxxxxxxx 000300/050000
Step
1
2
3
4
5
6
Operation
Enter the 25 mode.
[25 MODE SCREEN]
Press Copy Count by Parts to be Replaced.
[COPY COUNT SCREEN BY PARTS TO BE REPLACED]
Press button.
[COPY COUNT LIMIT SETTING SCREEN BY
PARTS TO BE REPLACED]
Enter new limit value using the numeric key.
Press button to execute.
Press button to end setting.
5
Limit setting
SET
PREVIOUS SCREEN
