5 - 9
(11)Re-install the above parts in the opposite sequence to
removal.
Caution:
1. When re-installing each pulley, do not forget to re-
install each pin as well.
2. Ensure that the mounting direction of the rubber is
correct.

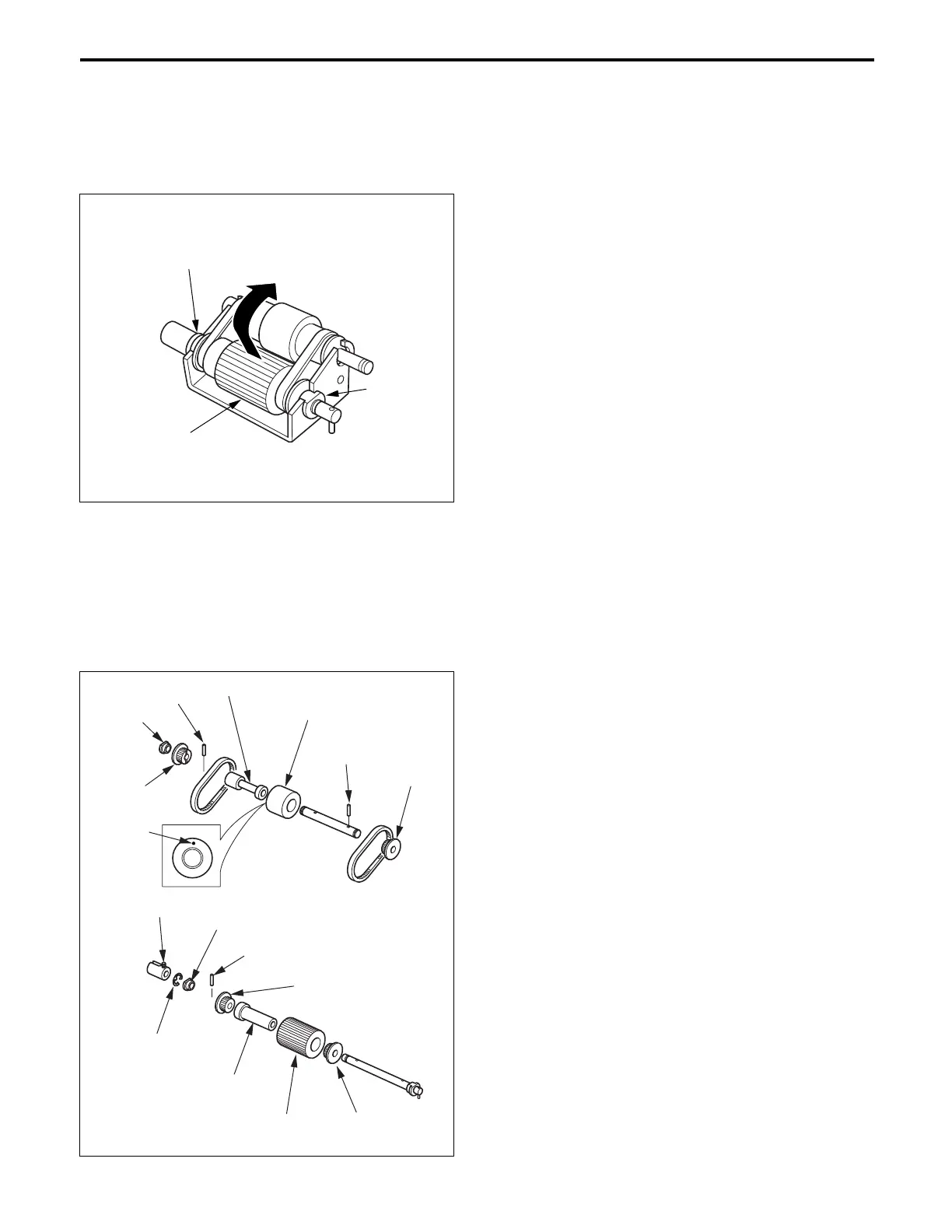

(7) Remove the two bearings from the metal bracket, then
pull out the feed roller together with the shaft in the
direction of the arrow.
Bearing
Paper feed roller
Bearing
(8) Slacken the set screw, and remove the E ring.
(9) Remove each bearing and each pulley from the shaft,
then remove the paper feed roller and feed roller from
the shaft.
(10)Remove the paper feed rubberA/B and feed rubber
from each roller.
Bearing
Pin
Feed roller
Feed rubber/B
Pulley
Pin
Pulley
Set screw
Pulley
Bearing
Pin
Paper feed
rubber/A
Pulley
Paper
feed
roller
E ring
Paint
mark
