5 - 8
(5) Remove the stop ring, then remove the one-way clutch.
(6) Remove the two stop rings.
Relay
connector
Set screws
Main body
base plate (A)
Set screws
Set screws
Set screws
Paper feed
guide plate
(lower) ass'y
Set screw
Set screw
Feed roller ass'y

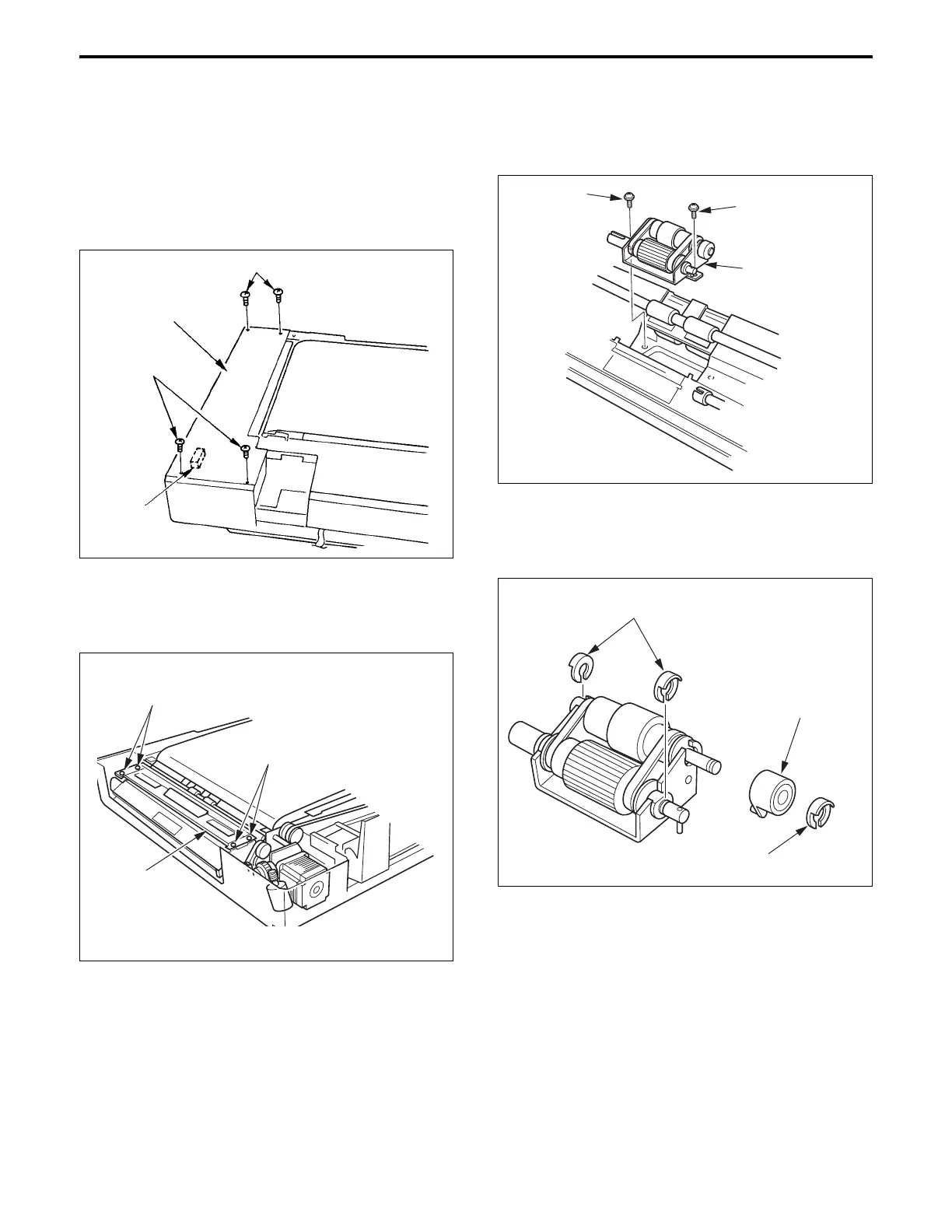

2. Replacing the Paper Feed Rubber and Feed
Rubber
a. Procedure
(1) Remove the four set screws, then remove main body
base plate (A).
(2) Disconnect the relay connector.
(4) Remove the two set screws and remove the feed roller
ass'y.
(3) Remove the four set screws and remove the paper
feed guide plate (lower) ass'y.
Stop rings
one-way clutch
Stop ring
