2 - E - 6
READ SECTION

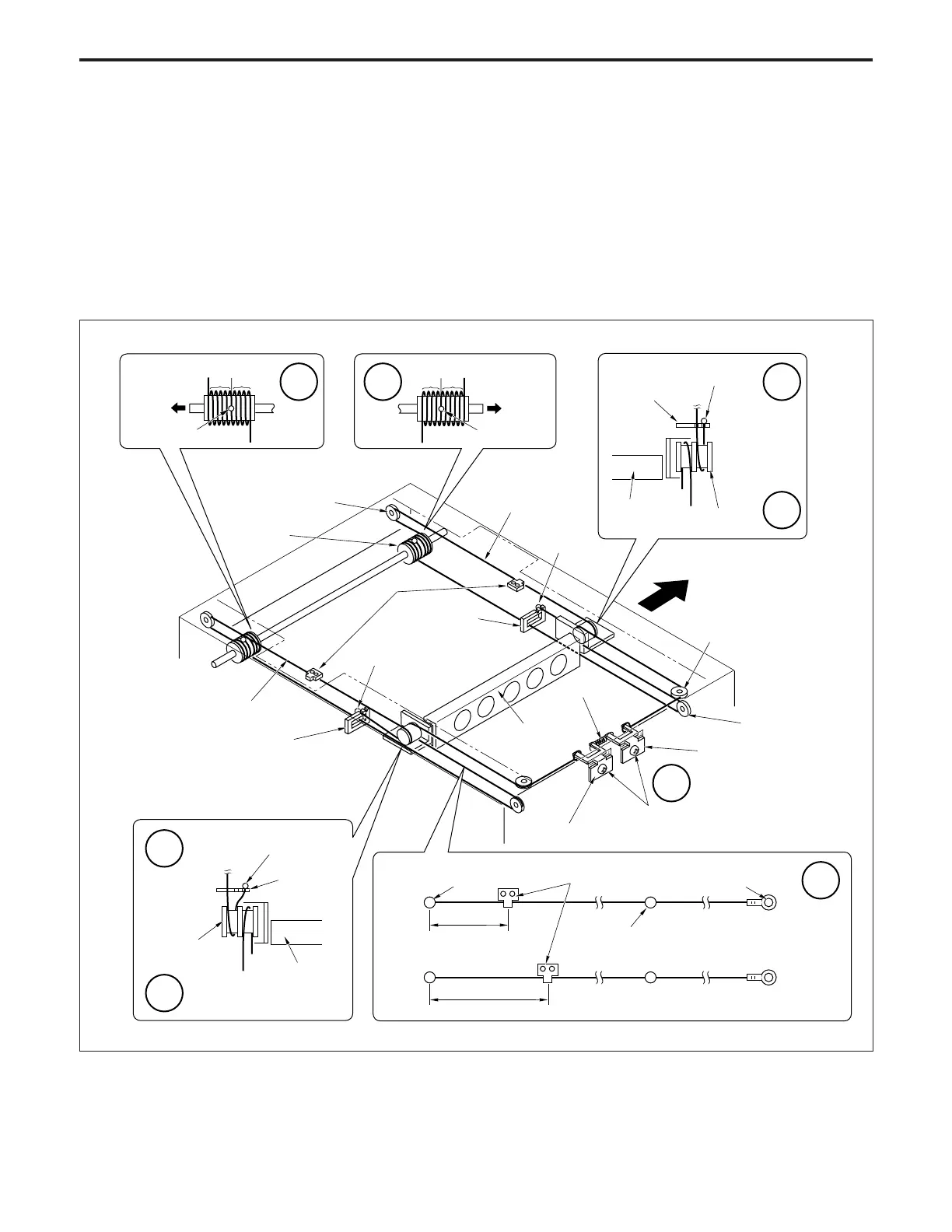

(8) The exposure unit mounting piece is installed on the
optics wire in advance. The position of the mounting
piece differs depending upon whether it is on the front
or the rear wire. Use the wire that has the shorter length
from the metal bead at the end to the mounting piece,
at the rear.
(9) Place the metal bead at the mid-point of each optics
wire in the mounting hole of the drive pulley, then wind
five turns around the pulley to the outside, and four
turns to the inside, starting from this point.
Caution:
1. Ensure that there is a metal bead at the end of the outer
wire, and a wire terminal at the end of the inner wire.
2. Pull out the outer wire from the top of the drive pulley
in the paper exit direction, and pull out the inner wire
from the bottom of the drive pulley in the paper feed
direction.
9 9 10
11
13
8
10
11
Front
Five turns Four turns
Exposure unit
mounting piece
Four turns
Rear
Five turns
Metal bead
Optics wire (rear)
Wire stopper
Metal bead
Pulley
V mirror unit
Rear
Pulley 3
Pulley 2
Spring fixing plate
Set screws
Spring fixing plate
Spring
Wire
stopper
Optics wire (front)
Wire stopper
Metal bead
V mirror unit
Pulley
Metal bead
Exposure unit
mounting piece
Metal bead
Lug terminal
Optics wire (front)
Optics wire (rear)
Metal bead
Metal bead
V mirror unit
Metal bead
Drive pulley
Pulley 1
Wire stopper
Short
Long
