4. Configure the Interleaver depth for the QAM.
Note: The values in steps 3 and 4 must match the values originally defined in the
Session Controller.
5. Click Apply to confirm the changes in the APEX1000.
Configuring QAMs for Session Control
If the APEX is to operate as a switched digital edge QAM, you must also configure the
output QAM channels for session controlled mode (after the QAM module is
successfully configured).
To configure QAMs for session control, select Configuration > Output TS
Configuration.

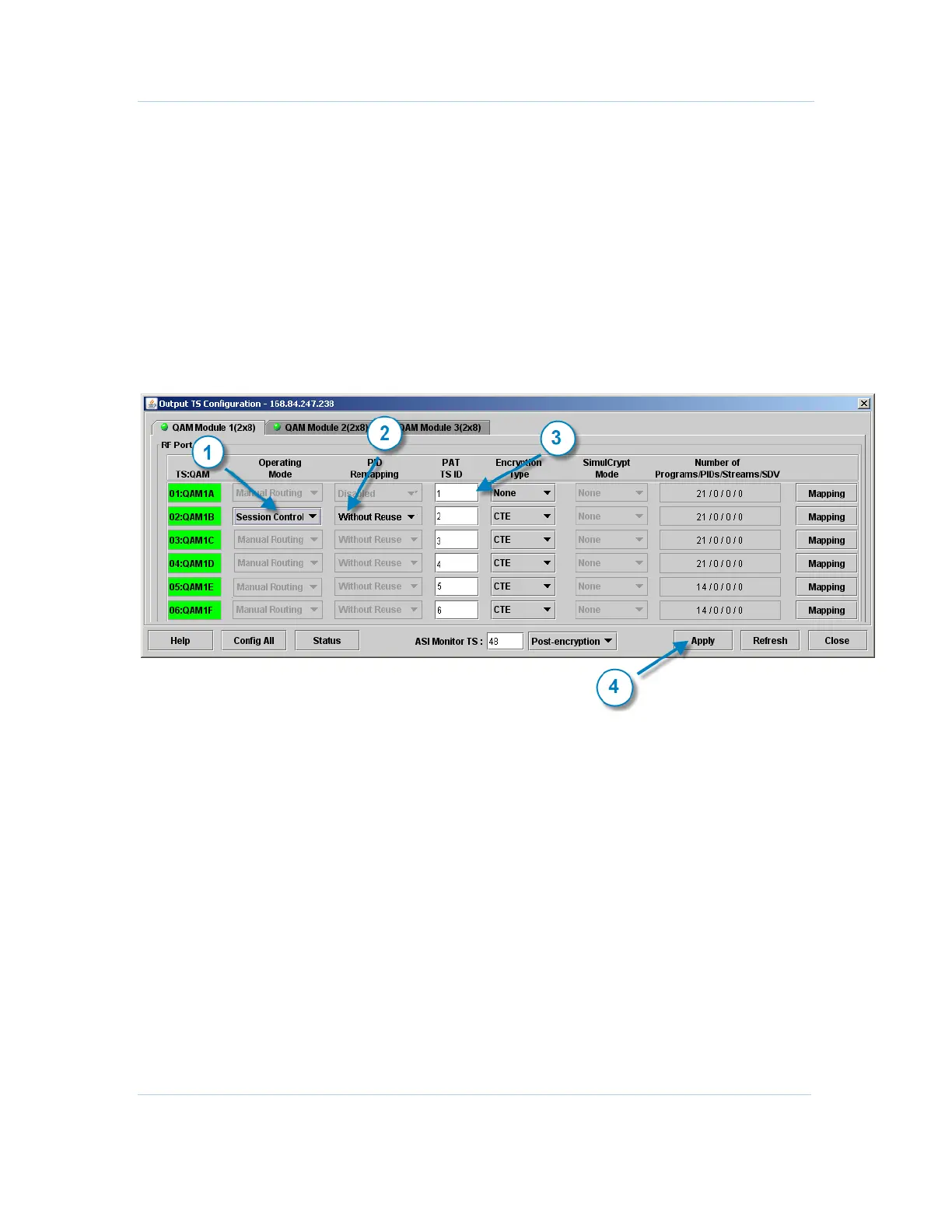

The Output TS Configuration window displays:
1. Select Session Control from the operating mode menu for each QAM.
2. Select Without Reuse from the PID Remapping menu for each Session Controlled
QAM.
3. Configure the TSID for each QAM. This must match the value previously configured
in the Session Controller.
4. Click Apply to apply these changes to the APEX1000.
Note: You can also place all QAMs on an RF port in a specific mode by selecting Config
All and selecting the appropriate operating mode.
Configuring Switched Digital Mode
On this screen, you can configure the APEX1000 for a specific session control mode, by
selecting SDV > Session Control Config.
You can also configure the Data Carousel PID in RPC Mode, and the Redundancy Type
(
Hot/Warm or Hot/Hot):
