Configuring for Switched Digital Video • Step by Step Instructions

APEX1000 All-Purpose Edge QAM Software Version 2.4.x • Installation and Operation Manual

176

573408-001-a

Configuring QAM Modules

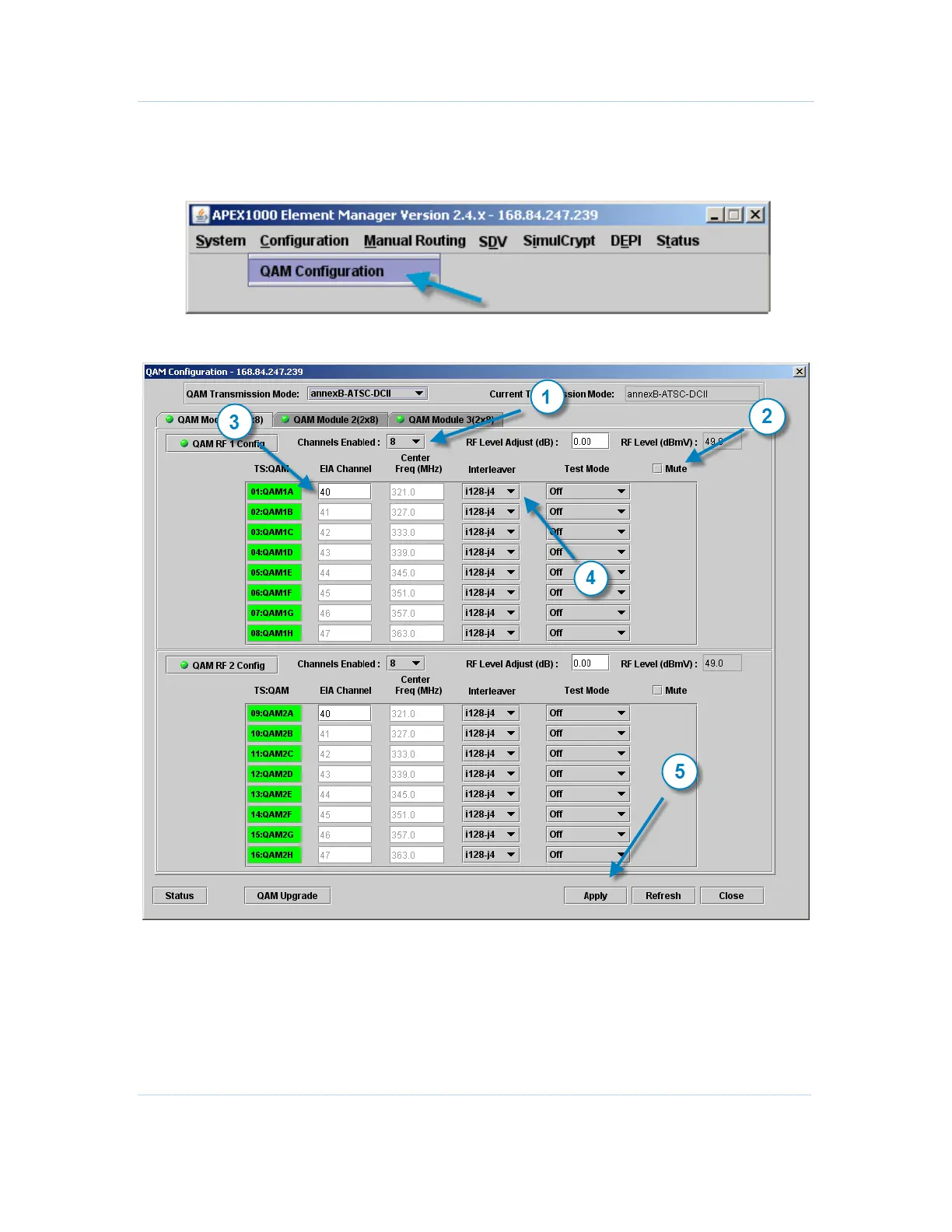

Next, to configure the QAM output modules, select Configuration > QAM

Configuration:

The QAM Configuration window displays:

To configure the QAM/RF interface:

1. Select the number of channels to enable from the Channels Enabled drop-down

menu.

2. Confirm that the QAMs are not muted by clearing the Mute checkbox.

3. Configure the EIA channel range for the QAM.
