TRANSMISSION
Ch 2 page 286 Ch 2 page 287
TRANSMISSION
TRANSMISSION
Ch 2 page 286 Ch 2 page 287
TRANSMISSION
Figure 568
Figure 571
Figure 570
Figure 569

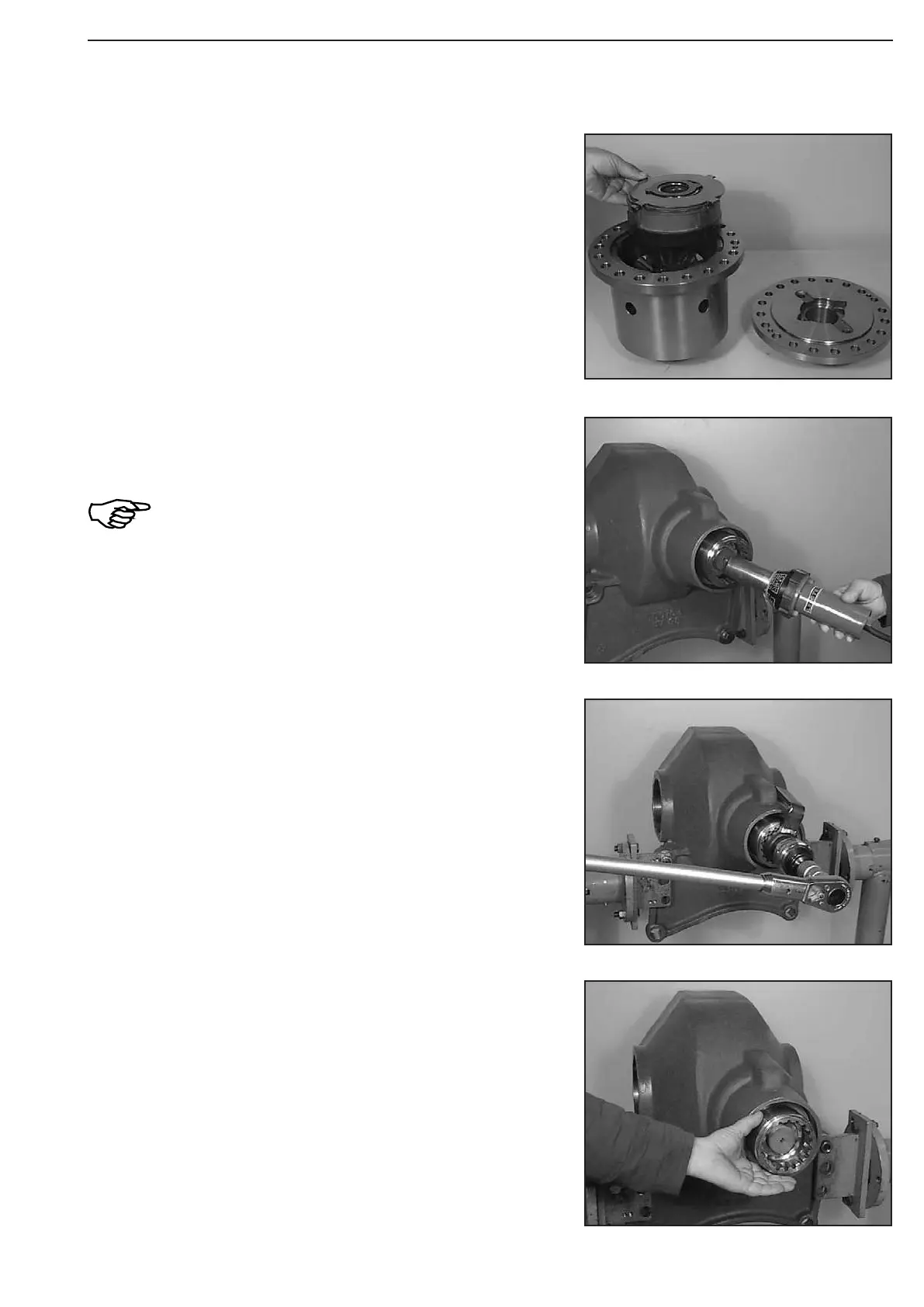

Demount housing cover and disassemble components.
Pull clutch sleeve from drive pinion.
Loosen slotted nut and remove disk.
(S) Hook spanner 504726
(S) Counter support 504724
(S) Power amplifier 504719
Heat slotted nut (about 120° C).
Slotted nut is secured with Loctite !
(S) Hot-air blower 230 V 504193
(S) Hot-air blower 115 V 504194
