TRANSMISSION
Ch 2 page 290 Ch 2 page 291
TRANSMISSION
TRANSMISSION
Ch 2 page 290 Ch 2 page 291
TRANSMISSION

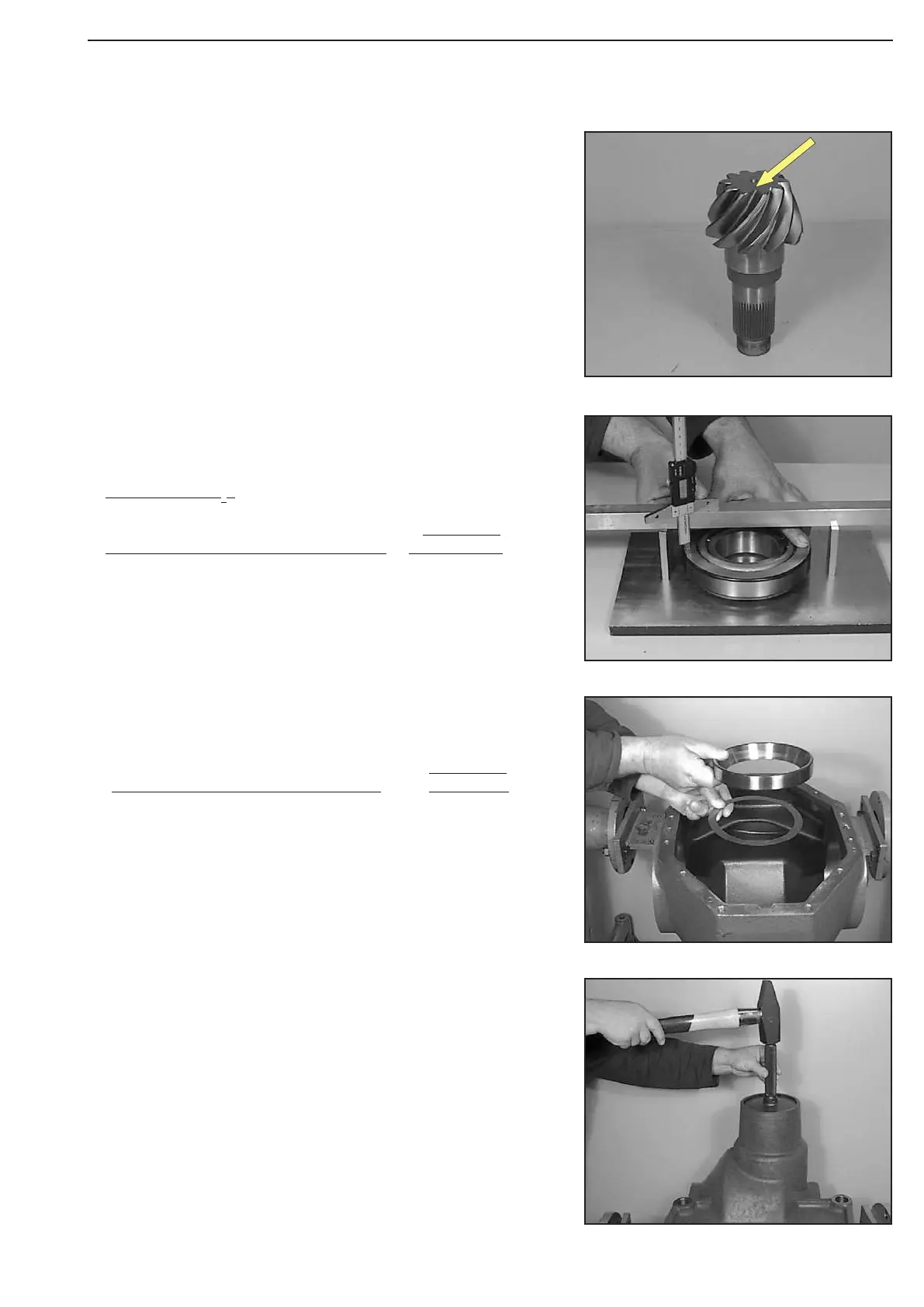

Figure 579
Figure 582
Figure 581
Figure 580
Read Dimension I (pinion dimension), see Arrow !
Dimension I e.g. ...................................... 198,00 mm
Tilt differential housing 180°.
Insert bearing outer race until contact is obtained.
(S) Driver 504716
(S) Handle 504195
EXAMPLE: „ O
3
“:
Dimension X ...................................... 241,50 mm
Dimension Y .....................................
− 240,30 mm
Difference = Shim s = 1,20 mm
Insert shim (e.g. s = 1,20 mm) and install bearing outer race until
contact is obtained.
(S) Driver 505153
(S) Handle 504256
Measure Dimension II (bearing width).
Dimension II e.g. ........................ ............. 42,30 mm
EXAMPLE: „ O
2
“:
Dimension I e.g. ....................................... 198,00 mm
Dimension II e.g. ..................................... + 42,30 mm
Gives Dimension Y = 240,30 mm
(S) Gauge blocks 504173
(S) Straightedge 504170
(S) Digital Depth gauge 504175
