TRANSMISSION
Ch 2 page 292 Ch 2 page 293
TRANSMISSION
TRANSMISSION
Ch 2 page 292 Ch 2 page 293
TRANSMISSION
Figure 583
Figure 586
Figure 585
Figure 584

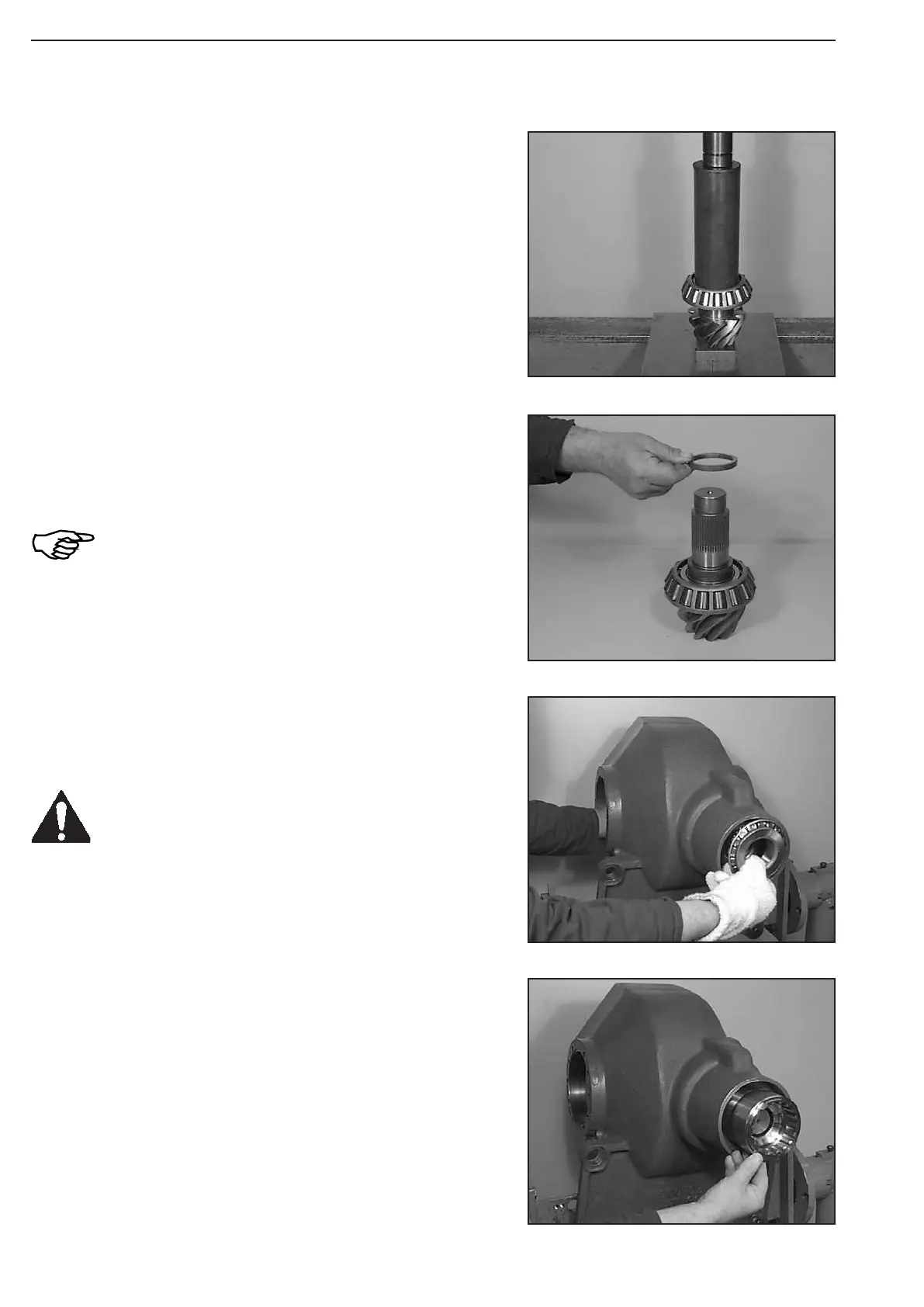

Press bearing inner race over the drive pinion until contact is
obtained.
Line up the clutch sleeve.
Position the drive pinion and line up the heated bearing inner race
until contact is obtained.
Use protective gloves !
Adjust the Rolling moment of the Drive pinion bearing
T = 3,5 ... 4,5 Nm (without shaft seal) (Figure 584 ... 588):
Line up adjusting ring e.g. s = 8,15 mm.
We know from experience that the required
rolling moment will be achieved if the
adjusting ring (e.g. s = 8,15 mm), found at the
disassembly is used !
However, the later check of the rolling
moment is imperative!
