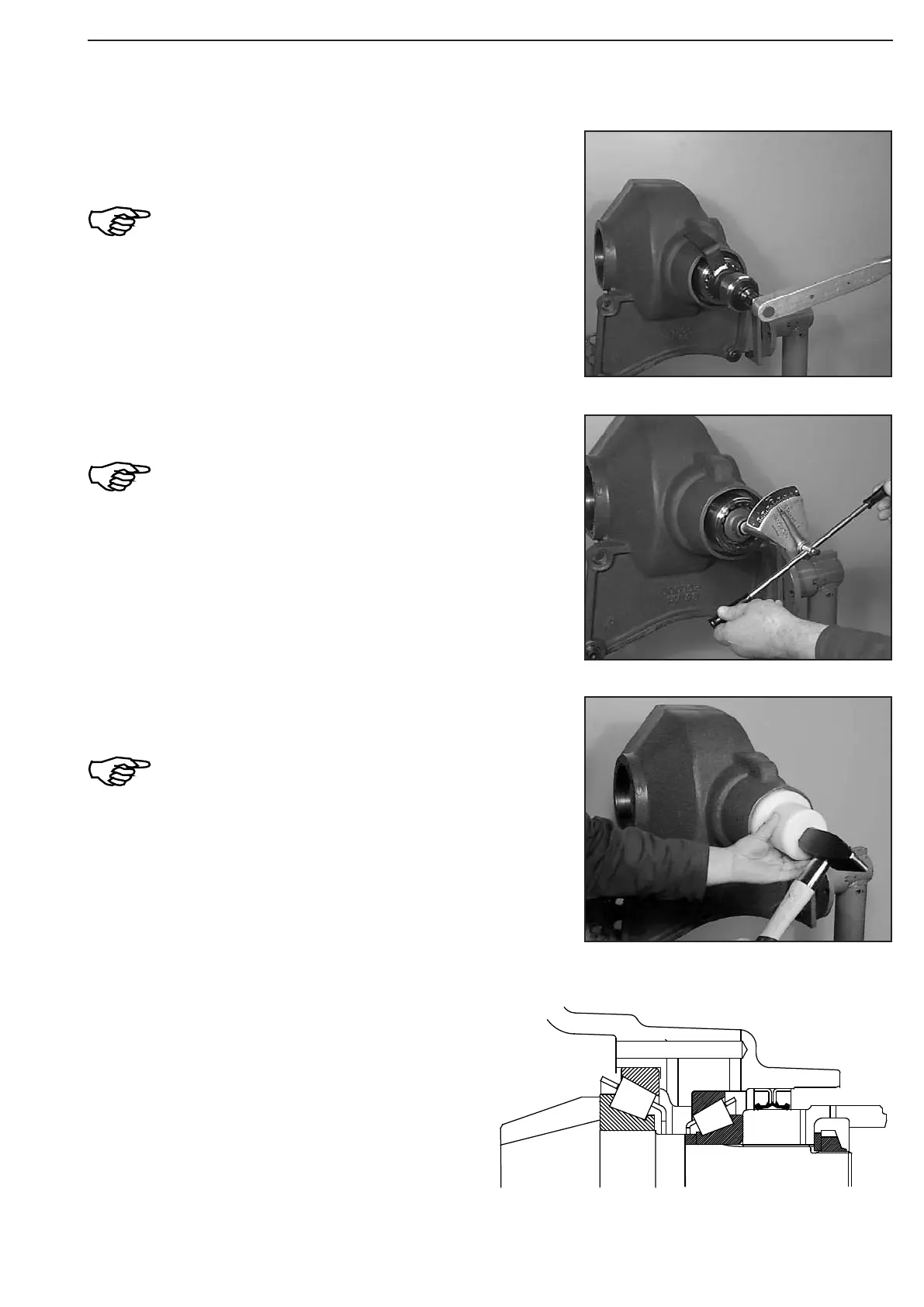

Line up the disk and tighten slotted nut.
Torque limit ...................................... 1200 Nm
During the tightening, rotate the drive pinion
several times in both directions !
(S) Hook spanner 504726
(S) Counter support 504724
(S) Power amplifier 504719
Install both shaft seals.
At application of the prescribed Special tool
(S), the exact installation position is obtained,
see also Figure 590 !
Grease sealing lip !
Wet outer diameter with sealing compound
Loctite (Type-No. 574) !
(S) Driver 504715
Check rolling moment T = 3,5 ... 4,5 Nm.
At deviations from the required rolling
moment, correct with corresponding
adjusting ring (Figure 584) !
Rolling moment too low – install thinner ring!
Rolling moment too high – install thicker ring!
After the performed adjustment of the rolling moment, loosen the
slotted nut again and remove the clutch sleeve.
(S) Torque spanner 504720
(S) Connecting piece 504729
Figure 587
Figure 590
Figure 589
Figure 588
