5-67

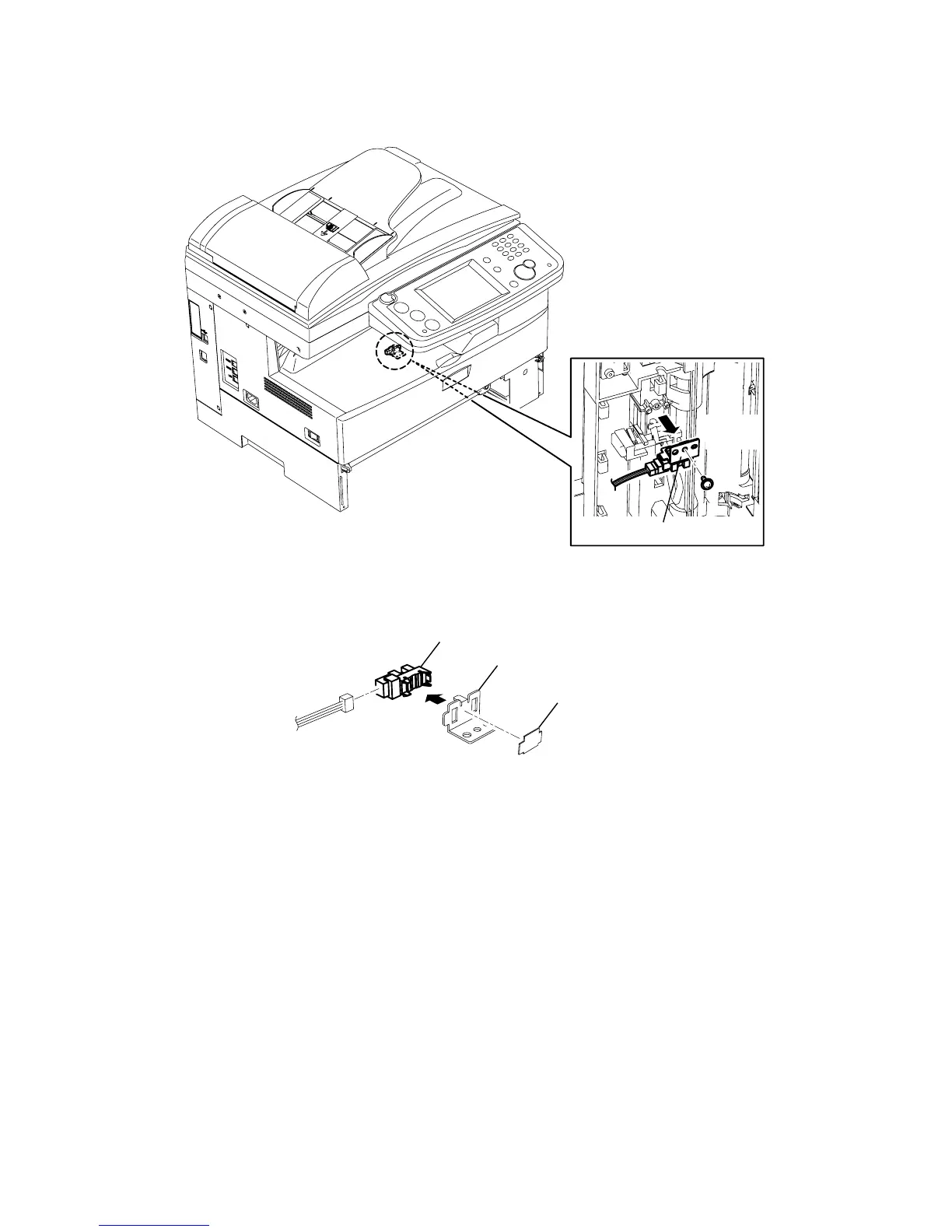

SENSOR PES1
1)
Pull out the Cassette 1st.
2)
Using a short screwdriver, remove the Bracket sensor from the bottom (back) of the body.
Bracket sensor
3)
Remove the Sensor stopper and connector, and then remove the PES1.
PES1
Bracket sensor
Sensor stopper
356
