5-68

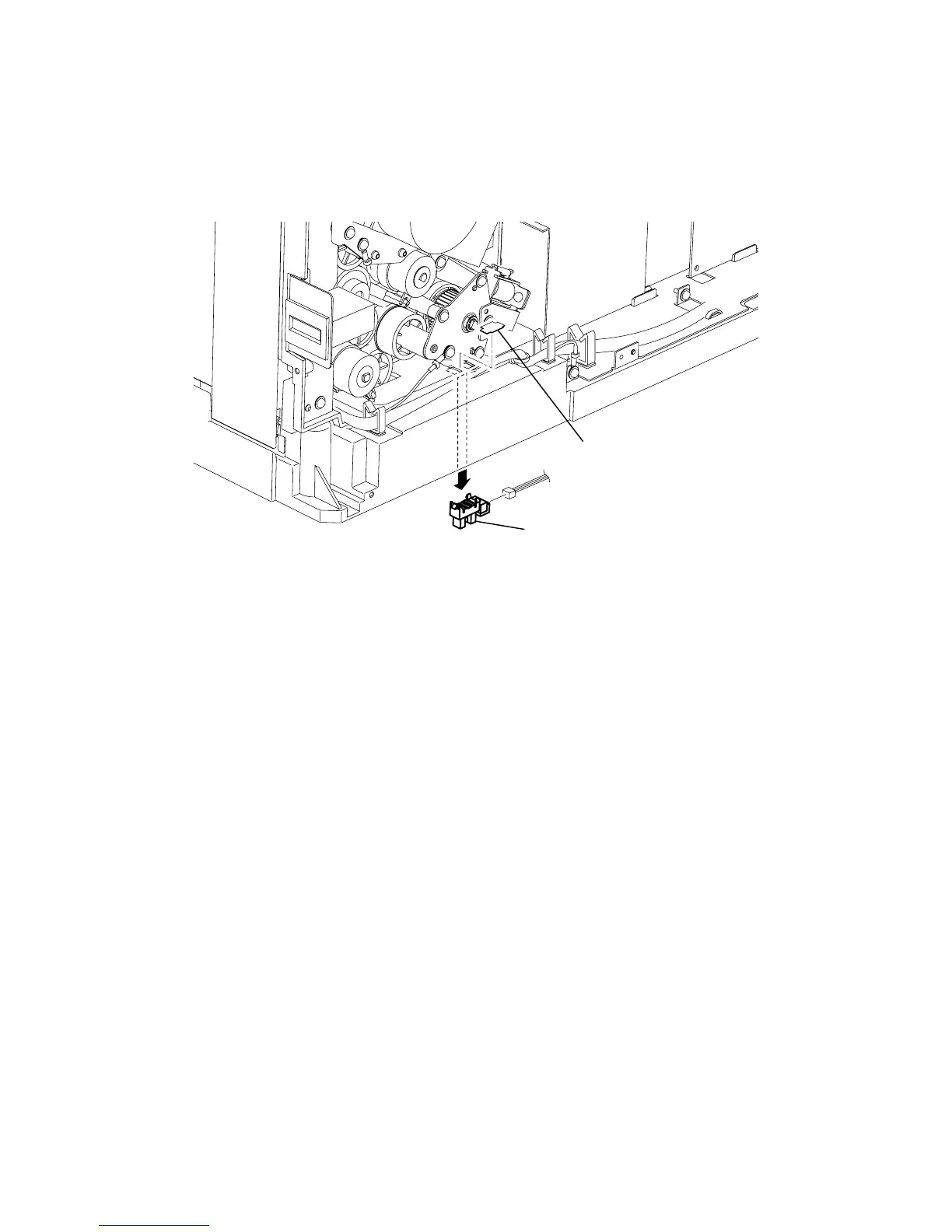

SENSOR OPEN1
1)
Remove the Cover option. (See page 5-21)
2)
Remove the Cover shield. (See page 5-21)
3)
Remove the Cover back. (See page 5-33)
4)
Remove the Sensor stopper.
5)
Disconnect the connector of Sensor, and then remove the Sensor OPEN1.
OPEN1
Sensor stopper
357
359
