5-69
LED
1)
Remove the Chassis FBS. (See page 5-33)
2)
Open the Cover jam access.
3)
Open the Cover front.
4)
Remove the Cover left.
5)
Remove the Tray paper exit.
6)
Remove the Drum cartridge and the case DEV.
7)

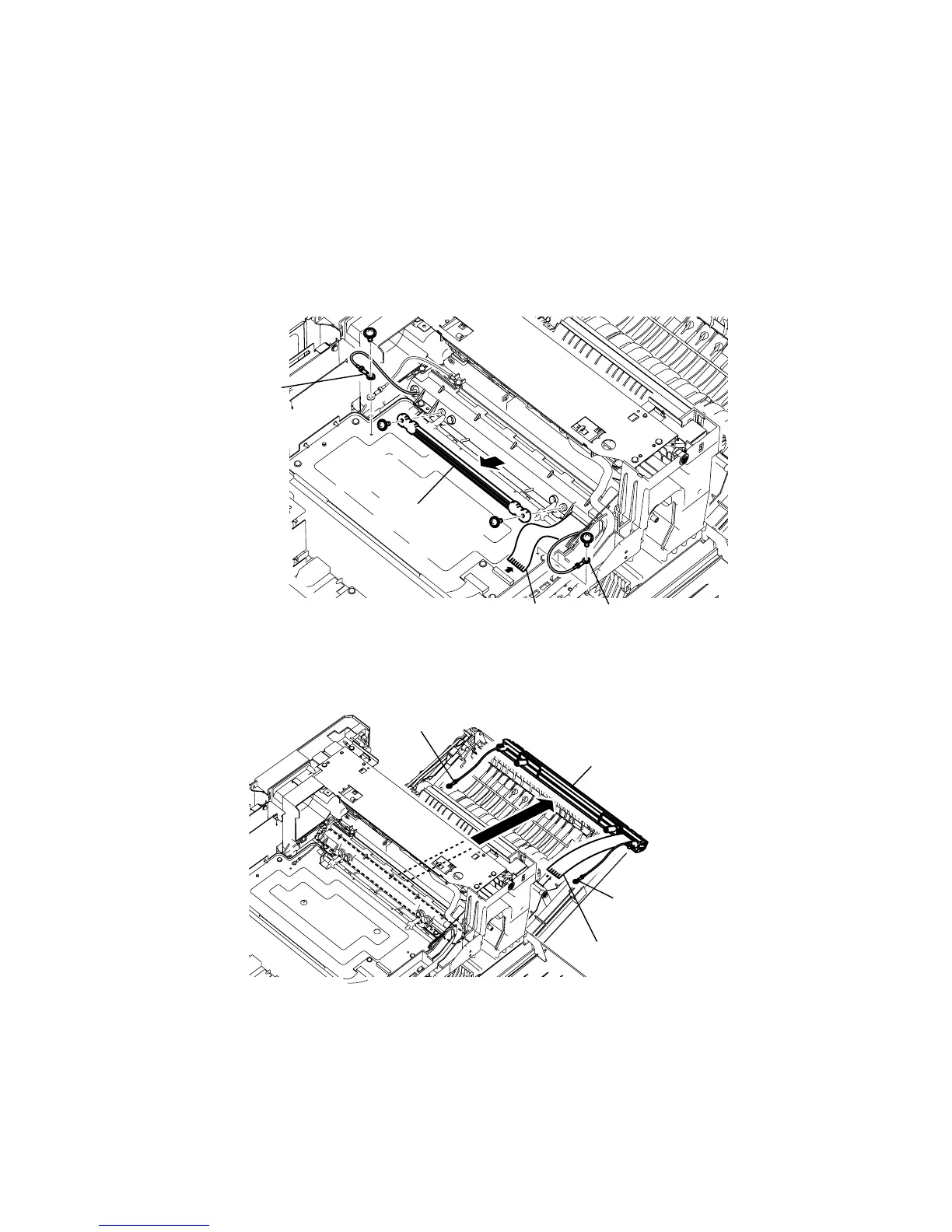

Disconnect the Film harness of the PCB CONNECT C.
8)
Remove two Ground wires.
9)
Remove two Stay LED mounting screws, and then remove the Stay LED.
Note:
When connecting the Film harness, exactly adjust the Contact side.
Ground wire
Ground wire
Film harness
Stay LED
10)
Remove the LED.
LED
Ground wire
Ground wire
Film harness
