NETGEAR FVS318G User Manual

Virtual Private Networking Using IPSec and L2TP Connections
228
NETGEAR ProSAFE VPN Firewall FVS318G v2
• Encryption (IPSec), Default. The default lifetime value is 1200 seconds. Change
this setting to 3600 seconds to match the configuration of the VPN firewall.
9. To use the new settings immediately, click the Apply
button.
10. To keep the settings for future use, click the Save
button.
The VPN client configuration is now complete.
Manually Create a Secure Connection Using the NETGEAR VPN Client
Perform these tasks from a computer on which the NETGEAR ProSafe VPN Client is
installed.
To manually configure a VPN connection between the VPN client and
the VPN firewall,
create authentication settings (phase 1 settings), create an associated IPSec configuration
(phase 2 settings), and specify the global parameters.
Configure the Authentication Settings (Phase 1 Settings)
 To create new authentication settings:

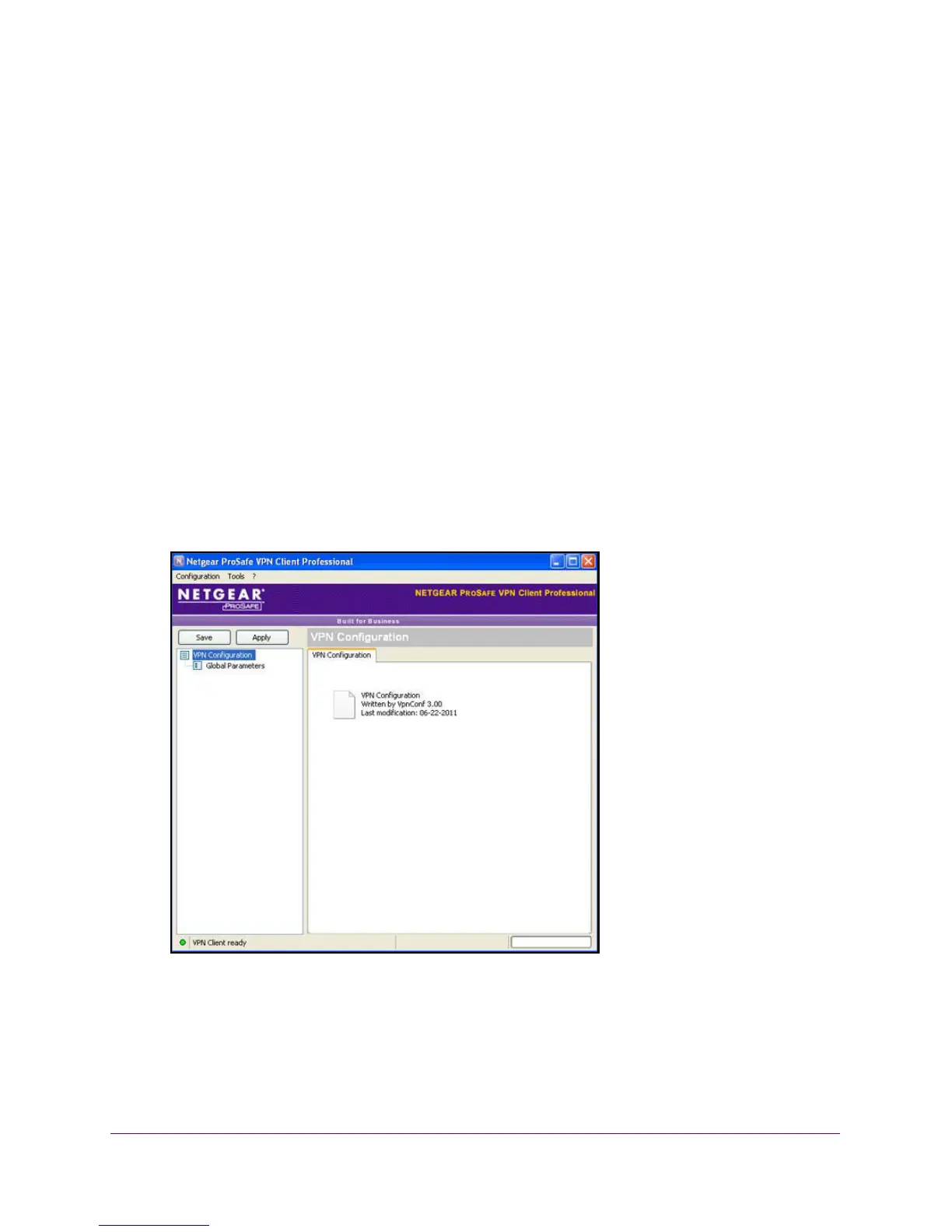

1. Right-click th
e VPN client icon in your Windows system tray, and select Configuration
Panel.

NETGEAR FVS318G Specifications

General

Power requirements	12V DC, 1.5A
Firewall throughput	250 Mbit/s
Maximum data transfer rate	1000 Mbit/s
HTTP performance	6000 transactions/sec
Wi-Fi	No
DHCP server	Yes
Number of VLANs	256
VPN tunnels quantity	12
WAN connection	Ethernet (RJ-45)
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	9
Ethernet DMZ ports quantity	1
Routing protocols	RIP-1, RIP-2
Supported network protocols	TCP/IP, UDP, ICMP, PPPoE
VPN support	IPsec (ESP), IKE, PKI, HTTPS
Security algorithms	128-bit AES, 192-bit AES, 256-bit AES, 3DES, DES, MD5, SHA-1
Internal memory	128 MB
Flash memory	32 MB
Storage media type	Flash
Processor frequency	300 MHz
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Cables included	LAN (RJ-45)

Weight and Dimensions

Weight	590 g
Dimensions (WxDxH)	190 x 125 x 35 mm
