Virtual Private Networking Using IPSec and L2TP Connections
229
NETGEAR ProSAFE VPN Firewall FVS318G v2

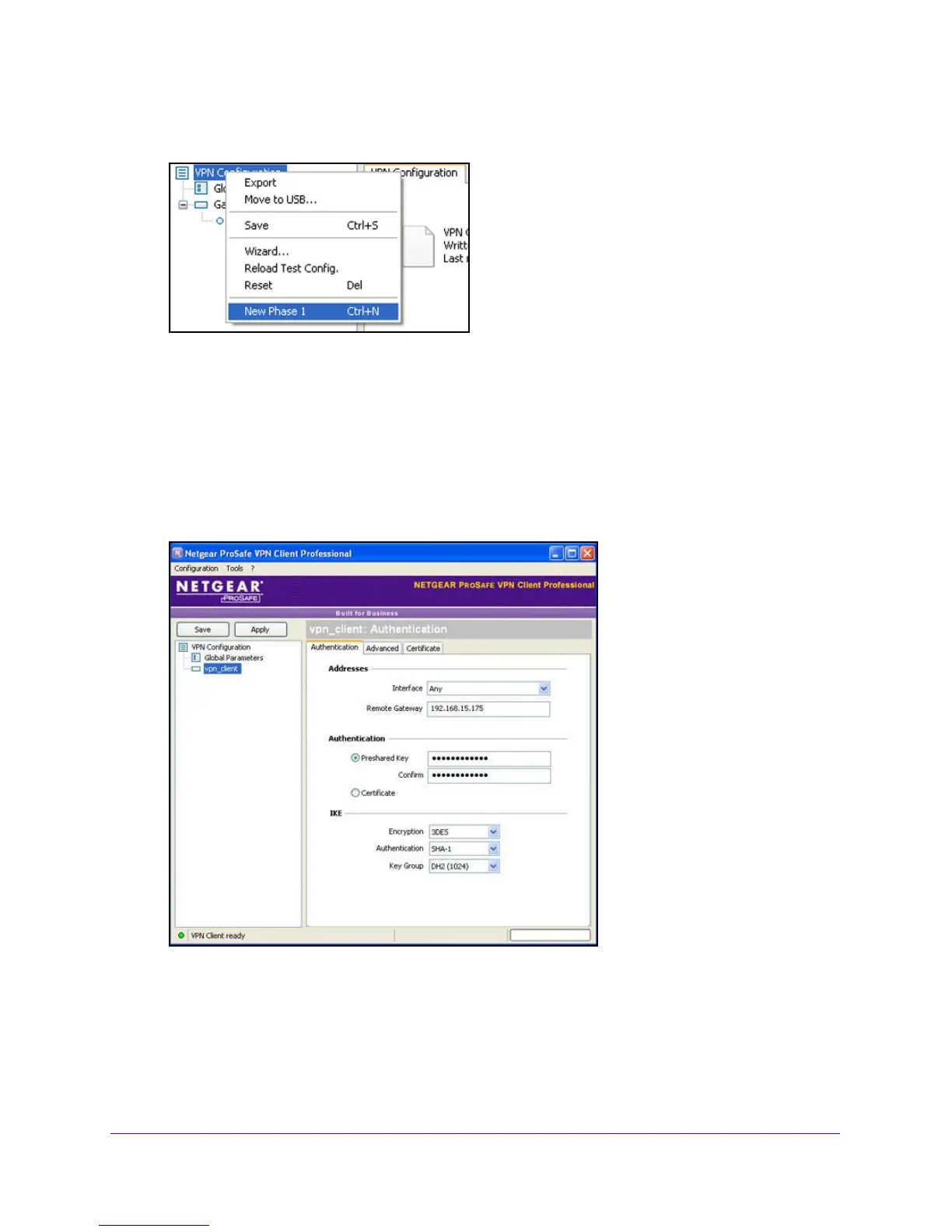

2. In the tree list pane of the Configuration Panel screen, right-click VPN Configuration, and
select New Phase 1.
3. Change the name of the authentication phase (the default is Gateway):
a. Right-click the authentication phase name.
b.
Select Rename.
c. Type vpn_c
lient.
d. Click anywhere in the tree list pane.
T
his is the name for the authentication phase that is used only for the VPN clien
t, not
during IKE negotiation. You can view and change this name in the tree list pane. This
name must be a unique name.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NETGEAR FVS318G and is the answer not in the manual?

NETGEAR FVS318G Specifications

General IconGeneral
Power requirements12V DC, 1.5A
Firewall throughput250 Mbit/s
Maximum data transfer rate1000 Mbit/s
HTTP performance6000 transactions/sec
Wi-FiNo
DHCP serverYes
Number of VLANs256
VPN tunnels quantity12
WAN connectionEthernet (RJ-45)
Connectivity technologyWired
Ethernet LAN (RJ-45) ports9
Ethernet DMZ ports quantity1
Routing protocolsRIP-1, RIP-2
Supported network protocolsTCP/IP, UDP, ICMP, PPPoE
VPN supportIPsec (ESP), IKE, PKI, HTTPS
Security algorithms128-bit AES, 192-bit AES, 256-bit AES, 3DES, DES, MD5, SHA-1
Internal memory128 MB
Flash memory32 MB
Storage media typeFlash
Processor frequency300 MHz
Storage temperature (T-T)-20 - 70 °C
Operating temperature (T-T)0 - 45 °C
Cables includedLAN (RJ-45)
Weight and Dimensions IconWeight and Dimensions
Weight590 g
Dimensions (WxDxH)190 x 125 x 35 mm
