Manage Users, Authentication, and VPN Certificates
297
NETGEAR ProSAFE VPN Firewall FVS318G v2

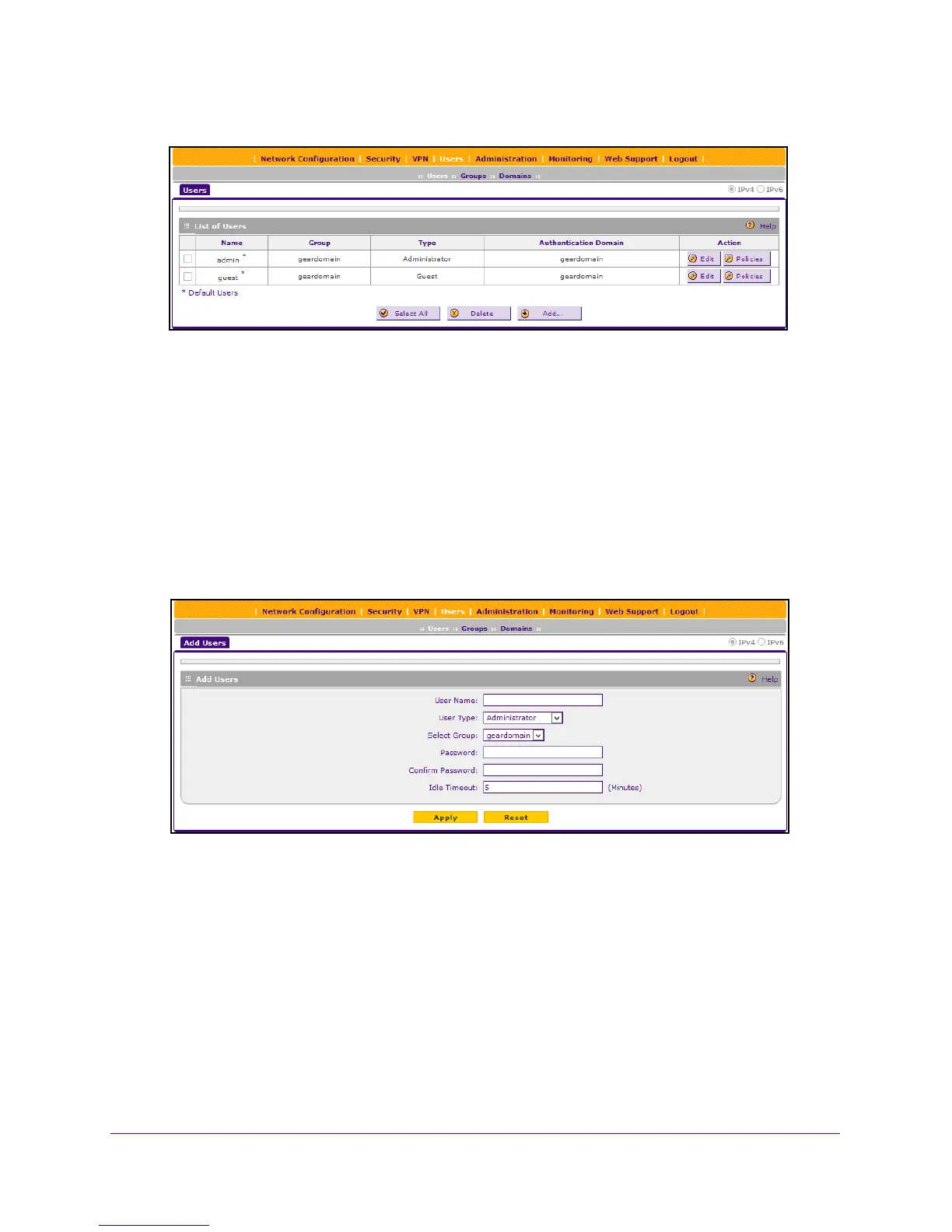

2. Select Users > Users.
The List of Users table displays the users and displays the following fields:
Check box. Allows you
to select the user in the table.
Name. The name of the user. If the user name is appended by an asterisk,
the user is
a default user that is preconfigured on the VPN firewall and cannot be deleted.
Group. The group
to which the user is assigned.
Type. The type o
f access credentials that are assigned to the user.
Authentication Domain. T
he authentication domain to which the user is assigned.
Action. Th
e Edit table button, which provides access to the Edit User screen, and the
Policies table button, which provides access to the policy screens.
3. Under the List of Users table, click the Ad
d table button.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NETGEAR FVS318G and is the answer not in the manual?

NETGEAR FVS318G Specifications

General IconGeneral
Power requirements12V DC, 1.5A
Firewall throughput250 Mbit/s
Maximum data transfer rate1000 Mbit/s
HTTP performance6000 transactions/sec
Wi-FiNo
DHCP serverYes
Number of VLANs256
VPN tunnels quantity12
WAN connectionEthernet (RJ-45)
Connectivity technologyWired
Ethernet LAN (RJ-45) ports9
Ethernet DMZ ports quantity1
Routing protocolsRIP-1, RIP-2
Supported network protocolsTCP/IP, UDP, ICMP, PPPoE
VPN supportIPsec (ESP), IKE, PKI, HTTPS
Security algorithms128-bit AES, 192-bit AES, 256-bit AES, 3DES, DES, MD5, SHA-1
Internal memory128 MB
Flash memory32 MB
Storage media typeFlash
Processor frequency300 MHz
Storage temperature (T-T)-20 - 70 °C
Operating temperature (T-T)0 - 45 °C
Cables includedLAN (RJ-45)
Weight and Dimensions IconWeight and Dimensions
Weight590 g
Dimensions (WxDxH)190 x 125 x 35 mm
