NTM88 family of tire pressure monitor sensors

User manual Rev. 6 — 24 April 2020

154 / 205

10.22.1 SIM reset exit

aaa-031071

Synchronous

Reset?

POR or LVR?

Assert System

Reset signal

Any Reset

Detected?

Reset Control

Idle

yes

nono

POR or LVR

Source asserted?

Second Reset

Time-out Cycle

Done?

Is RESET pin

asserted?

Disable

ICS ouput clock

Enable

ICS ouput clock

Negates System

Reset signal

Reset SIMRS register

First Reset

Time-out Cycle

Done?

Load SIMRS register

Assert System Reset signal

Negates sim_ipp_obe_reset

Reset Control

Idle

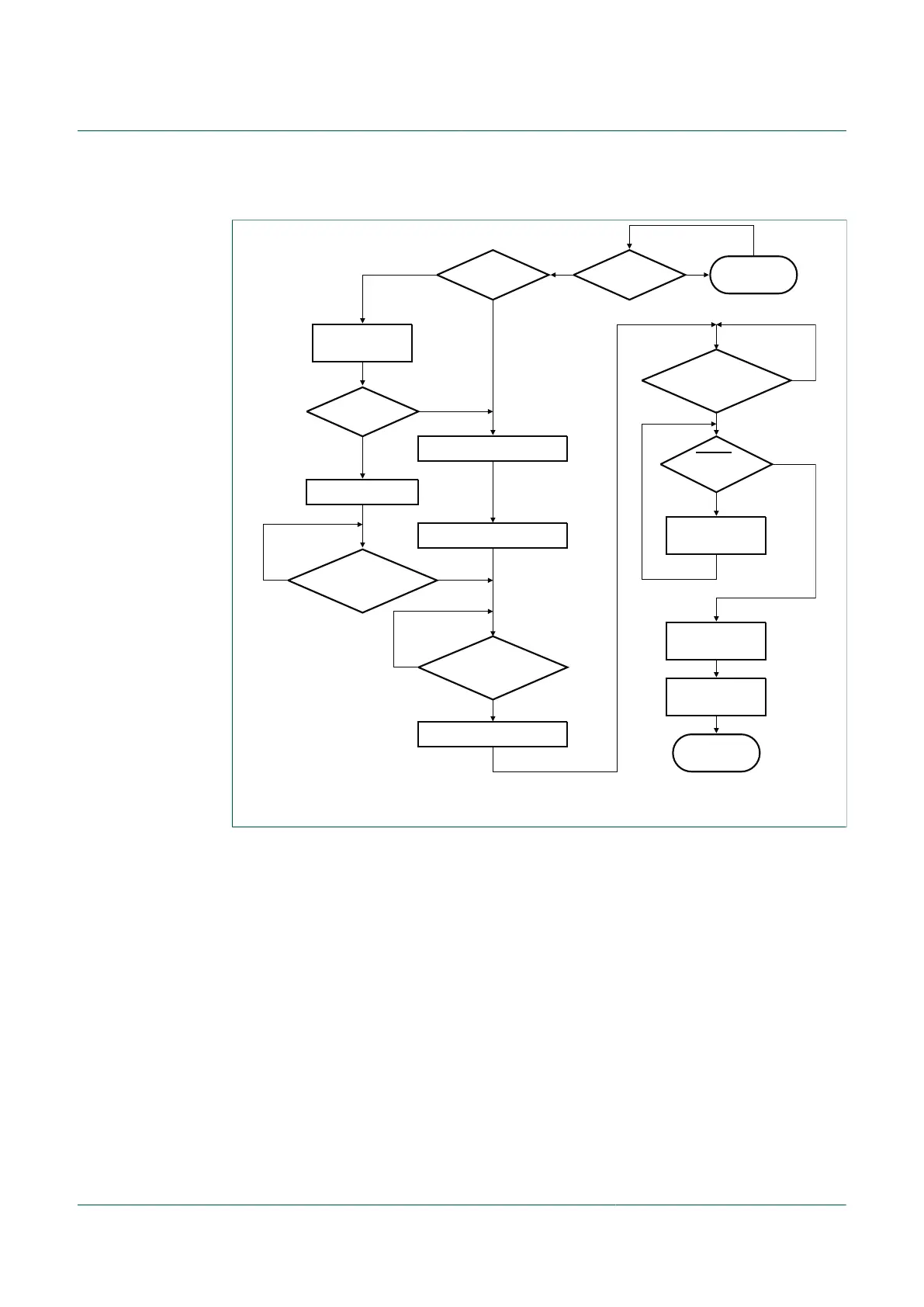

Figure 50. SIM reset exit diagram
